VZN95L-TWSREA6 (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Aug 1993
Engine
3VZE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8808- )VZN120,85,9#..JPP..ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-30010 |
VZN120,85,9#..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
VZN120,85,9#..ATM |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
VZN120,85,9#..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
VZN120,85,9#..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21002 |
VZN120,85,9#..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-35010 |
VZN85,9#..4HC |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35573-35010 |
VZN85,9#..4HC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-30010 |
VZN120,85,9#..ATM |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

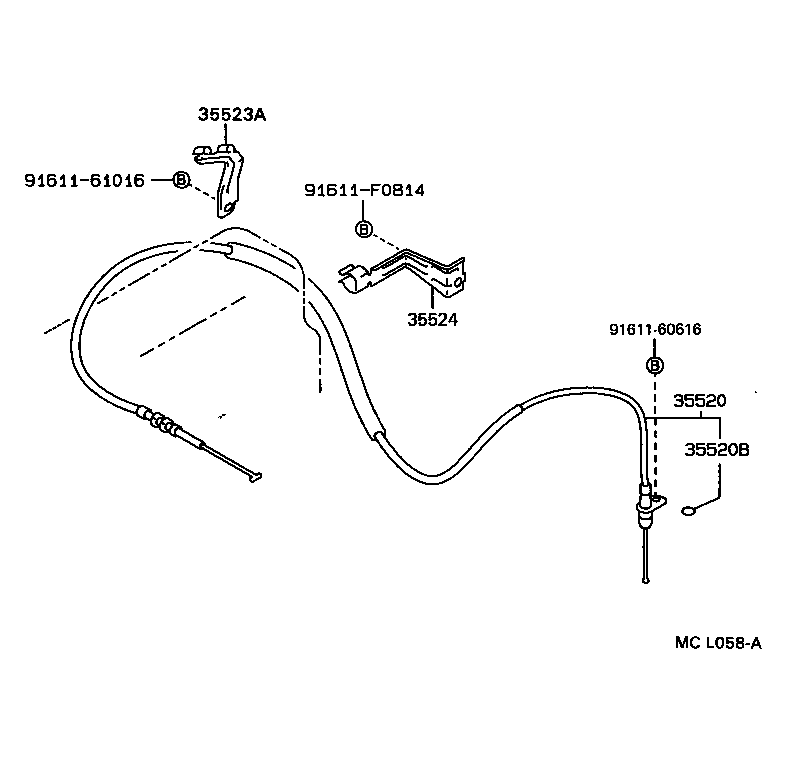

ILLUST NO. 2 OF 2(8808- )VZN120,85,9#..JPP..ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-35050 |
VZN120,85,9#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
RN90..EFI..CND;RN8#,VZN85,9#..ATM |
1 | ||
| 90301-09004 |
RN8#,VZN85,9#..ATM |
1 | ||
| 90301-09012 |
RN12#,90,VZN120,95..ATM |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-35070 |
VZN120,85,9#..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-35060 |
VZN120,85,9#..ATM |
1 | ||
| Common parts | ||||
| 91611-60616 | ||||
| 91611-61016 | ||||
| 91611-F0814 | ||||
