VZN90L-CRMGEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1991
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

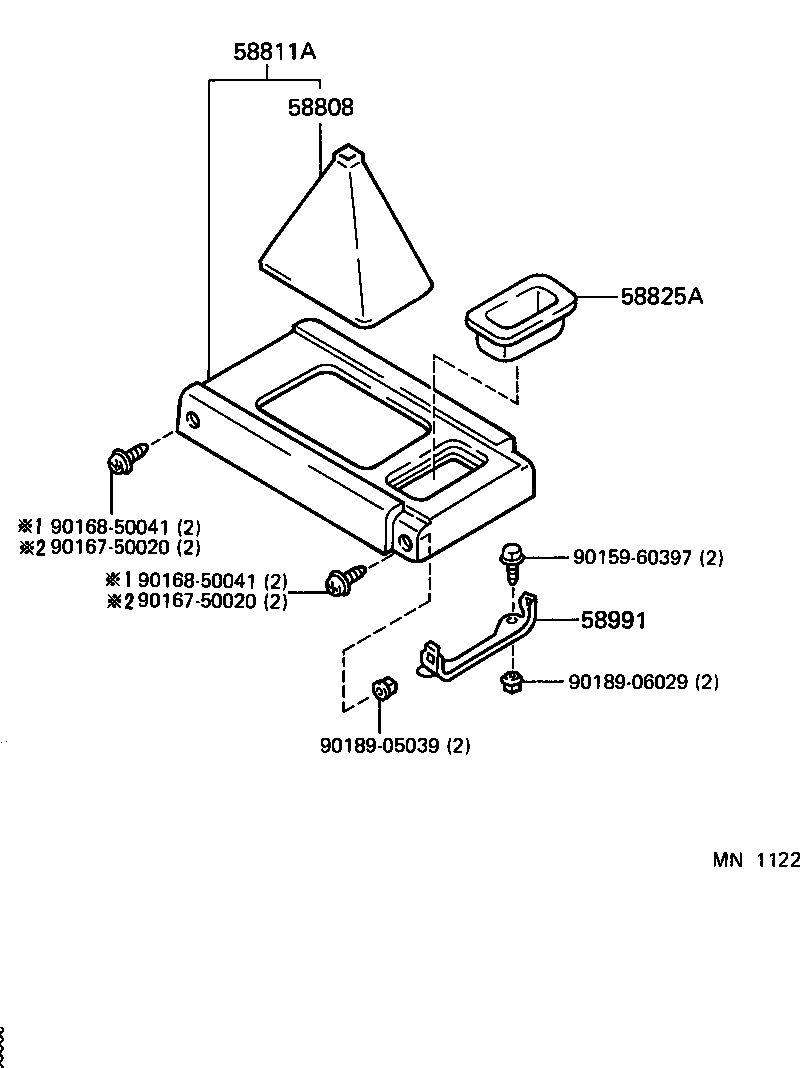

ILLUST NO. 1 OF 2(8908- )JPP..5F..SR5

Click highlighted areas on diagram

diagram 58808 58811A 58825A 58991 9015960397 9016750020 9016750020 9016850041 9016850041 9018905039 9018906029
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-8911403

RN121,85,90,VZN90..5F..SR5

GRAY,TRIM1#

 1
58808-8911404

RN121,85,90,VZN90..5F..SR5

BLUE,TRIM8#

 1
58808-8911406

RN121,85,90,VZN90..5F..SR5

BROWN,TRIM4#

 1
58808-89114E0

RN121,VZN90..5F..SR5

BROWN,TRIM4#

 1
58808-8911402

RN121,85,90,VZN90..5F..SR5

RED,TRIM3#

 1
58811A - BOX, CONSOLE, FRONT
58802-8911403

RN85,90,VZN90..5F..SR5

GRAY,TRIM1#

 1
58802-8911406

RN85,90,VZN90..5F..SR5

BROWN,TRIM4#

 1
58802-8911402

RN121,85,90,VZN90..5F..SR5

RED,TRIM3#

 1
58802-89114E0

RN121,VZN90..5F..SR5

BROWN,TRIM4#

 1
58802-8911403

RN121,85,90,VZN90..5F..SR5

GRAY,TRIM1#

 1
58802-8911404

RN121,85,90,VZN90..5F..SR5

BLUE,TRIM8#

 1
58802-8911406

RN121,85,90,VZN90..5F..SR5

BROWN,TRIM4#

 1
58802-8911404

RN85,90,VZN90..5F..SR5

BLUE,TRIM8#

 1
58825A - POCKET, CONSOLE BOX
58825-8911103

RN121,85,90,VZN90..5F..SR5

GRAY,TRIM1#

 1
58825-89111E0

RN121,VZN90..5F..SR5

BROWN,TRIM4#

 1
58825-8911104

RN121,85,90,VZN90..5F..SR5

BLUE,TRIM8#

 1
58825-8911106

RN121,85,90,VZN90..5F..SR5

BROWN,TRIM4#

 1
58825-8911102

RN121,85,90,VZN90..5F..SR5

RED,TRIM3#

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-89103

RN12#,85,90,VZN120,90..(4FC,5F)..SR5

 1
Common parts
90159-60397
90167-50020
90168-50041
90189-05039
90189-06029

ILLUST NO. 2 OF 2(8808- )VZN120,90..JPP..SR5

Click highlighted areas on diagram

diagram 55539A 58804A 58825B 58827B 58901A 58905 58907 58916 58919B 58919B 58959B 58959B 58964 58964 58969A 58976 58976 9011906126 9011906428 9017604015 9020104317 9356714512 9356754512 9356754512 9356754512 9616000500
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-8910103

RN12#,VZN120,90..SR5

GRAY,TRIM1#

 1
58804-35010E0

RN12#,VZN120,90..SR5

BROWN,TRIM4#

 1
58804-35010D0

RN12#,VZN120,90..SR5

RED,TRIM3#

 1
58804-8910106

RN12#,VZN120,90..SR5

BROWN,TRIM4#

 1
58804-8910104

RN12#,VZN120,90..SR5

BLUE,TRIM8#

 1
58804-8910102

RN12#,VZN120,90..SR5

RED,TRIM3#

 1
58825B - POCKET, CONSOLE BOX
58825-8910906

VZN90..SR5

BROWN,TRIM4#

 1
58825-8910902

VZN90..SR5

RED,TRIM3#

 1
58825-89109E0

VZN90..SR5

BROWN,TRIM4#

 1
58825-8910903

VZN90..SR5

GRAY,TRIM1#

 1
58825-8910904

VZN90..SR5

BLUE,TRIM8#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-8912604

VZN90..SR5

BLUE,TRIM8#

 1
58901-8912606

VZN90..SR5

BROWN,TRIM4#

 1
58901-8912603

VZN90..SR5

GRAY,TRIM1#

 1
58901-8912602

VZN90..SR5

RED,TRIM3#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-8910306

VZN120,90..SR5

BROWN,TRIM4#

 1
58905-8910302

VZN120,90..SR5

RED,TRIM3#

 1
58905-8910303

VZN120,90..SR5

GRAY,TRIM1#

 1
58905-8910304

VZN120,90..SR5

BLUE,TRIM8#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-89102

RN120,VZN120,90..SR5

 1
58916 - MAT, BOX BOTTOM
58916-89101

RN120,VZN120,90..SR5

 1
58919B - PLATE, CONSOLE BOX
58919-89102

VZN120,90..SR5

 2
58919B - PLATE, CONSOLE BOX
58919-89102

VZN120,90..SR5

 2
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-89101

VZN120,90..SR5

 4
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-89101

VZN120,90..SR5

 4
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-90K00

RN12#,VZN120,90..SR5

RH

 1
58964-30040

RN12#,VZN120,90..SR5

LH

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-90K00

RN12#,VZN120,90..SR5

RH

 1
58964-30040

RN12#,VZN120,90..SR5

LH

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

RN120,VZN120,90..SR5

 2
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

VZN120,90..SR5

 2
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

VZN120,90..SR5

 2
Common parts
90119-06126
90119-06428
90176-04015
90201-04317
93567-14512
93567-54512
96160-00500
