VZN85L-TWSREA6 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1993
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9308)JPP..WT

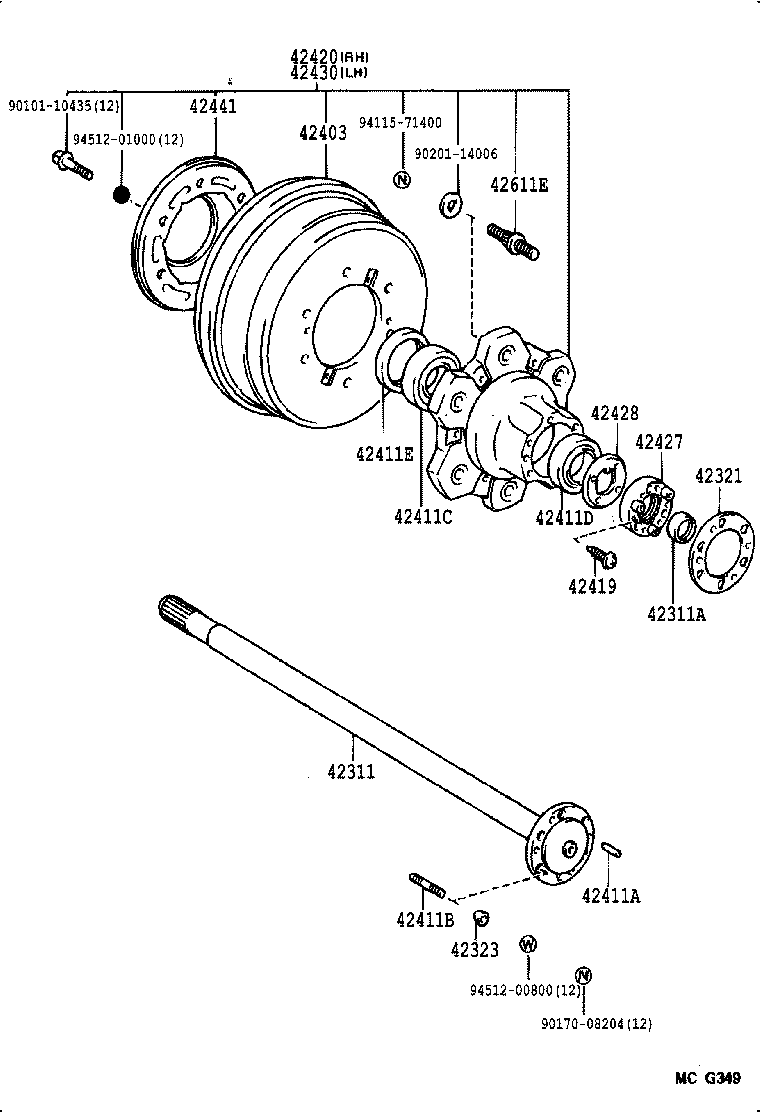

Click highlighted areas on diagram

diagram 42311 42311A 42321 42323 42403 42411A 42411B 42411C 42411D 42411E 42419 42420 42427 42428 42430 42441 42611E 9010110435 9017008204 9020114006 9411571400 9451200800 9451201000
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35170

RN80..4F;VZN85,90..ST

 2
42311-35130

VZN85,95..WT

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50001

VZN85..ST;RN12#,8#,90,VZN120,90

 2
90310-35001

VZN85,95..WT

 2
42321 - GASKET, REAR AXLE SHAFT
43422-35010

VZN85,95..WT

 2
43422-60040

VZN85,95

 2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-60010

VZN85,95..WT

 12
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35190

VZN85..10T;VZN85..ST..IV6

 2
42431-35100

VZN85,95..WT

 2
42411A - PIN, STRAIGHT (FOR REAR AXLE HUB)
90250-07057

VZN85,95..WT

 4
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-08325

VZN85,95..WT

 12
42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
90368-49084

VZN85,95..WT

 4
90368-49084

VZN85,95..IV6

 2
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-45087

VZN85,95..WT

 2
42411E - SEAL, OIL (FOR REAR AXLE HUB)
90311-62001

VZN85,95..WT

 2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
42419-60011

VZN85,95..WT

 4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-35250

VZN85,95..WT

 1
42427 - NUT, REAR AXLE BEARING LOCK
42427-60021

VZN85,95..WT

 2
42428 - PLATE, REAR AXLE LOCK NUT
42428-60011

VZN85,95..WT

 2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42420-35250

VZN85,95..WT

 1
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-26010

RN8#,90,VZN85,90..ST

 2
42441-35040

VZN85,95..WT

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02049

RN8#,90,VZN85,90..ST

 10
90942-02066

VZN85,95..WT

 12
Common parts
90101-10435
90170-08204
90201-14006
94115-71400
94512-00800
94512-01000

(8808-9511)VZN85..JPP..ST ; (8808-9511)RN12#,8#,90,VZN120,90..JPP

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42421 42423 42424A 42441 42443 42444R 42611E 43517
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35170

RN80..4F;VZN85,90..ST

 2
42311-35130

VZN85,95..WT

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50001

VZN85..ST;RN12#,8#,90,VZN120,90

 2
90310-35001

VZN85,95..WT

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40020

VZN85..ST;RN12#,8#,90,VZN120,90

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-36045

VZN85..ST;RN12#,8#,90,VZN120,90

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48001

VZN85..ST;RN12#,8#,90,VZN120,90

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35190

VZN85..10T;VZN85..ST..IV6

 2
42431-35100

VZN85,95..WT

 2
42421 - CASE, REAR AXLE BEARING
42421-35030

VZN85..ST;RN12#,8#,90,VZN120,90

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-20010

VZN85..ST;RN12#,8#,90,VZN120,90

 2
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

VZN85..ST;RN12#,8#,90,VZN120,90

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-26010

RN8#,90,VZN85,90..ST

 2
42441-35040

VZN85,95..WT

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-30010

RN8#,90,VZN85,90..ST

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35070

RN8#,90,VZN85,90..ST

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02049

RN8#,90,VZN85,90..ST

 10
90942-02066

VZN85,95..WT

 12
