VZN131L-RKPGEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Nov 1995
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )VZN13#

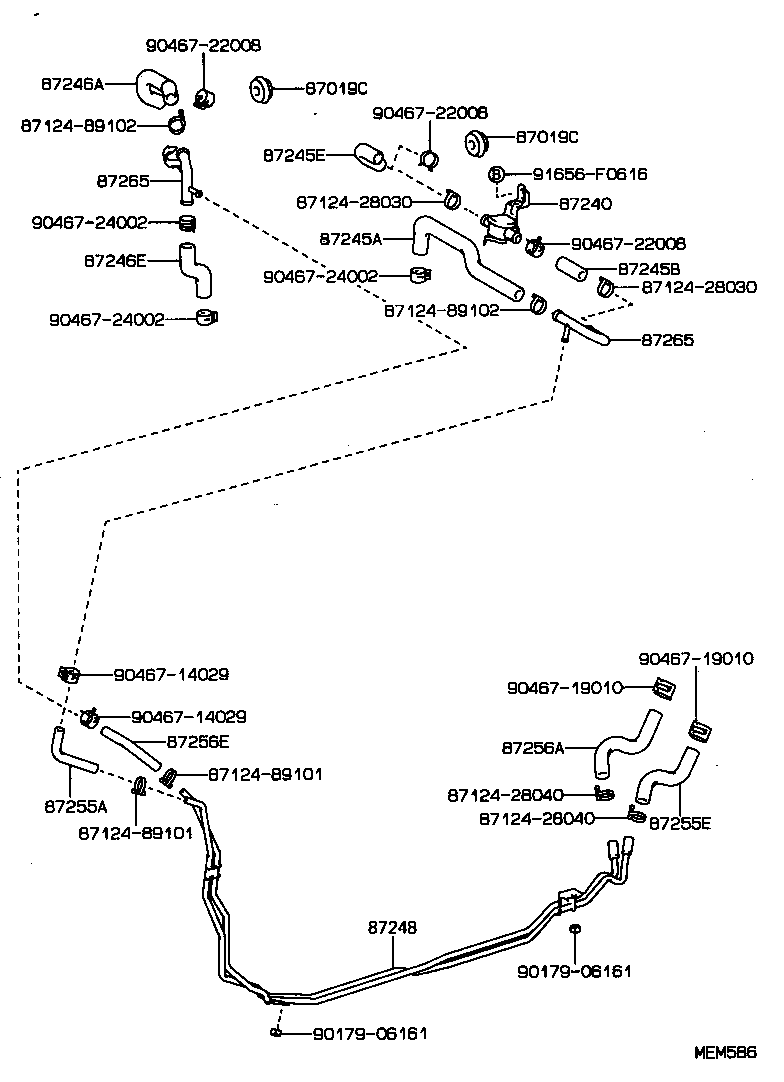

Click highlighted areas on diagram

W(REAR HEATER)

diagram 87019C 87019C 8712428030 8712428030 8712428040 8712428040 8712489101 8712489101 8712489102 8712489102 87240 87245A 87245B 87245E 87246A 87246E 87248 87255A 87255E 87256A 87256E 87265 87265 9017906161 9017906161 9046714029 9046714029 9046719010 9046719010 9046722008 9046722008 9046722008 9046724002 9046724002 9046724002 91656F0616
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN10#,110,13#,VZN10#,110,13#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89259

VZN131

 1
87245-35060

VZN131

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89258

VZN13#

 1
87245-35110

VZN13#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN10#,110,13#,VZN10#,110,13#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89260

VZN10#,110,13#

 1
87245-89260

VZN131

 1
87245-35100

VZN10#,110,13#

DELETE

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89273

VZN131

 1
87245-89273

VZN10#,110,13#

 1
87245-35090

VZN10#,110,13#

DELETE

 1
87248 - PIPE SUB-ASSY, WATER
87248-89130

VZN13#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-89248

VZN13#

 1
87245-35080

VZN13#

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-89246

RN13#,VZN13#

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-89247

RN13#,VZN13#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-89249

VZN13#

 1
87245-35120

VZN13#

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-89108

VZN131

W(RR HEATER),INLET

 1
87265-89108

VZN131

W(RR HEATER),INLET

 1
87265-89109

VZN131

W(RR HEATER),OUTLET

 1
87265-89109

VZN131

W(RR HEATER),OUTLET

 1
87265-35160

VZN131

W(RR HEATER),OUTLET

 1
87265-35040

VZN131

W(RR HEATER),OUTLET

 1
87265-89108

VZN131

 1
87265-35050

VZN131

W(RR HEATER),INLET

 1
87265-35170

VZN131

W(RR HEATER),INLFT

 1
87265-35170

VZN131

INLET

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-89108

VZN131

W(RR HEATER),INLET

 1
87265-89108

VZN131

W(RR HEATER),INLET

 1
87265-89109

VZN131

W(RR HEATER),OUTLET

 1
87265-89109

VZN131

W(RR HEATER),OUTLET

 1
87265-35160

VZN131

W(RR HEATER),OUTLET

 1
87265-35040

VZN131

W(RR HEATER),OUTLET

 1
87265-89108

VZN131

 1
87265-35050

VZN131

W(RR HEATER),INLET

 1
87265-35170

VZN131

W(RR HEATER),INLFT

 1
87265-35170

VZN131

INLET

 1
Common parts
87124-28030
87124-28040
87124-89101
87124-89102
90179-06161
90467-14029
90467-19010
90467-22008
90467-24002
91656-F0616
