VZN130L-GKMGEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Nov 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9511)RN13#,VZN13#

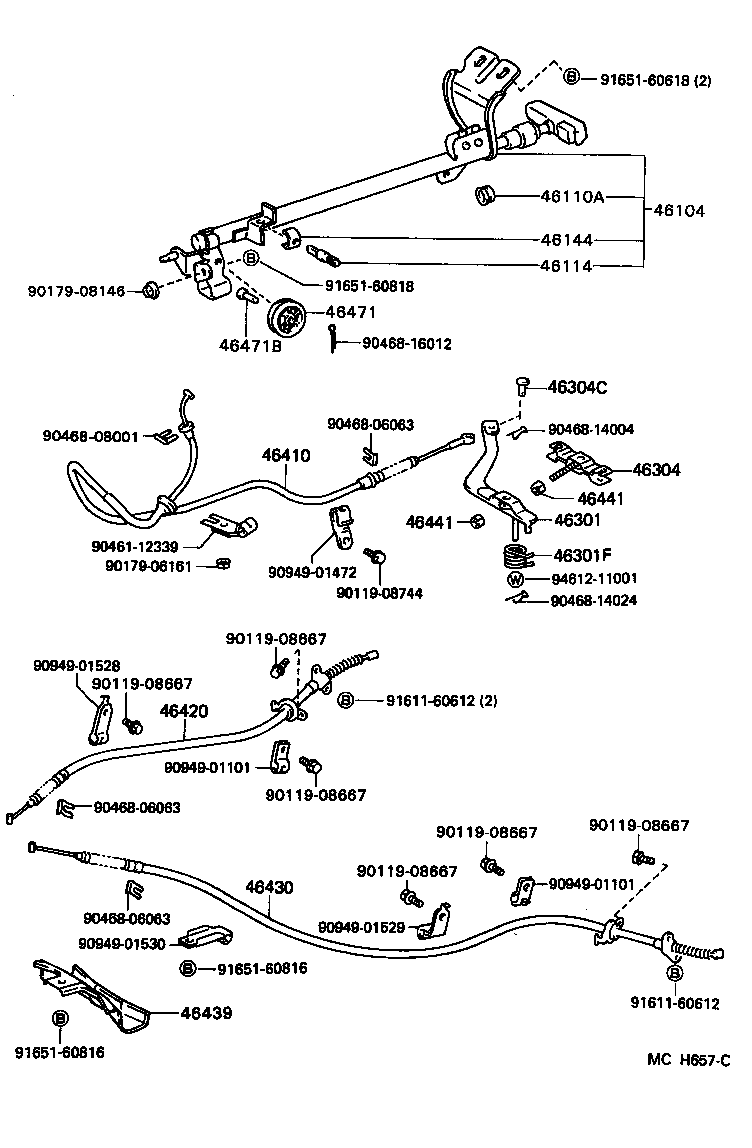

Click highlighted areas on diagram

diagram 46104 46110A 46114 46144 46301 46301F 46304 46304C 46410 46420 46430 46439 46441 46441 46471 46471B 9011908667 9011908667 9011908667 9011908667 9011908667 9011908667 9011908744 9017906161 9017908146 9046112339 9046806063 9046806063 9046806063 9046808001 9046814004 9046814024 9046816012 9094901101 9094901101 9094901472 9094901528 9094901529 9094901530 9161160612 9161160612 9165160618 9165160816 9165160816 9165160818 9461211001
Part # Description Qty Price
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-35010

RN10#,110,13#,VZN10#,110,13#

 1
46104-35030

RN10#,110,13#,VZN100,110,13#

 1
46104-35030

RN10#,110,13#,VZN110,13#

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195

RN10#,110,13#,VZN10#,110,13#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

RN10#,110,13#,VZN10#,110,13#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

RN10#,110,13#,VZN10#,110,13#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35210

RN13#,VZN13#

 1
46301-35220

RN13#,VZN13#

 1
46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90508-38002

RN13#,VZN13#

 1
90508-35033

RN13#,VZN13#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-35010

RN13#,VZN13#

 1
46304C - PIN(FOR PARKING BRAKE EQUALIZER)
90240-08040

RN10#,110,13#,VZN10#,110,13#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35650

RN13#,VZN13#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35520

RN13#,VZN13#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35400

RN13#,VZN13#

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-35031

RN13#,VZN13#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

RN10#,110,13#,VZN10#,110,13#

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

RN10#,110,13#,VZN10#,110,13#

 2
46471 - PULLEY, WIRE
46471-20010

RN10#,110,13#,VZN10#,110,13#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90119-08667
90119-08744
90179-06161
90179-08146
90461-12339
90468-06063
90468-08001
90468-14004
90468-14024
90468-16012
90949-01101
90949-01472
90949-01528
90949-01529
90949-01530
91611-60612
91651-60618
91651-60816
91651-60818
94612-11001
