VZN110L-CRPDEA (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 1 OF 2(8808-9511)RN10#,110,VZN10#,110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35090 |
RN10#,110,VZN10#,110 |
2 | ||
| 04483-35060 |
RN10#,110,VZN10#,110 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35170 |
RN110,VZN110 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14008 |
RN110,VZN110 L=155 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35170 |
RN110,VZN110 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18012 |
RN10#,110,VZN10#,110 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18012 |
RN10#,110,VZN10#,110 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35120 |
RN110,VZN110 |
2 | ||
| 48306-35170 |
RN110,VZN110 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-35020 |
RN10#,110,VZN10#,110 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-35120 |
RN10#,110,VZN10#,110 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-35050 |
RN10#,110,VZN10#,110 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-35070 |
RN10#,110,VZN10#,110 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35040 |
RN10#,110,VZN10#,110 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35010 |
RN10#,110,VZN10#,110 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80064 |
RN10#,110 |
1 | ||
| 48531-80066 |
RN10#,110 W(GAS SHOCK ABSORBER) |
1 | ||
| 48531-80066 |
VZN10#,110 |
1 | ||
| 48531-80415 |
VZN10#,110 |
1 | ||
| 48531-80116 |
VZN10#,110 |
1 | ||
| 48531-80415 |
RN10#,110 W(GAS SHOCK ABSORBER) |
1 | ||
| 48531-80414 |
RN10#,110 |
1 | ||
| 48531-80521 |
VZN10#,110 |
1 | ||
| 48531-80521 |
RN10#,110 W(GAS SHOCK ABSORBER) |
1 | ||
| 48531-80116 |
RN10#,110 W(GAS SHOCK ABSORBER) |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
VZN10#,110 |
8 | ||
| 90385-19002 |
RN10#,110 |
8 | ||
| 90385-19004 |
RN10#,110 W(GAS SHOCK ABSORBER) |
8 | ||
| 90385-19002 |
RN10#,110,VZN10#,110 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
VZN10#,110 |
8 | ||
| 90385-19002 |
RN10#,110 |
8 | ||
| 90385-19004 |
RN10#,110 W(GAS SHOCK ABSORBER) |
8 | ||
| 90385-19002 |
RN10#,110,VZN10#,110 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
VZN10#,110 |
8 | ||
| 90385-19002 |
RN10#,110 |
8 | ||
| 90385-19004 |
RN10#,110 W(GAS SHOCK ABSORBER) |
8 | ||
| 90385-19002 |
RN10#,110,VZN10#,110 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
VZN10#,110 |
8 | ||
| 90385-19002 |
RN10#,110 |
8 | ||
| 90385-19004 |
RN10#,110 W(GAS SHOCK ABSORBER) |
8 | ||
| 90385-19002 |
RN10#,110,VZN10#,110 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03015 |
RN10#,110,VZN10#,110 |
2 | ||
| 90948-03020 |
RN10#,110,VZN10#,110 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
RN10#,110,VZN10#,110 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03011 |
RN10#,110,VZN10#,110 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03020 |
RN10#,110,VZN10#,110 |
2 | ||
| 90948-03015 |
RN10#,110,VZN10#,110 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-39135 |
RN10#,110 W(GAS SHOCK ABSORBER) |
1 | ||
| 48541-39135 |
VZN10#,110 |
1 | ||
| 48541-39125 |
RN10#,110 |
1 | ||
| 48541-39165 |
RN10#,110 W(GAS SHOCK ABSORBER) |
1 | ||
| 48541-39155 |
RN10#,110 |
1 | ||
| 48541-39245 |
VZN10#,110 |
1 | ||
| 48541-39165 |
VZN10#,110 |
1 | ||
| 48541-39245 |
RN10#,110 W(GAS SHOCK ABSORBER) |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90179-14019 | ||||
| 90179-14039 | ||||
| 90201-14005 | ||||
| 90201-15012 | ||||
| 91619-G1220 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

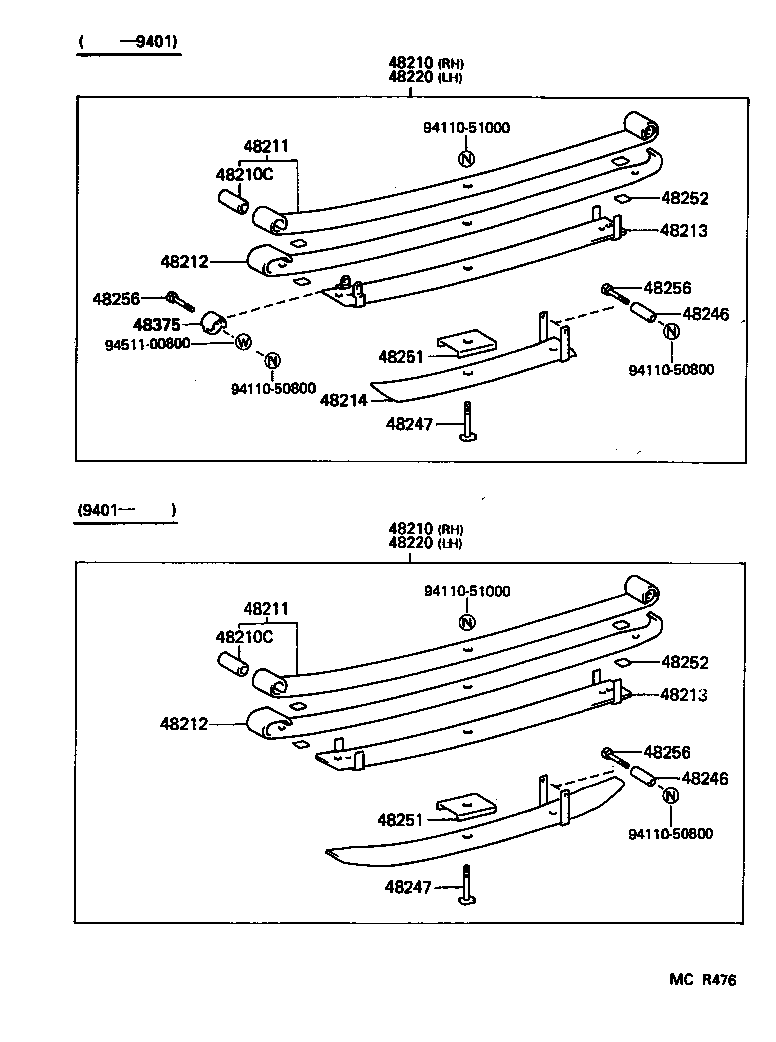

ILLUST NO. 2 OF 2(8808-9511)RN110,VZN110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35700 |
RN110,VZN110 |
1 | ||
| 48210-35701 |
RN110,VZN110 4-LEAF |
1 | ||
| 48210-35702 |
RN110,VZN110 4-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35700 |
RN110,VZN110 |
1 | ||
| 48210-35701 |
RN110,VZN110 4-LEAF |
1 | ||
| 48210-35702 |
RN110,VZN110 4-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14036 |
RN10#,110,VZN10#,110 |
4 | ||
| 90389-14004 |
RN10#,110,VZN10#,110 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14036 |
RN10#,110,VZN10#,110 |
4 | ||
| 90389-14004 |
RN10#,110,VZN10#,110 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35701 |
RN110,VZN110 |
2 | ||
| 48201-35700 |
RN110,VZN110 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35701 |
RN110,VZN110 |
2 | ||
| 48201-35700 |
RN110,VZN110 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35700 |
RN110,VZN110 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35700 |
RN110,VZN110 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35701 |
RN110,VZN110 |
2 | ||
| 48202-35700 |
RN110,VZN110 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35701 |
RN110,VZN110 |
2 | ||
| 48202-35700 |
RN110,VZN110 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35700 |
RN110,VZN110 |
2 | ||
| 48203-35701 |
RN110,VZN110 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35700 |
RN110,VZN110 |
1 | ||
| 48210-35702 |
RN110,VZN110 4-LEAF |
1 | ||
| 48210-35701 |
RN110,VZN110 4-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35700 |
RN110,VZN110 |
1 | ||
| 48210-35702 |
RN110,VZN110 4-LEAF |
1 | ||
| 48210-35701 |
RN110,VZN110 4-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
RN110,VZN110 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
RN110,VZN110 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35440 |
RN110,VZN110 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35440 |
RN110,VZN110 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-35350 |
RN110,VZN110 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-35350 |
RN110,VZN110 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RN10#,110,VZN10#,110 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RN10#,110,VZN10#,110 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
RN110,VZN110 RR |
2 | ||
| 48256-36570 |
RN110,VZN110 |
2 | ||
| 48256-35360 |
RN110,VZN110 FR |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
RN110,VZN110 RR |
2 | ||
| 48256-36570 |
RN110,VZN110 |
2 | ||
| 48256-35360 |
RN110,VZN110 FR |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
RN110,VZN110 RR |
2 | ||
| 48256-36570 |
RN110,VZN110 |
2 | ||
| 48256-35360 |
RN110,VZN110 FR |
2 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
RN10#,110,VZN10#,110 |
2 | ||
| Common parts | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94511-00800 | ||||
