RN90L-CRSSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN12#,8#,90..JPP..ATM

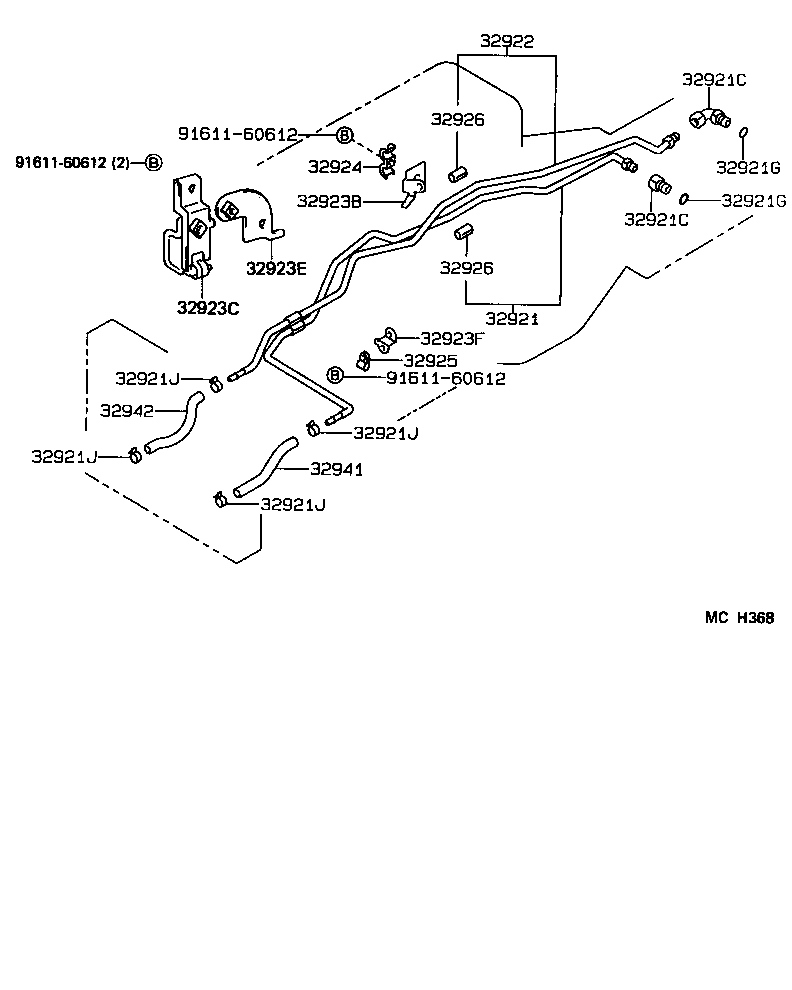

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921G 32921G 32921J 32921J 32921J 32921J 32922 32923B 32923C 32923E 32923F 32924 32925 32926 32926 32941 32942 9161160612 9161160612 9161160612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-35201

VZN120,85,9#..ATM

 1
32921-35200

VZN120,85,9#..ATM

 1
32921-35120

RN8#,90..4HC

 1
32921-35180

RN8#,90..4HC

TOWING PACKAGE

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16008

VZN85,9#..ATM

 1
90407-16010

RN12#,8#,90..ATM

OUTLET

 1
90404-16021

RN12#,8#,90..ATM

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16008

VZN85,9#..ATM

 1
90407-16010

RN12#,8#,90..ATM

OUTLET

 1
90404-16021

RN12#,8#,90..ATM

INLET

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

RN12#,8#,90..ATM

 2
90301-11006

VZN120,85,9#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

RN12#,8#,90..ATM

 2
90301-11006

VZN120,85,9#..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-35140

RN8#,90..4HC

 1
32922-35201

VZN120,85,9#..ATM

 1
32922-35200

VZN85,9#..ATM

 1
32922-35202

VZN120,85,9#..ATM

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-35010

RN12#,8#,90..ATM

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-35040

RN120,8#,90..ATM..USA

W(AIR CONDITIONER)

 1
32909-35030

RN12#,8#,90..ATM

 1
32923E - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.6
32928-35031

RN12#,8#,90..ATM

 1
32923F - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.7
32929-20070

RN12#,8#,90..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32909-35060

VZN120,85,9#..ATM

 1
32909-35050

VZN120,85,9#..ATM..USA

W(AIR CONDITIONER)

 1
90462-12044

RN12#,8#,90..ATM

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
90461-06188

RN12#,8#,90..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

RN12#,8#,90..ATM

L=35,ID=10

 4
32926-30020

VZN120,85,9#..ATM

L=35,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

RN12#,8#,90..ATM

L=35,ID=10

 4
32926-30020

VZN120,85,9#..ATM

L=35,ID=10

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-35100

RN8#,90..4HC

TOWING PACKAGE

 1
32942-35010

VZN85,9#..ATM

TOYODA GOSEI

 1
32942-35040

VZN85,90..ATM..(CBU,IV3)

TOKAIGOMU

 1
90445-15022

RN8#,90..4HC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-35040

VZN85,90..ATM..(CBU,IV3)

TOKAIGOMU

 1
32942-35010

VZN85,90..ATM..(CBU,IV3)

TOYODA GOSEI

 1
90445-15014

RN12#,8#,90..ATM

 1
Common parts
91611-60612

(8808- )VZN120,85,90..JPP..ATM..CBU,IV3

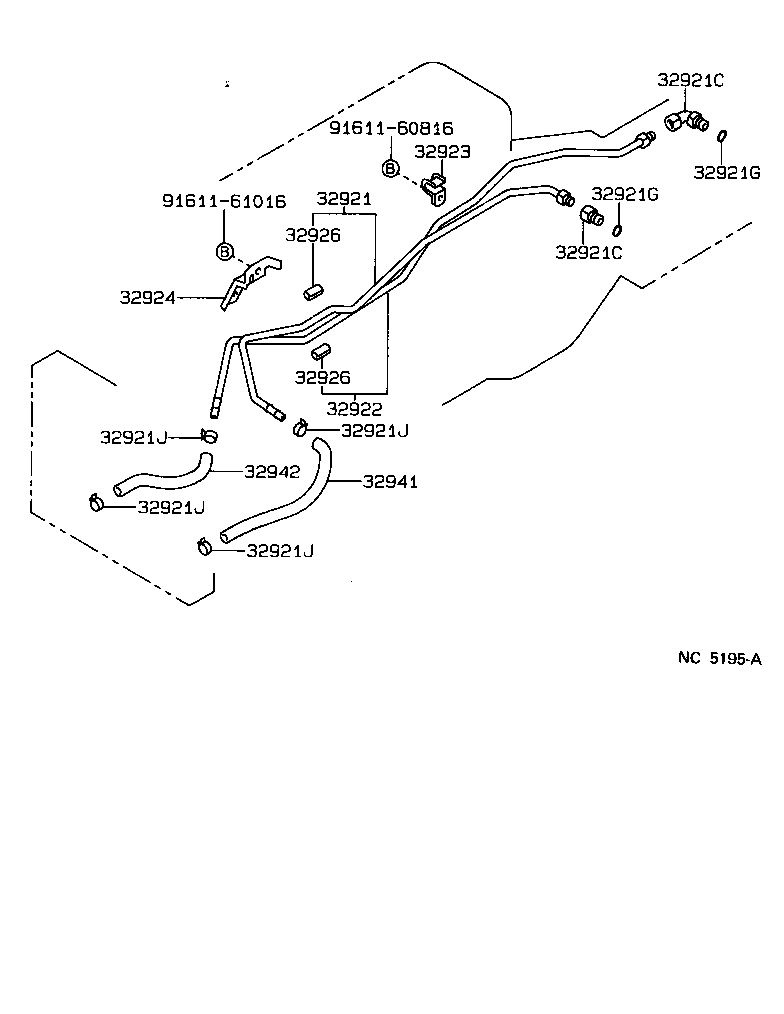

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921G 32921G 32921J 32921J 32921J 32921J 32922 32923 32924 32926 32926 32941 32942 9161160816 9161161016
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-35201

VZN120,85,9#..ATM

 1
32921-35200

VZN120,85,9#..ATM

 1
32921-35120

RN8#,90..4HC

 1
32921-35180

RN8#,90..4HC

TOWING PACKAGE

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16008

VZN85,9#..ATM

 1
90407-16010

RN12#,8#,90..ATM

OUTLET

 1
90404-16021

RN12#,8#,90..ATM

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16008

VZN85,9#..ATM

 1
90407-16010

RN12#,8#,90..ATM

OUTLET

 1
90404-16021

RN12#,8#,90..ATM

INLET

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

RN12#,8#,90..ATM

 2
90301-11006

VZN120,85,9#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

RN12#,8#,90..ATM

 2
90301-11006

VZN120,85,9#..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

RN12#,8#,90..ATM

 2
90467-16013

VZN120,85,90..ATM..(CBU,IV3)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-35140

RN8#,90..4HC

 1
32922-35201

VZN120,85,9#..ATM

 1
32922-35200

VZN85,9#..ATM

 1
32922-35202

VZN120,85,9#..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-30110

VZN120,85,9#..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32909-35060

VZN120,85,9#..ATM

 1
32909-35050

VZN120,85,9#..ATM..USA

W(AIR CONDITIONER)

 1
90462-12044

RN12#,8#,90..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

RN12#,8#,90..ATM

L=35,ID=10

 4
32926-30020

VZN120,85,9#..ATM

L=35,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

RN12#,8#,90..ATM

L=35,ID=10

 4
32926-30020

VZN120,85,9#..ATM

L=35,ID=10

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-35100

RN8#,90..4HC

TOWING PACKAGE

 1
32942-35010

VZN85,9#..ATM

TOYODA GOSEI

 1
32942-35040

VZN85,90..ATM..(CBU,IV3)

TOKAIGOMU

 1
90445-15022

RN8#,90..4HC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-35040

VZN85,90..ATM..(CBU,IV3)

TOKAIGOMU

 1
32942-35010

VZN85,90..ATM..(CBU,IV3)

TOYODA GOSEI

 1
90445-15014

RN12#,8#,90..ATM

 1
Common parts
91611-60816
91611-61016
