RN90L-CRLDSA3 (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Aug 1989
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )22R#..JPP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

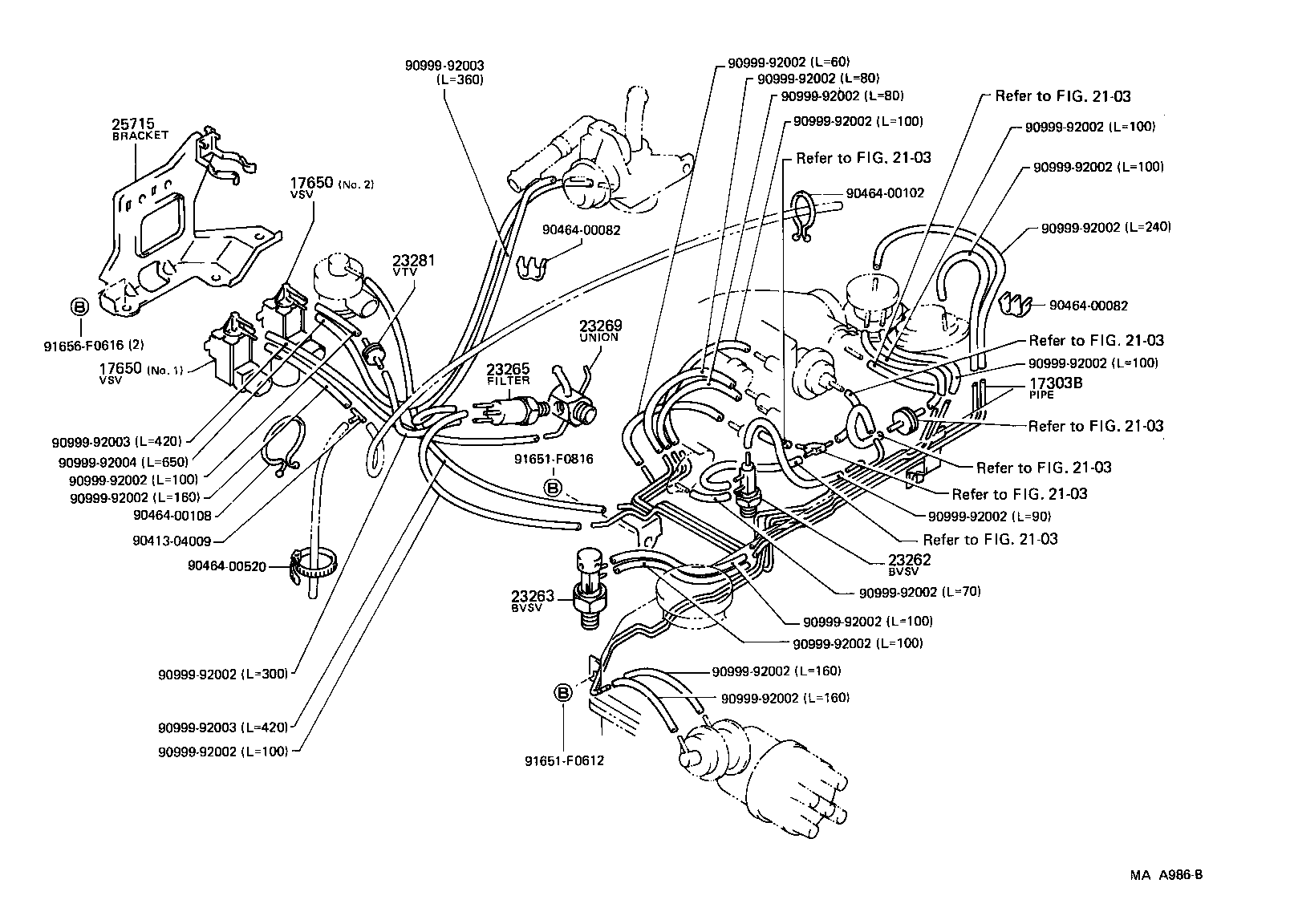

(8808-9008)22R..JPP..G
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35230 |
22R..RN8#,90..G |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12064 |
22R..RN8#,90..G NO.2 |
1 | ||
| 90910-12035 |
22R..RN8#,90..G NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12064 |
22R..RN8#,90..G NO.2 |
1 | ||
| 90910-12035 |
22R..RN8#,90..G NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN8#,90 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05073 |
22R..RN8#,90..G |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
22R#..RN12#,8#,90 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54032 |
22R..RN8#,90 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
22R..RN8#,90..G |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-35040 |
22R..RN8#,90..G |
1 | ||
| Common parts | ||||
| 90413-04009 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00108 | ||||
| 90464-00520 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-F0612 | ||||
| 91651-F0816 | ||||
| 91656-F0616 | ||||
| Linked diagrams | ||||
| 2103 | ||||

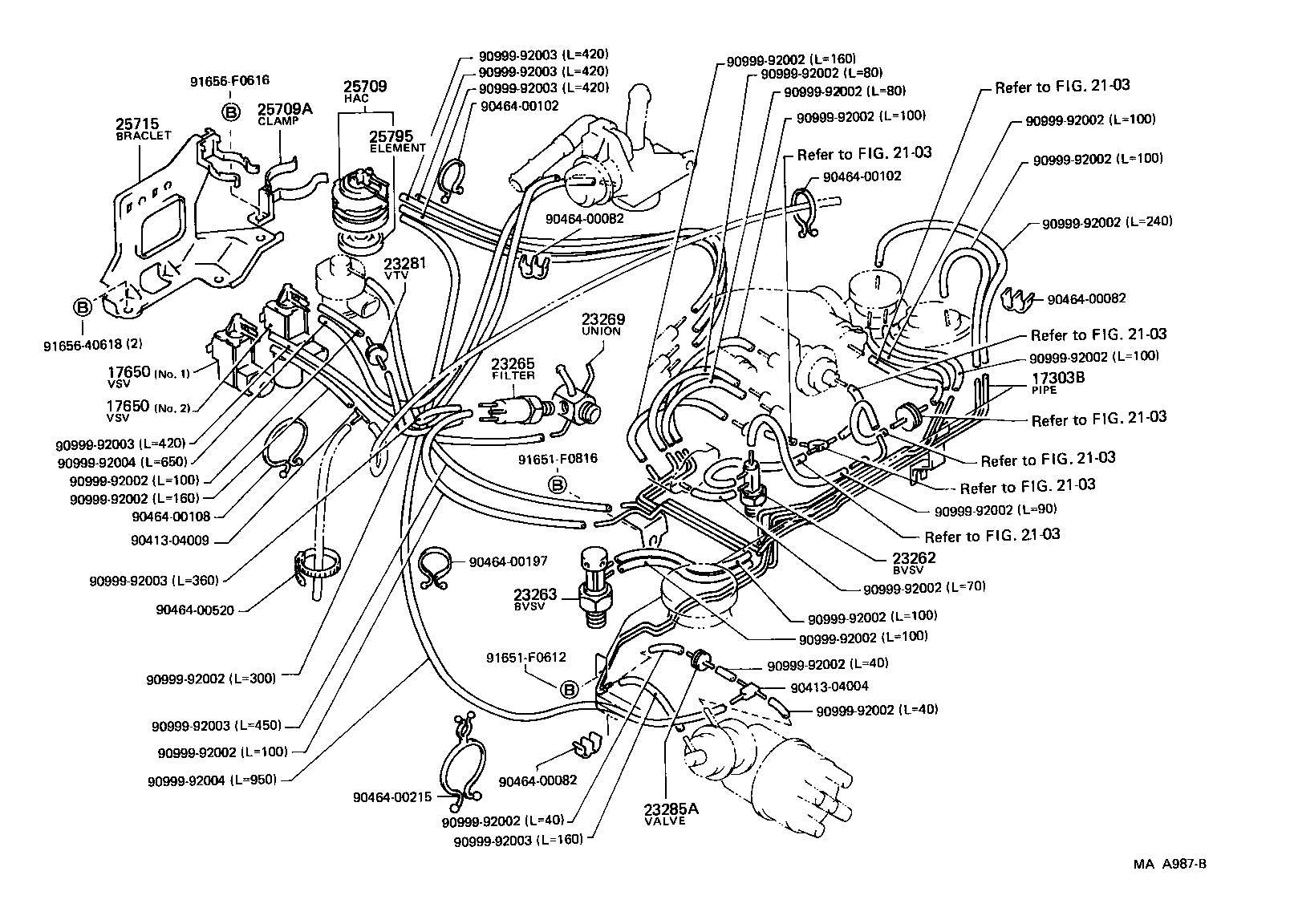

(8808-9008)22R..JPP..G..USA
Click highlighted areas on diagram
CALIFORNIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35230 |
22R..RN8#,90..G |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12064 |
22R..RN8#,90..G NO.2 |
1 | ||
| 90910-12035 |
22R..RN8#,90..G NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12064 |
22R..RN8#,90..G NO.2 |
1 | ||
| 90910-12035 |
22R..RN8#,90..G NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN8#,90 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05073 |
22R..RN8#,90..G |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
22R#..RN12#,8#,90 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54032 |
22R..RN8#,90 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
22R..RN8#,90..G |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN8#,90..G..USA |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-38010 |
22R..RN8#,90..G..USA |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90461-10178 |
22R..RN8#,90..G..USA |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-35040 |
22R..RN8#,90..G |
1 | ||
| 25795 - ELEMENT, ALTITUDE COMPENSATOR FILTER | ||||
| 25795-38010 |
22R..RN8#,90..G..USA |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04009 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00108 | ||||
| 90464-00197 | ||||
| 90464-00215 | ||||
| 90464-00520 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-F0612 | ||||
| 91651-F0816 | ||||
| 91656-40618 | ||||
| 91656-F0616 | ||||
| Linked diagrams | ||||
| 2103 | ||||
