RN85L-TRLDSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN80..JPP..W ; (8808- )RN80..JPP..4HC ; (8808- )RN120,85,90..JPP..

Click highlighted areas on diagram

diagram 8202 8401 8401 8401 8401 88320 88375 88410 88431 88440B 88446 88648F 9009904950 9011906033 9011910100 9011910367 91651G0850
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35280

RN8#,90..G

 1
88410 - CLUTCH ASSY, MAGNET
88410-35100

RN8#,90..G

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35130

RN8#,90..G

 1
88440B - PULLEY ASSY, IDLE
88440-35040

VZN120,85,9#

 1
88648F - WIRE, MAGNET CLUTCH
88648-89126

RN8#,90..G

 1
Common parts
90099-04950
90119-06033
90119-10100
90119-10367
91651-G0850
Linked diagrams
8202
8401

ILLUST NO. 1 OF 3(8808- )VZN120,85,9#..JPP

Click highlighted areas on diagram

diagram 8202 8271112200 8401 8401 8401 8401 88320 88410 88431 88440B 88446 88648F 9009904326 9009904950 9011906033 9011910367 9011910367 91511G1040 91511G1050
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35280

RN8#,90..G

 1
88410 - CLUTCH ASSY, MAGNET
88410-35100

RN8#,90..G

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35130

RN8#,90..G

 1
88440B - PULLEY ASSY, IDLE
88440-35040

VZN120,85,9#

 1
88648F - WIRE, MAGNET CLUTCH
88648-89126

RN8#,90..G

 1
Common parts
82711-12200
90099-04326
90099-04950
90119-06033
90119-10367
91511-G1040
91511-G1050
Linked diagrams
8202
8401

(8808- )JPP..G

Click highlighted areas on diagram

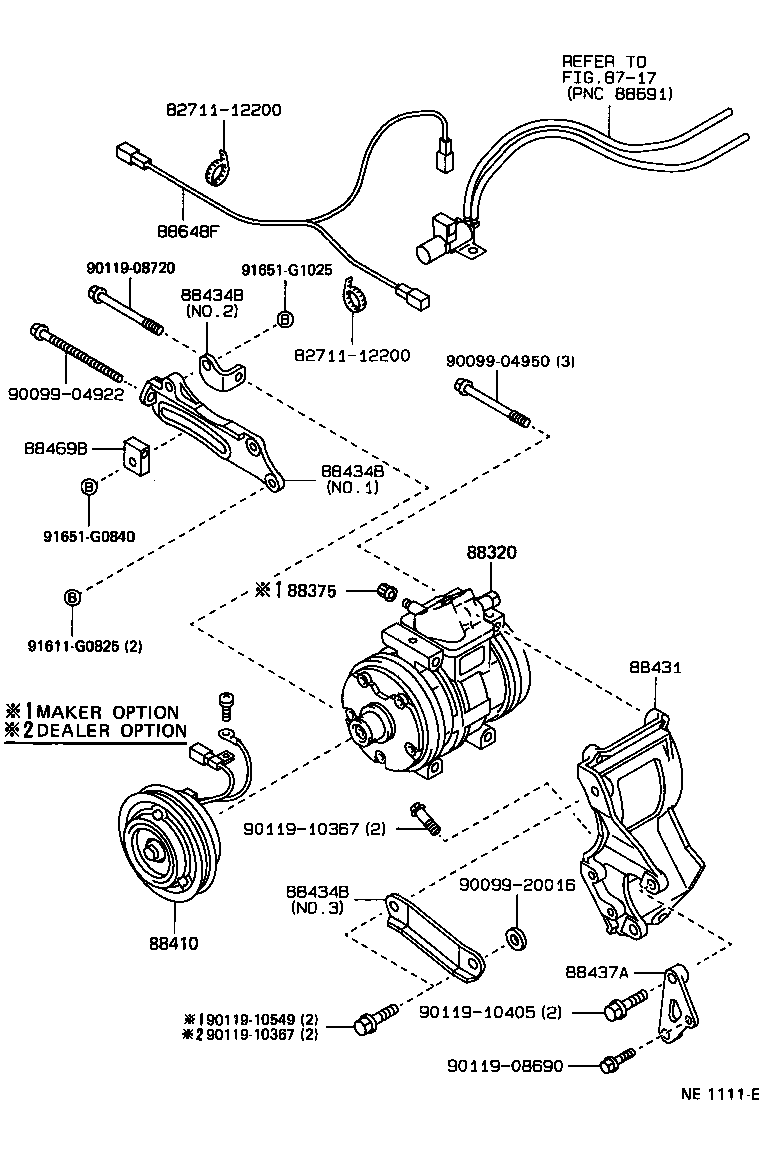

diagram 8271112200 8271112200 8717 88320 88375 88410 88431 88434B 88434B 88434B 88437A 88469B 88648F 9009904922 9009904950 9009920016 9011908690 9011908720 9011910367 9011910367 9011910405 9011910549 91611G0825 91651G0840 91651G1025
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35280

RN8#,90..G

 1
88410 - CLUTCH ASSY, MAGNET
88410-35100

RN8#,90..G

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35130

RN8#,90..G

 1
88434B - STAY, COMPRESSOR
88434-35010

RN8#,90..G

NO.1

 1
88434-35020

RN8#,90..G

NO.2

 1
88434-20150

RN8#,90..G

NO.3

 1
88434B - STAY, COMPRESSOR
88434-35010

RN8#,90..G

NO.1

 1
88434-35020

RN8#,90..G

NO.2

 1
88434-20150

RN8#,90..G

NO.3

 1
88434B - STAY, COMPRESSOR
88434-35010

RN8#,90..G

NO.1

 1
88434-35020

RN8#,90..G

NO.2

 1
88434-20150

RN8#,90..G

NO.3

 1
88437A - ATTACHMENT, COMPRESSOR
88437-35030

RN8#,90..G

 1
88469B - COLLAR
88469-20030

RN8#,90..G

 1
88648F - WIRE, MAGNET CLUTCH
88648-89126

RN8#,90..G

 1
Common parts
82711-12200
90099-04922
90099-04950
90099-20016
90119-08690
90119-08720
90119-10367
90119-10405
90119-10549
91611-G0825
91651-G0840
91651-G1025
Linked diagrams
8717
