RN85L-TRLDSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP..5F..CBR

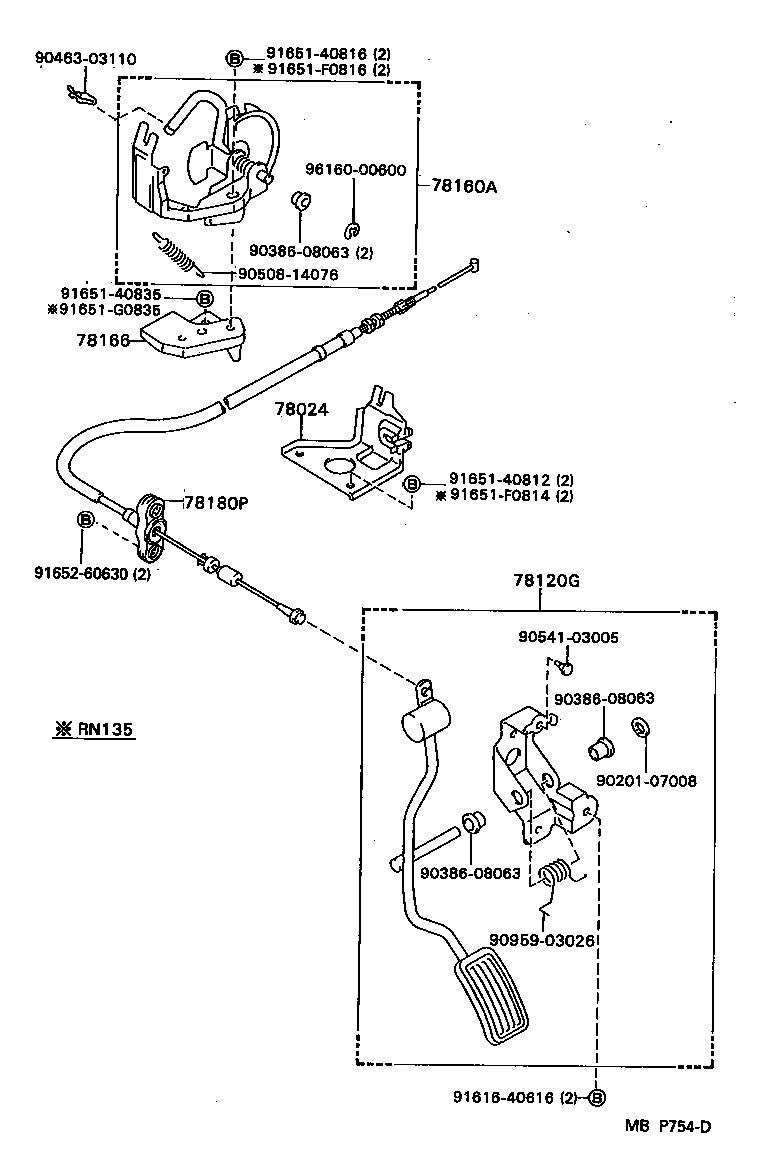

Click highlighted areas on diagram

diagram 78024 78120G 78160A 78166 78180P 9020107008 9038608063 9038608063 9038608063 9046303110 9050814076 9054103005 9095903026 9161640616 9165140812 9165140816 9165140835 91651F0814 91651F0816 91651G0835 9165260630 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22060

RN8#,90..CBR

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-89138

RN8#,90..CBR

 1
78160A - BELLCRANK ASSY, ACCEL CONTROL W/BRACKET
78160-89101

RN8#,90..CBR

 1
78166 - BRACKET, ACCEL CONTROL NO.2 BELLCRANK
78166-35010

RN8#,90..CBR

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-89152

RN8#,90..5F..CBR

 1
78180-89160

VZN120,85,9#

 1
Common parts
90201-07008
90386-08063
90463-03110
90508-14076
90541-03005
90959-03026
91616-40616
91651-40812
91651-40816
91651-40835
91651-F0814
91651-F0816
91651-G0835
91652-60630
96160-00600

(8808- )VZN120,85,9#..JPP

Click highlighted areas on diagram

diagram 78120G 78180P 78184B 9011908810 9011908951 9011908951 9020107008 9038608063 9038608063 9046400504 9046400633 9050826077 9054103005 9095901317 9095901318 9095901465 9095903026 9161640616 9165260630
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-89138

RN8#,90..CBR

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-89152

RN8#,90..5F..CBR

 1
78180-89160

VZN120,85,9#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-35060

VZN120,85,9#

 1
Common parts
90119-08810
90119-08951
90201-07008
90386-08063
90464-00504
90464-00633
90508-26077
90541-03005
90959-01317
90959-01318
90959-01465
90959-03026
91616-40616
91652-60630
