RN85L-TRLDSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )RN8#,90,VZN85,9#..JPP

Click highlighted areas on diagram

diagram 2211 77023 77100 77100A 77100B 77100D 77161C 77169A 77201 77201 77203A 77211 77213 77213B 77213B 77290 77305A 77310A 77316 77358A 77408 8401 9011908667 9011908667 9011908668 9015960032 9017008204 9046022001 9046022001 9046022001 9046055003 9046055003 9046055003 9046055003 9046055003 9046065002 9054106058 9331914010 9338515010
Part # Description Qty Price
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

RN8#,90..CBR

 1
77100 - TANK ASSY, FUEL
77001-35979

RN85,90..CBR..USA

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RN12#,8#,90,VZN120,85,9#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RN8#,90,VZN85,9#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77408-35020

RN8#,90,VZN85,9#

L=340

 1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-35050

RN8#,90,VZN85,9#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

RN8#,90..CBR

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35360

RN8#,90,VZN85,9#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35360

RN8#,90,VZN85,9#

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-35400

RN85,90..CBR

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35220

RN8#,90,VZN85,9#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35220

RN8#,90,VZN85,9#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-35030

RN8#,90,VZN85,9#

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-89108

RN8#,90,VZN85,90..CBU,IV3

 1
77310A - CAP ASSY, FUEL TANK
77310-35080

RN12#,8#,90,VZN120,85,9#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

RN12#,8#,90,VZN120,85,9#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-24010

RN8#,90,VZN85,90..CBU,IV3

 1
77358-89101

RN8#,90,VZN85,90..IV3

 1
Common parts
90119-08667
90119-08668
90159-60032
90170-08204
90460-22001
90460-55003
90460-65002
90541-06058
93319-14010
93385-15010
Linked diagrams
2211
8401

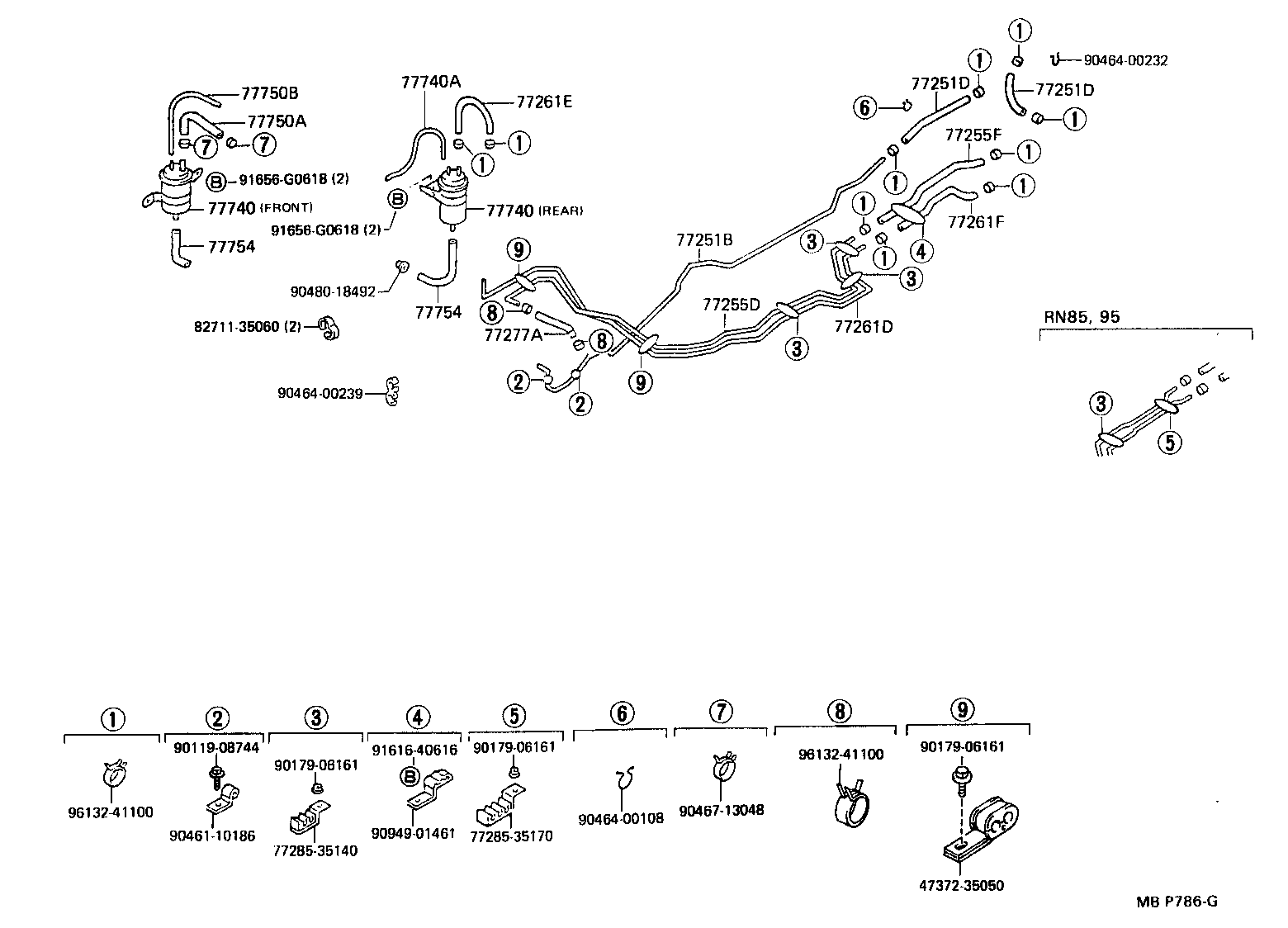

ILLUST NO. 2 OF 2(8808- )JPP..CBR

Click highlighted areas on diagram

diagram 4737235050 77251B 77251D 77251D 77255D 77255F 77261D 77261E 77261F 77277A 7728535140 7728535170 77740 77740 77740A 77750A 77750B 77754 77754 8271135060 9011908744 9017906161 9017906161 9017906161 9046110186 9046400108 9046400232 9046400239 9046713048 9048018492 9094901461 9161640616 91656G0618 91656G0618 9613241100 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-35770

RN85..CBR

 1
77255D - TUBE, FUEL RETURN
77255-35530

RN85..CBR

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
90445-12223

RN85,VZN85

L=570

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35390

RN85,VZN85

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-35120

RN8#,90..CBR;RN85,90..EFI..CND

L=340

 1
77259-35130

VZN120,85,9#

L=260

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290

RN85,90,VZN85,9#

L=460

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12022

RN8#,90..CBR

L=300

 1
90447-12075

VZN120,85,9#

L=400

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35270

RN8#,90..CBR

RR

 1
77740-35170

RN8#,90..CBR

FR

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35270

RN8#,90..CBR

RR

 1
77740-35170

RN8#,90..CBR

FR

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92003

VZN120,85,9#

L=600

 1
90999-92003

RN8#,90..G

L=600

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
23829-35021

RN8#,90..CBR

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90999-92003

RN8#,90..G

L=600

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35140

RN8#,90..CBR

L=160

 1
77754-35131

RN8#,90..CBR

L=320

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35140

RN8#,90..CBR

L=160

 1
77754-35131

RN8#,90..CBR

L=320

 1
Common parts
47372-35050
77285-35140
77285-35170
82711-35060
90119-08744
90179-06161
90461-10186
90464-00108
90464-00232
90464-00239
90467-13048
90480-18492
90949-01461
91616-40616
91656-G0618
96132-41100
