RN85L-TRLDSA3 (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Aug 1989
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9008)22R..JPP..G

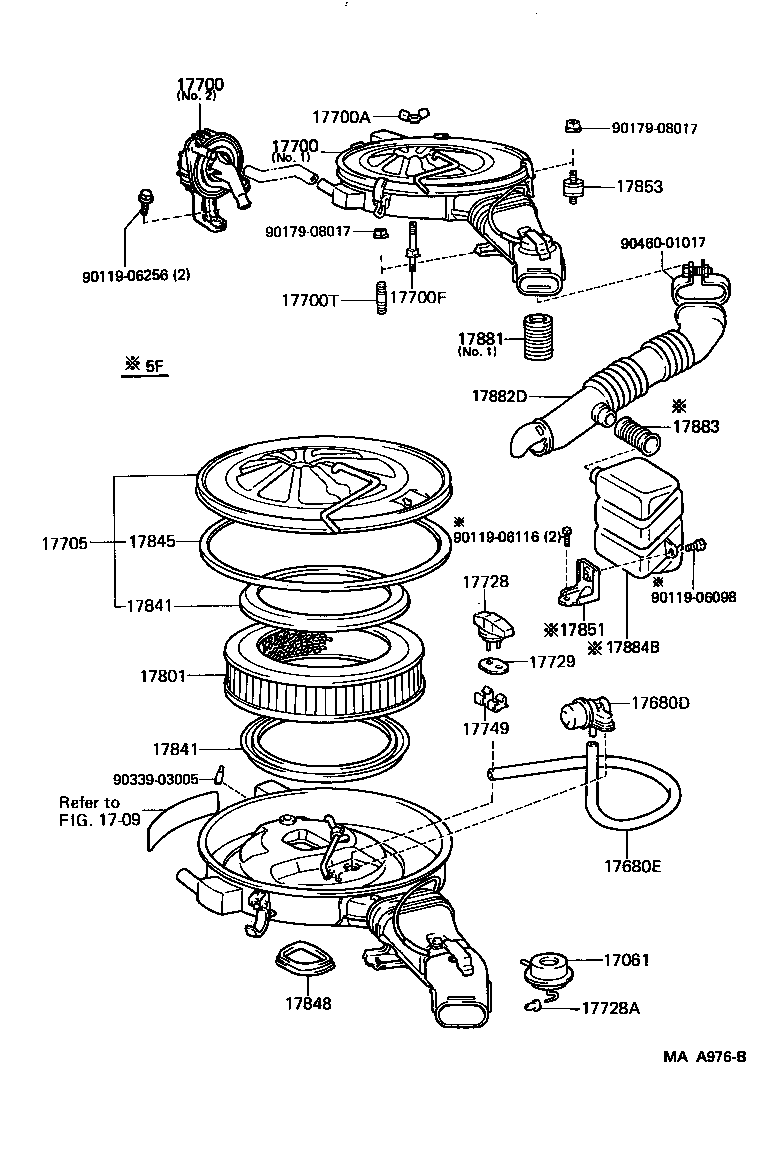

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-37010 |
22R..RN8#,90 |
1 | ||
| 17680D - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-35010 |
22R..RN8#,90 |
1 | ||
| 17680E - HOSE, AIR(FOR MIXTURE CONTROL VALVE) | ||||
| 17346-35010 |
22R..RN8#,90 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35320 |
22R..RN8#,90..G NO.1 |
1 | ||
| 17700-35370 |
22R..RN8#,90..G NO.2 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35320 |
22R..RN8#,90..G NO.1 |
1 | ||
| 17700-35370 |
22R..RN8#,90..G NO.2 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06013 |
22R..RN8#,90..G |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
22R..RN8#,90 |
1 | ||
| 17700T - BOLT, STUD(FOR AIR CLEANER) | ||||
| 90116-08033 |
22R..RN8#,90 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35060 |
22R..RN8#,90 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24011 |
22R..RN8#,90 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
22R..RN8#,90 |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
22R..RN8#,90 |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
22R..RN8#,90 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41090 |
22R..RN8#,90 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
22R..RN8#,90 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
22R..RN8#,90 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
22R..RN8#,90 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
22R..RN8#,90 |
1 | ||
| 17851 - BRACKET, AIR CLEANER SUPPORT | ||||
| 17851-89102 |
22R..RN8#,90..5F |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-38010 |
22R..RN8#,90 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-35060 |
22R..RN8#,90 |
1 | ||
| 17882D - HOSE, COOL AIR INTAKE | ||||
| 17880-89103 |
22R..RN8#,90..5F |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-89104 |
22R..RN8#,90..5F |
1 | ||
| 17884B - BOX, AIR CLEANER, NO.1 | ||||
| 17884-89101 |
22R..RN8#,90..5F |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90119-06116 | ||||
| 90119-06256 | ||||
| 90179-08017 | ||||
| 90339-03005 | ||||
| 90460-01017 | ||||
| Linked diagrams | ||||
| 1709 | ||||
