RN85L-TRLDSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)22R..JPP

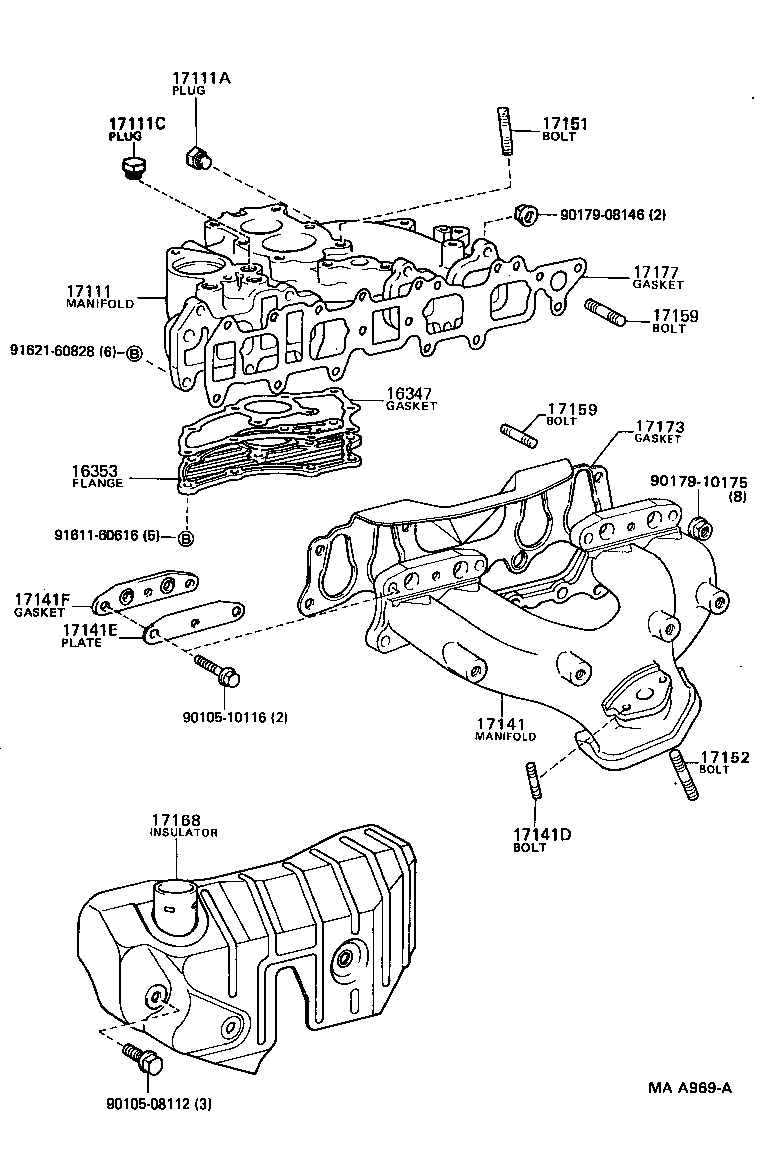

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111C 17141 17141D 17141E 17141F 17151 17152 17159 17159 17168 17173 17177 9010508112 9010510116 9017908146 9017910175 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35050

22R..RN8#,90

 1
16353 - FLANGE, WATER BY-PASS
16353-35020

22R..RN8#,90

 1
17111 - MANIFOLD, INTAKE
17111-35090

22R..RN8#,90

 1
17111A - PLUG, NO.1
90345-51006

22R#..RN12#,8#,90

 1
17111C - PLUG, NO.3
90340-16004

22R..RN8#,90

 1
17141 - MANIFOLD, EXHAUST
17141-35080

22R..RN8#,90..G

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

22R..RN8#,90..G

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-35030

22R..RN8#,90..G

 2
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17378-35020

22R..RN8#,90..G

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RN8#,90

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RN12#,8#,90

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RN12#,8#,90

INTAKE TO HEAD

 2
90116-10067

22R#..RN12#,8#,90

EXHAUST MANIFOLD UPR

 4
90116-10064

22R#..RN12#,8#,90

EXHAUST MANIFOLD LWR

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RN12#,8#,90

INTAKE TO HEAD

 2
90116-10067

22R#..RN12#,8#,90

EXHAUST MANIFOLD UPR

 4
90116-10064

22R#..RN12#,8#,90

EXHAUST MANIFOLD LWR

 4
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35160

22R..RN8#,90

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35120

22R#..RN12#,8#,90

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35050

22R..RN8#,90

 1
Common parts
90105-08112
90105-10116
90179-08146
90179-10175
91611-60616
91621-60828
