RN131L-RJMSEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN13#,VZN13#

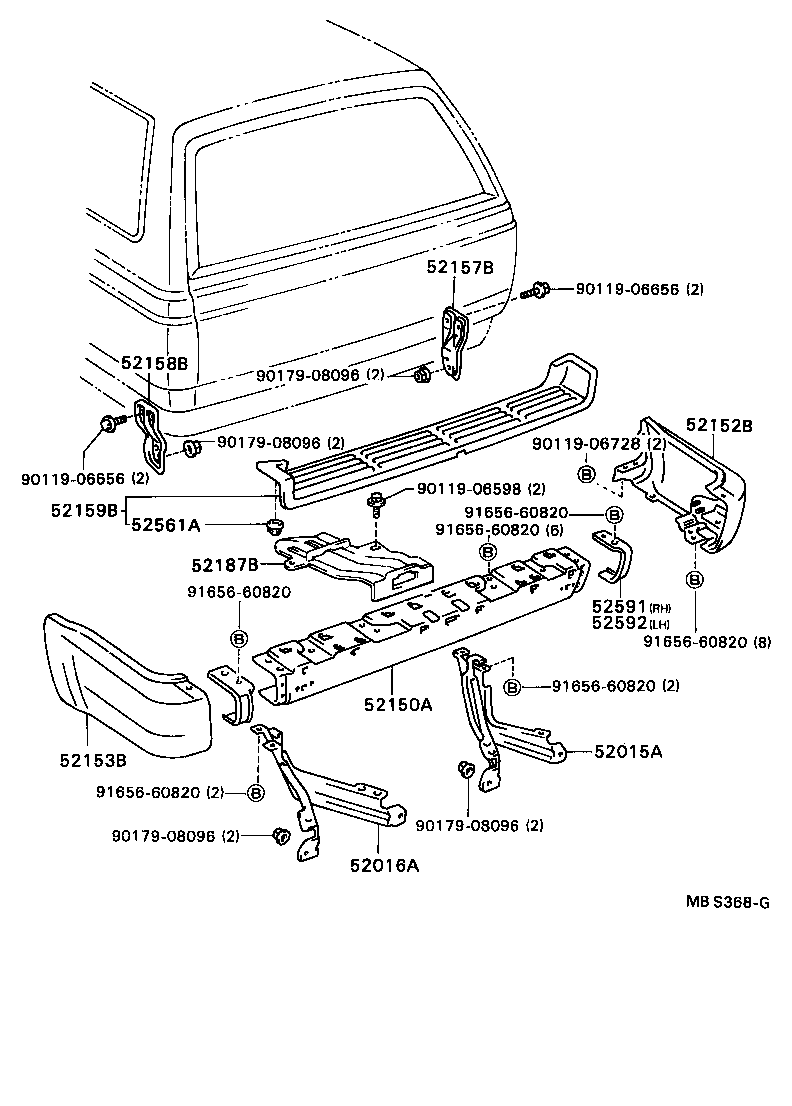

Click highlighted areas on diagram

diagram 52015A 52016A 52150A 52152B 52153B 52157B 52158B 52159B 52187B 52561A 52591 52592 9011906598 9011906656 9011906656 9011906728 9017908096 9017908096 9017908096 9017908096 9165660820 9165660820 9165660820 9165660820 9165660820 9165660820
Part # Description Qty Price
52150A - BUMPER ASSY, REAR
52105-8912006

RN13#

O.GOLD.M,29L

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-8910706

RN13#

O.GOLD.M,29L

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-8910506

RN13#

O.GOLD.M,29L

 1
Common parts
90119-06598
90119-06656
90119-06728
90179-08096
91656-60820
