RN131L-RJLSEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1993
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )2D

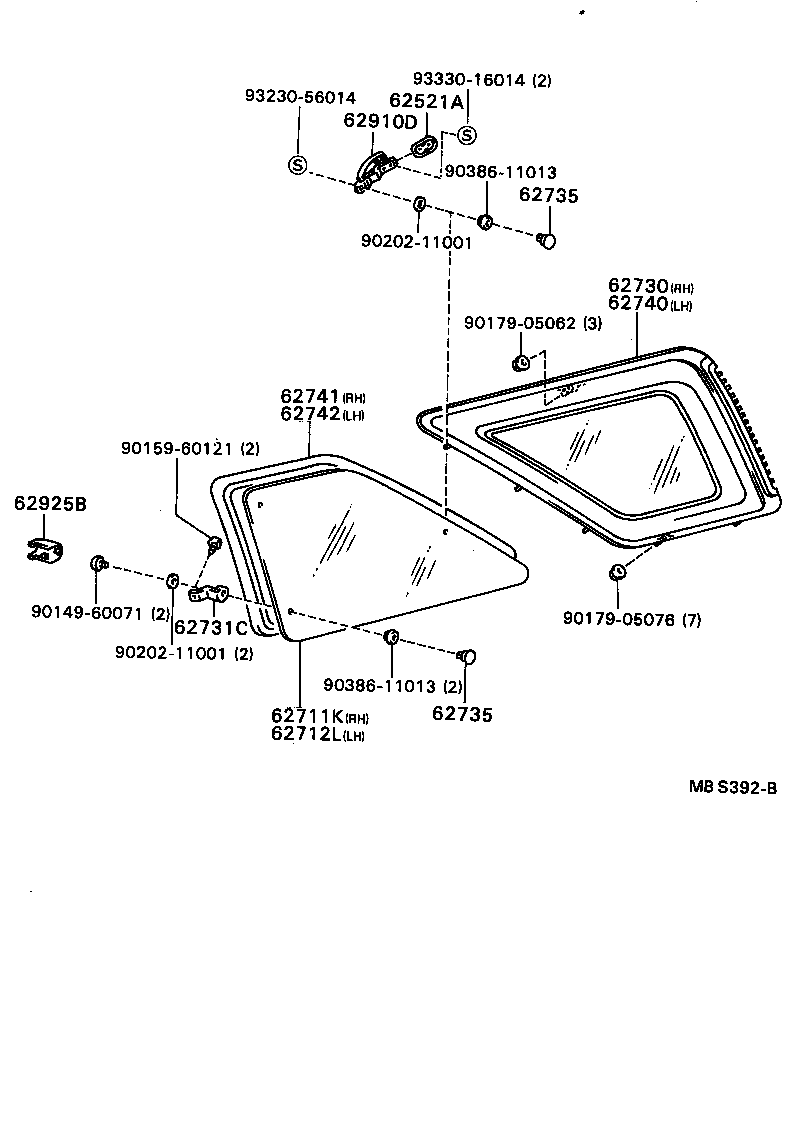

Click highlighted areas on diagram

diagram 62521A 62711K 62712L 62730 62731C 62735 62735 62740 62741 62742 62910D 62925B 9014960071 9015960121 9017905062 9017905076 9020211001 9020211001 9038611013 9038611013 9323056014 9333016014
Part # Description Qty Price
62521A - COVER, QUARTER TRIM
62521-8910204

RN110,13#,VZN110,13#..2D,T1

BLUE,TRIM8#

 2
62521-8910203

RN110,13#,VZN110,13#..2D,T1

GRAY,TRIM1#

 2
62521-8910202

RN110,13#,VZN110,13#..2D,T1

RED,TRIM3#

 2
62521-89102E0

RN131,VZN13#..2D

TAN,TRIM4#

 2
62521-8910206

RN110,13#,VZN110,13#..2D,T1

BROWN,TRIM4#

 2
62711K - GLASS, QUARTER WINDOW, FRONT RH
62711-89119

RN13#..2D

*TT,T=4.0,BLUE

 1
62711-89118

RN13#..2D

*TT,T=4.0

 1
62711-89122

RN131..2D

*SERT,T=4.0,GRAY

 1
62711-89119

RN131..2D

*TT,T=4.0,BLUE

 1
62711-89122

RN13#,VZN13#..2D

*SERT,T=4.0,GRAY,W(PRIVATE GLASS)

 1
62712L - GLASS, QUARTER WINDOW, FRONT LH
62712-89119

RN13#..2D

*TT,T=4.0,BLUE

 1
62712-89118

RN13#..2D

*TT,T=4.0

 1
62712-89119

RN131..2D

*TT,T=4.0,BLUE

 1
62712-89122

RN13#,VZN13#..2D

*SERT,T=4.0,GRAY,W(PRIVATE GLASS)

 1
62712-89122

RN131..2D

*SERT,T=4.0,GRAY

 1
62730 - PANEL ASSY, SIDE WINDOW, NO.3
62730-89105

RN13#,VZN13#..2D

*SERT,T=4.0,GRAY

 1
62731C - HINGE, QUARTER WINDOW, RH
62731-89103

RN13#,VZN13#..2D

 4
62735 - RETAINER, QUARTER WINDOW HINGE
62735-89102

RN13#,VZN13#..2D

 4
62735 - RETAINER, QUARTER WINDOW HINGE
62735-89102

RN13#,VZN13#..2D

 4
62740 - PANEL ASSY, SIDE WINDOW, NO.4
62740-89103

RN13#,VZN13#..2D

*SERT,T=4.0,GRAY

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-89103

RN13#,VZN13#..2D

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-89102

RN13#,VZN13#..2D

 1
62910D - LOCK ASSY, QUARTER WINDOW
62910-8910302

RN13#,VZN13#..2D

RED,TRIM3#

 2
62910-8910304

RN13#,VZN13#..2D

BLUE,TRIM8#

 2
62910-8910306

RN13#,VZN13#..2D

BROWN,TRIM4#

 2
62910-8910303

RN13#,VZN13#..2D

GRAY,TRIM1#

 2
62910-89103E0

RN131,VZN13#..2D

TAN,TRIM4#

 2
62925B - COVER, SIDE REAR WINDOW HINGE, NO.1
62925-8910102

RN13#,VZN13#..2D

RED,TRIM3#

 4
62925-8910104

RN13#,VZN13#..2D

BLUE,TRIM8#

 4
62925-8910106

RN13#,VZN13#..2D

BROWN,TRIM4#

 4
62925-89101E0

RN131,VZN13#..2D

TAN,TRIM4#

 4
62925-8910103

RN13#,VZN13#..2D

GRAY,TRIM1#

 4
Common parts
90149-60071
90159-60121
90179-05062
90179-05076
90202-11001
90386-11013
93230-56014
93330-16014
