RN130L-GKLSEA (1989)
Toyota 4-Runner Truck (Jpp)

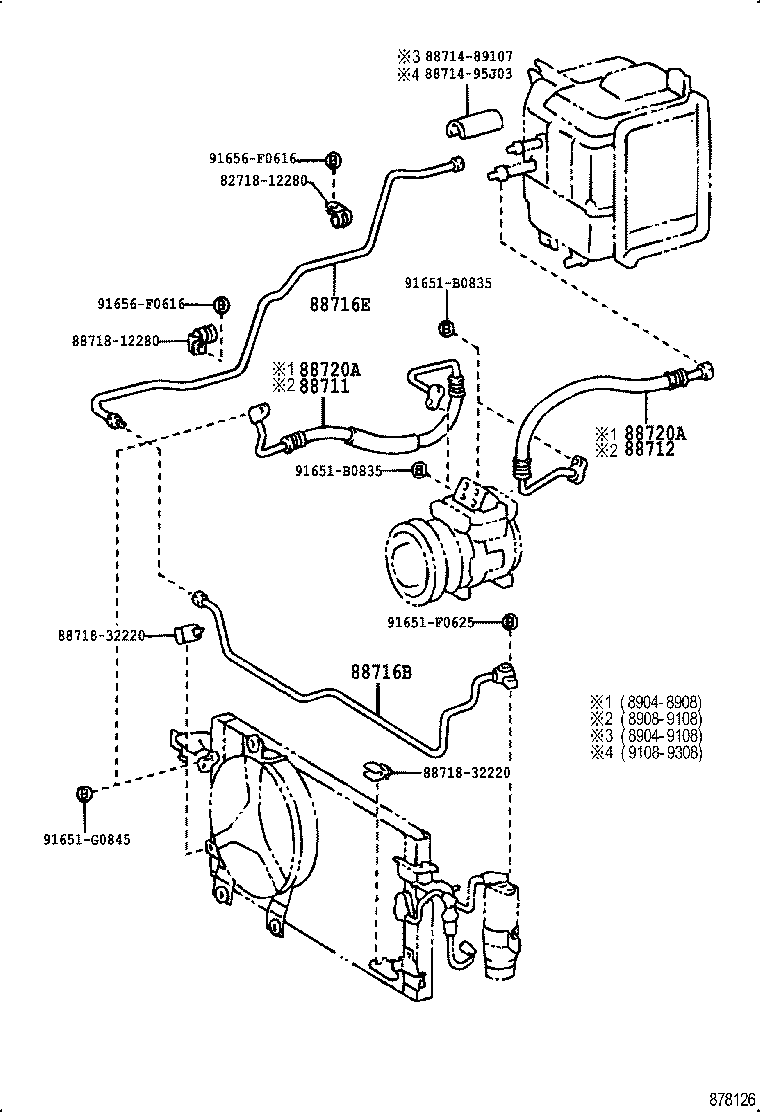

ILLUST NO. 2 OF 2(8904-9308)RN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35120 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88711-89156 |
RN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88711-35120 |
RN13# |
1 | ||
| 88711-35230 |
RN13# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35050 |
RN131;RN10#,110,130..USA |
1 | ||
| 88712-35150 |
VZN10#,110,130..USA |
1 | ||
| 88720-35230 |
RN130 MAKER OPTION |
1 | ||
| 88712-35200 |
RN130 DEALER OPTION |
1 | ||
| 88712-89138 |
RN13# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35190 |
RN13#,VZN13# |
1 | ||
| 88716-89172 |
RN13#,VZN130 |
1 | ||
| 88716-89172 |
RN13#,VZN13# |
1 | ||
| 88716-35061 |
RN130,VZN13# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89170 |
VZN10#,110,130 |
1 | ||
| 88716-89173 |
RN13# |
1 | ||
| 88710-35051 |
RN130,VZN130 MAKER OPT |
1 | ||
| 88716-89181 |
VZN10#,110,130;RN10#,110,VZN131..CND |
1 | ||
| 88716-89173 |
RN130 DEALER OPT |
1 | ||
| 88716-89181 |
RN130 |
1 | ||
| 88716-35120 |
RN13#,VZN13# |
1 | ||
| 88716-35041 |
RN130,VZN130 DEALER OPT OR MAKER OPT |
1 | ||
| 88716-89173 |
RN131;RN10#,110,130..USA |
1 | ||
| 88716-89181 |
RN10#,110,VZN10#,110,13# |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89130 |
RN130 DISCHARGE |
1 | ||
| 88720-89122 |
RN130 SUCTION |
1 | ||
| 88720-89137 |
VZN10#,110,130..USA |
1 | ||
| 88720-89122 |
RN10#,110,130..USA |
1 | ||
| 88720-35170 |
VZN10#,110,13# |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89130 |
RN130 DISCHARGE |
1 | ||
| 88720-89122 |
RN130 SUCTION |
1 | ||
| 88720-89137 |
VZN10#,110,130..USA |
1 | ||
| 88720-89122 |
RN10#,110,130..USA |
1 | ||
| 88720-35170 |
VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 82718-12280 | ||||
| 88714-89107 | ||||
| 88714-95J03 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
ILLUST NO. 2 OF 2(9308- )RN13#,VZN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RN13#,VZN13# |
1 | ||
| 88375-30280 |
RN10#,110,13#,VZN100,110,13# |
1 | ||
| 88375-30280 |
RN110..4FC;RN106,13#,VZN13#;RN101,110..G..USA |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
RN13#,VZN13# |
1 | ||
| 88375-30290 |
RN10#,110,13#,VZN100,110,13# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
RN13# 250G |
3 | ||
| 90986-02004 |
RN13#,VZN13# 250G |
3 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35120 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88711-89156 |
RN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88711-35120 |
RN13# |
1 | ||
| 88711-35230 |
RN13# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35050 |
RN131;RN10#,110,130..USA |
1 | ||
| 88712-35150 |
VZN10#,110,130..USA |
1 | ||
| 88720-35230 |
RN130 MAKER OPTION |
1 | ||
| 88712-35200 |
RN130 DEALER OPTION |
1 | ||
| 88712-89138 |
RN13# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35190 |
RN13#,VZN13# |
1 | ||
| 88716-89172 |
RN13#,VZN130 |
1 | ||
| 88716-89172 |
RN13#,VZN13# |
1 | ||
| 88716-35061 |
RN130,VZN13# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89170 |
VZN10#,110,130 |
1 | ||
| 88716-89173 |
RN13# |
1 | ||
| 88710-35051 |
RN130,VZN130 MAKER OPT |
1 | ||
| 88716-89181 |
VZN10#,110,130;RN10#,110,VZN131..CND |
1 | ||
| 88716-89173 |
RN130 DEALER OPT |
1 | ||
| 88716-89181 |
RN130 |
1 | ||
| 88716-35120 |
RN13#,VZN13# |
1 | ||
| 88716-35041 |
RN130,VZN130 DEALER OPT OR MAKER OPT |
1 | ||
| 88716-89173 |
RN131;RN10#,110,130..USA |
1 | ||
| 88716-89181 |
RN10#,110,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-14070 | ||||
| 88688-35170 | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-35020 | ||||
| 90090-14120 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 91651-60616 | ||||
| 91652-B0635 | ||||
| 93385-56025 | ||||

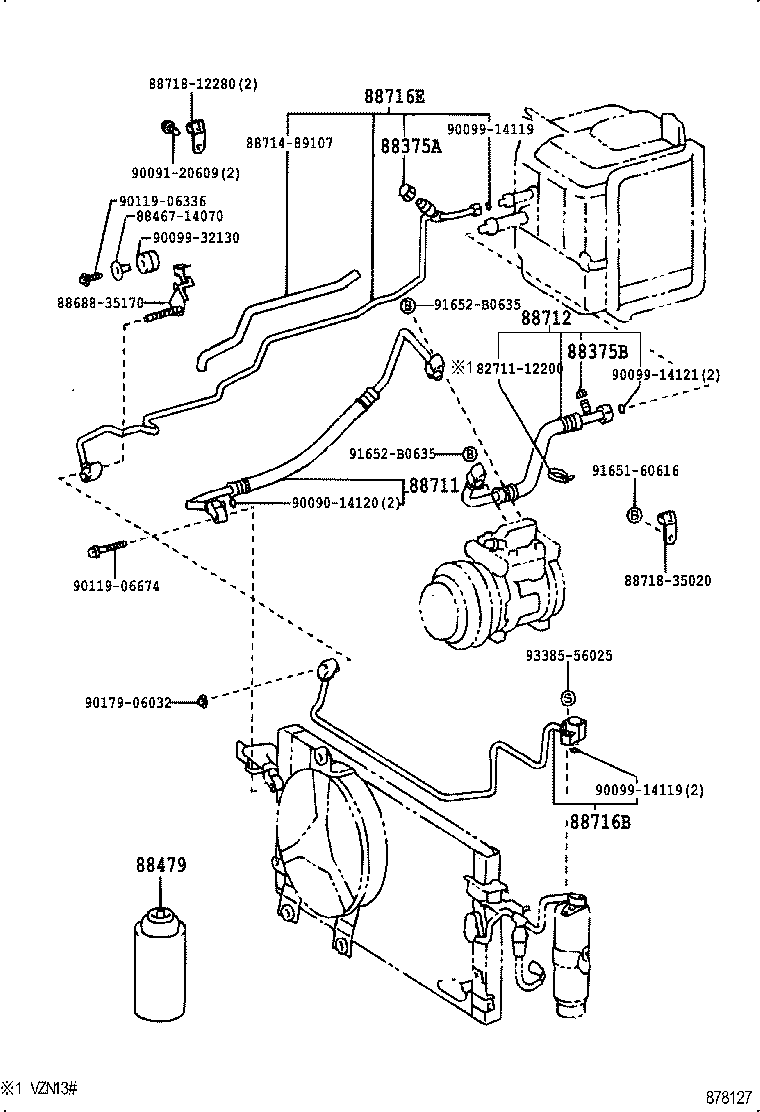

ILLUST NO. 1 OF 2(8904-9108)RN13#,VZN13#
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 88635-89107 |
RN13#,VZN130 |
1 | ||
| 88635-89107 |
RN13#,VZN13# |
1 | ||
| 88635-35010 |
RN13#,VZN13# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12030 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88453-28010 |
RN130 DEALER OPTION |
1 | ||
| 88453-28010 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88453-12030 |
RN130,VZN130 |
1 | ||
| 88453-12030 |
RN130 W(AIR CONDITIONER) |
1 | ||
| 88453-28010 |
RN13#,VZN13# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-35030 |
RN13#,VZN130 |
1 | ||
| 88454-35030 |
RN13#,VZN13# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89117 |
RN13#,VZN13# |
1 | ||
| 88460-89117 |
RN13#,VZN130 |
1 | ||
| 88460-35060 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35080 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35110 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-89117 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-89103 |
RN130,VZN130 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RN13#,VZN13# |
1 | ||
| 88471-16040 |
RN130,VZN130;RN10#,110,131,VZN100,110,131..CND |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88472-35010 |
RN13#,VZN13# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-89101 |
RN130,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN13# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-89101 |
RN13#,VZN13# |
1 | ||
| 88590-89101 |
RN13#,VZN130 |
1 | ||
| 88590-89102 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88590-89101 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
RN10#,110,130,VZN10#,110,130 |
1 | ||
| 88723-12010 |
RN10#,110,VZN10#,110,130..USA |
1 | ||
| 88723-17030 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88723-17030 |
RN13#,VZN130 |
1 | ||
| 88723-12010 |
RN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12030 |
RN130,VZN130 |
1 | ||
| 88645-20010 |
RN130,VZN130 NO.2 |
1 | ||
| 88645-12030 |
RN130,VZN130 |
1 | ||
| 88645-12030 |
RN130,VZN130 NO.1 |
1 | ||
| 88645-89103 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-89121 |
RN13#,VZN130 |
1 | ||
| 88710-35010 |
RN13#,VZN13# |
1 | ||
| 88710-89121 |
RN13#,VZN13# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-17010 |
RN13# |
1 | ||
| 88723-17030 |
RN13#,VZN13# |
1 | ||
| 88723-35030 |
RN13#,VZN13# ENGLISH |
1 | ||
| 88723-35040 |
RN13#,VZN13# FRENCH |
1 | ||
| 88723-35030 |
RN130,VZN130 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN101,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| Common parts | ||||
| 88467-95701 | ||||
| 88688-89131 | ||||
| 88688-89132 | ||||
| 88688-89135 | ||||
| 88688-89136 | ||||
| 88688-89137 | ||||
| 89467-14070 | ||||
| 90091-20502 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 91656-61025 | ||||
| 93381-58045 | ||||
| 93385-55012 | ||||
| Linked diagrams | ||||
| 5353 | ||||
ILLUST NO. 1 OF 2(9108- )RN13#,VZN13#
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 88635-89107 |
RN13#,VZN130 |
1 | ||
| 88635-89107 |
RN13#,VZN13# |
1 | ||
| 88635-35010 |
RN13#,VZN13# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12030 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88453-28010 |
RN130 DEALER OPTION |
1 | ||
| 88453-28010 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88453-12030 |
RN130,VZN130 |
1 | ||
| 88453-12030 |
RN130 W(AIR CONDITIONER) |
1 | ||
| 88453-28010 |
RN13#,VZN13# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-35030 |
RN13#,VZN130 |
1 | ||
| 88454-35030 |
RN13#,VZN13# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89117 |
RN13#,VZN13# |
1 | ||
| 88460-89117 |
RN13#,VZN130 |
1 | ||
| 88460-35060 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35080 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35110 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-89117 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RN13#,VZN13# |
1 | ||
| 88471-16040 |
RN130,VZN130;RN10#,110,131,VZN100,110,131..CND |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88472-35010 |
RN13#,VZN13# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-89101 |
RN130,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN13# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-89101 |
RN13#,VZN13# |
1 | ||
| 88590-89101 |
RN13#,VZN130 |
1 | ||
| 88590-89102 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88590-89101 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35100 |
RN130,VZN130 |
1 | ||
| 88716-35110 |
RN13#,VZN13# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-17010 |
RN13# |
1 | ||
| 88723-17030 |
RN13#,VZN13# |
1 | ||
| 88723-35030 |
RN13#,VZN13# ENGLISH |
1 | ||
| 88723-35040 |
RN13#,VZN13# FRENCH |
1 | ||
| 88723-35030 |
RN130,VZN130 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN101,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| Common parts | ||||
| 88467-95701 | ||||
| 88688-35060 | ||||
| 88688-35070 | ||||
| 88688-35130 | ||||
| 88688-89131 | ||||
| 88688-89135 | ||||
| 89467-14070 | ||||
| 90091-20502 | ||||
| 90091-20609 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 91656-61025 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||
ILLUST NO. 1 OF 2(8904-9108)RN13#,VZN13#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 88635-89107 |
RN13#,VZN130 |
1 | ||
| 88635-89107 |
RN13#,VZN13# |
1 | ||
| 88635-35010 |
RN13#,VZN13# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12030 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88453-28010 |
RN130 DEALER OPTION |
1 | ||
| 88453-28010 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88453-12030 |
RN130,VZN130 |
1 | ||
| 88453-12030 |
RN130 W(AIR CONDITIONER) |
1 | ||
| 88453-28010 |
RN13#,VZN13# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-35030 |
RN13#,VZN130 |
1 | ||
| 88454-35030 |
RN13#,VZN13# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89117 |
RN13#,VZN13# |
1 | ||
| 88460-89117 |
RN13#,VZN130 |
1 | ||
| 88460-35060 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35080 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35110 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-89117 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-89103 |
RN130,VZN130 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RN13#,VZN13# |
1 | ||
| 88471-16040 |
RN130,VZN130;RN10#,110,131,VZN100,110,131..CND |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88472-35010 |
RN13#,VZN13# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-89101 |
RN130,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN13# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-89101 |
RN13#,VZN13# |
1 | ||
| 88590-89101 |
RN13#,VZN130 |
1 | ||
| 88590-89102 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88590-89101 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
RN10#,110,130,VZN10#,110,130 |
1 | ||
| 88723-12010 |
RN10#,110,VZN10#,110,130..USA |
1 | ||
| 88723-17030 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88723-17030 |
RN13#,VZN130 |
1 | ||
| 88723-12010 |
RN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12030 |
RN130,VZN130 |
1 | ||
| 88645-20010 |
RN130,VZN130 NO.2 |
1 | ||
| 88645-12030 |
RN130,VZN130 |
1 | ||
| 88645-12030 |
RN130,VZN130 NO.1 |
1 | ||
| 88645-89103 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-89121 |
RN13#,VZN130 |
1 | ||
| 88710-35010 |
RN13#,VZN13# |
1 | ||
| 88710-89121 |
RN13#,VZN13# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-17010 |
RN13# |
1 | ||
| 88723-17030 |
RN13#,VZN13# |
1 | ||
| 88723-35030 |
RN13#,VZN13# ENGLISH |
1 | ||
| 88723-35040 |
RN13#,VZN13# FRENCH |
1 | ||
| 88723-35030 |
RN130,VZN130 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN101,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-14070 | ||||
| 88467-89102 | ||||
| 88688-89131 | ||||
| 88688-89132 | ||||
| 88688-89133 | ||||
| 88688-89135 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 91651-G0850 | ||||
| 91656-61025 | ||||
| 91656-F0616 | ||||
| Linked diagrams | ||||
| 5353 | ||||
ILLUST NO. 1 OF 2(9108- )RN13#,VZN13#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 88635-89107 |
RN13#,VZN130 |
1 | ||
| 88635-89107 |
RN13#,VZN13# |
1 | ||
| 88635-35010 |
RN13#,VZN13# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12030 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88453-28010 |
RN130 DEALER OPTION |
1 | ||
| 88453-28010 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88453-12030 |
RN130,VZN130 |
1 | ||
| 88453-12030 |
RN130 W(AIR CONDITIONER) |
1 | ||
| 88453-28010 |
RN13#,VZN13# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-35030 |
RN13#,VZN130 |
1 | ||
| 88454-35030 |
RN13#,VZN13# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89117 |
RN13#,VZN13# |
1 | ||
| 88460-89117 |
RN13#,VZN130 |
1 | ||
| 88460-35060 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35080 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88460-35110 |
RN130,VZN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88460-89117 |
RN130,VZN130 W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RN13#,VZN13# |
1 | ||
| 88471-16040 |
RN130,VZN130;RN10#,110,131,VZN100,110,131..CND |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88472-35010 |
RN13#,VZN13# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-89101 |
RN130,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN130 |
1 | ||
| 88550-89101 |
RN13#,VZN13# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-89101 |
RN13#,VZN13# |
1 | ||
| 88590-89101 |
RN13#,VZN130 |
1 | ||
| 88590-89102 |
RN130,VZN130 MAKER OPTION |
1 | ||
| 88590-89101 |
RN130,VZN130 DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35100 |
RN130,VZN130 |
1 | ||
| 88716-35110 |
RN13#,VZN13# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-17010 |
RN13# |
1 | ||
| 88723-17030 |
RN13#,VZN13# |
1 | ||
| 88723-35030 |
RN13#,VZN13# ENGLISH |
1 | ||
| 88723-35040 |
RN13#,VZN13# FRENCH |
1 | ||
| 88723-35030 |
RN130,VZN130 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88578-89111 |
RN130 |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA |
2 | ||
| 88578-89103 |
RN10#,110,130,VZN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
2 | ||
| 88578-89111 |
RN10#,110,130,VZN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
2 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN10#,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN101,110,130..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89125 |
RN130 W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88578-89119 |
RN10#,110,130..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
RN13#,VZN130 |
2 | ||
| 88578-89128 |
RN13#,VZN13# |
2 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 88892-89116 |
RN13#,VZN10#,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN130 LH |
1 | ||
| 88892-89117 |
RN13#,VZN10#,110,13# LH |
1 | ||
| 88892-89116 |
RN10#,110,13#,VZN100,110,13# RH |
1 | ||
| 88892-89117 |
RN10#,110,13#,VZN100,110,13# LH |
1 | ||
| Common parts | ||||
| 88467-89102 | ||||
| 88467-95701 | ||||
| 88688-35060 | ||||
| 88688-35070 | ||||
| 88688-35130 | ||||
| 88688-89131 | ||||
| 88688-89135 | ||||
| 89467-14070 | ||||
| 90091-20502 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 91656-61025 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
