RN130L-GKLSEA (1989)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 3 OF 3(8808-9511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
RN13#,VZN13# |
1 | ||
| 04477-60010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 04477-60010 |
RN10#,110,13#,VZN100,110,13# |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-35210 |
RN13# |
1 | ||
| 47910-35290 |
RN13# W(*66) |
1 | ||
| 47910-35280 |
RN13# |
1 | ||
| 47910-35210 |
RN110,13#,VZN110,13# |
1 | ||
| 47910-35220 |
RN13# W(*66) |
1 | ||
| 47910-35220 |
RN110,VZN110,13# |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-35100 |
RN13#,VZN13# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35090 |
RN13#,VZN13# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35080 |
RN13#,VZN13# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35040 |
RN13#,VZN13# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-35020 |
RN13#,VZN13# |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90179-10016 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

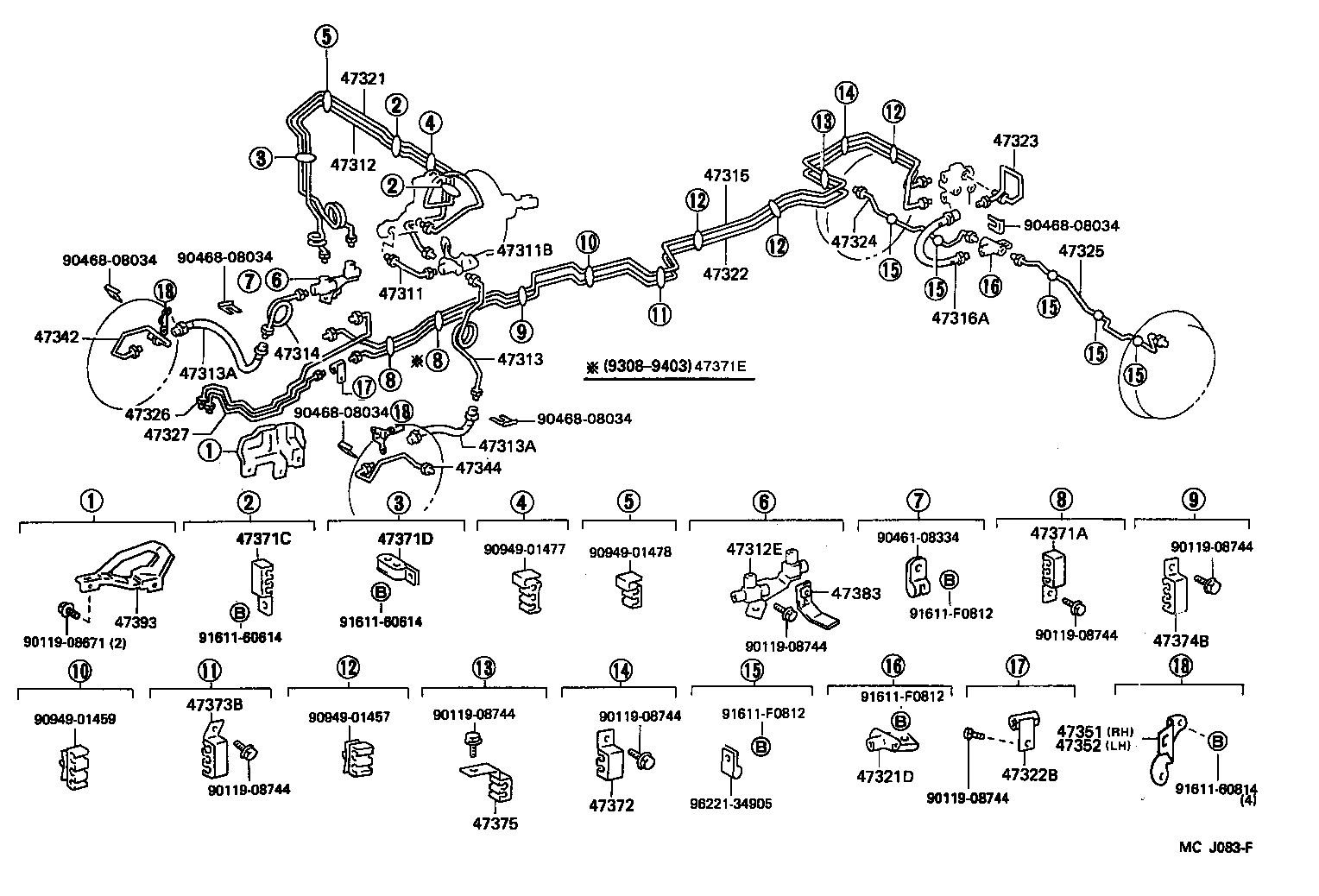

ILLUST NO. 1 OF 3(8908-9511)RN13#,VZN13#
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35440 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10111 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10233 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 90413-10233 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
1 | ||
| 90413-10233 |
RN130..G;RN10#,110,131,VZN100,110,13# |
1 | ||
| 90413-10233 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35590 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47313-35790 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
RN130..G;RN10#,110,131,VZN100,110,13# |
2 | ||
| 96950-33555 |
RN13#,VZN13# |
2 | ||
| 96950-33656 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
RN130..G;RN10#,110,131,VZN100,110,13# |
2 | ||
| 96950-33555 |
RN13#,VZN13# |
2 | ||
| 96950-33656 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35240 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47314-35270 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35260 |
RN13#,VZN13# |
1 | ||
| 47315-35261 |
RN13#,VZN13# |
1 | ||
| 47315-35240 |
RN13#,VZN13# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02599 |
RN13#,VZN13# |
1 | ||
| 90947-02600 |
RN13#,VZN13# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35560 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10235 |
RN13#,VZN13# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35470 |
RN13#,VZN13# |
1 | ||
| 47322-35470 |
RN13# |
1 | ||
| 47322-35660 |
RN13# |
1 | ||
| 47322-35650 |
RN13# W(2WHEEL*66) |
1 | ||
| 47322-35661 |
RN13# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10174 |
RN13#,VZN13# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35110 |
RN13#,VZN13# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35220 |
RN13#,VZN13# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35230 |
RN13#,VZN13# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-35040 |
RN13#,VZN13# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-35030 |
RN13#,VZN13# |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35100 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35100 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47352-35170 |
RN13#,VZN13# |
1 | ||
| 47352-35170 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47352-35170 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47354-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47354-35080 |
RN10#,110..G;RN101,110..4FC;RN13#,VZN10#,110,13# |
1 | ||
| 47354-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35080 |
RN10#,13#,VZN10#,13# |
2 | ||
| 47371-35080 |
RN13# |
1 | ||
| 47371-35080 |
RN10#,13#,VZN100,13# |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-35130 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-35220 |
RN13#,VZN13# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35030 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-35120 |
RN13#,VZN13# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-35050 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35120 |
RN13#,VZN13# |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-35010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35110 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
1 | ||
| 47393-35110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47393-35110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47393-35110 |
RN130..G;RN10#,110,131,VZN100,110,13# |
1 | ||
| Common parts | ||||
| 90119-08671 | ||||
| 90119-08744 | ||||
| 90461-08334 | ||||
| 90468-08034 | ||||
| 90949-01457 | ||||
| 90949-01459 | ||||
| 90949-01477 | ||||
| 90949-01478 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||
ILLUST NO. 2 OF 3(8908-9511)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-35030 |
RN101,110,13#..SR5 |
1 | ||
| 44510-35010 |
VZN100,110,13#..SR5 |
1 | ||
| 44510-35010 |
VZN10#,110,13# |
1 | ||
| 44510-35030 |
RN10#,110,13# |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-35030 |
RN101,110,13#..SR5 |
1 | ||
| 44510-35010 |
VZN100,110,13#..SR5 |
1 | ||
| 44510-35010 |
VZN10#,110,13# |
1 | ||
| 44510-35030 |
RN10#,110,13# |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-35010 |
RN101,110,13#,VZN100,110,13#..SR5 |
1 | ||
| 44591-35010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44591-34020 |
RN10#,110,13#,VZN100,110,13# |
1 | ||
| Common parts | ||||
| 90119-06547 | ||||
| 90119-08667 | ||||
| 90179-05003 | ||||
| 90179-06074 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 93319-15008 | ||||
ILLUST NO. 1 OF 3(8808-9511)RN13#,VZN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35440 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10111 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10233 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 90413-10233 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
1 | ||
| 90413-10233 |
RN130..G;RN10#,110,131,VZN100,110,13# |
1 | ||
| 90413-10233 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35590 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47313-35790 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
RN130..G;RN10#,110,131,VZN100,110,13# |
2 | ||
| 96950-33555 |
RN13#,VZN13# |
2 | ||
| 96950-33656 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
RN130..G;RN10#,110,131,VZN100,110,13# |
2 | ||
| 96950-33555 |
RN13#,VZN13# |
2 | ||
| 96950-33656 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 96950-33656 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35240 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47314-35270 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35260 |
RN13#,VZN13# |
1 | ||
| 47315-35261 |
RN13#,VZN13# |
1 | ||
| 47315-35240 |
RN13#,VZN13# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02599 |
RN13#,VZN13# |
1 | ||
| 90947-02600 |
RN13#,VZN13# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35560 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10235 |
RN13#,VZN13# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35470 |
RN13#,VZN13# |
1 | ||
| 47322-35470 |
RN13# |
1 | ||
| 47322-35660 |
RN13# |
1 | ||
| 47322-35650 |
RN13# W(2WHEEL*66) |
1 | ||
| 47322-35661 |
RN13# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35110 |
RN13#,VZN13# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35220 |
RN13#,VZN13# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35230 |
RN13#,VZN13# |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35100 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35100 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47352-35170 |
RN13#,VZN13# |
1 | ||
| 47352-35170 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47352-35170 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47354-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47354-35080 |
RN10#,110..G;RN101,110..4FC;RN13#,VZN10#,110,13# |
1 | ||
| 47354-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35080 |
RN10#,13#,VZN10#,13# |
2 | ||
| 47371-35080 |
RN13# |
1 | ||
| 47371-35080 |
RN10#,13#,VZN100,13# |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-35130 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-35220 |
RN13#,VZN13# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35030 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-35120 |
RN13#,VZN13# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-35050 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35120 |
RN13#,VZN13# |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-35010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35110 |
VZN10#,110..IV3;RN10#,110,13#,VZN13# |
1 | ||
| 47393-35110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47393-35110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 47393-35110 |
RN130..G;RN10#,110,131,VZN100,110,13# |
1 | ||
| Common parts | ||||
| 90119-08671 | ||||
| 90119-08744 | ||||
| 90468-08034 | ||||
| 90949-01457 | ||||
| 90949-01458 | ||||
| 90949-01459 | ||||
| 90949-01477 | ||||
| 90949-01478 | ||||
| 90949-01576 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
