RN130L-GJMSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN13#

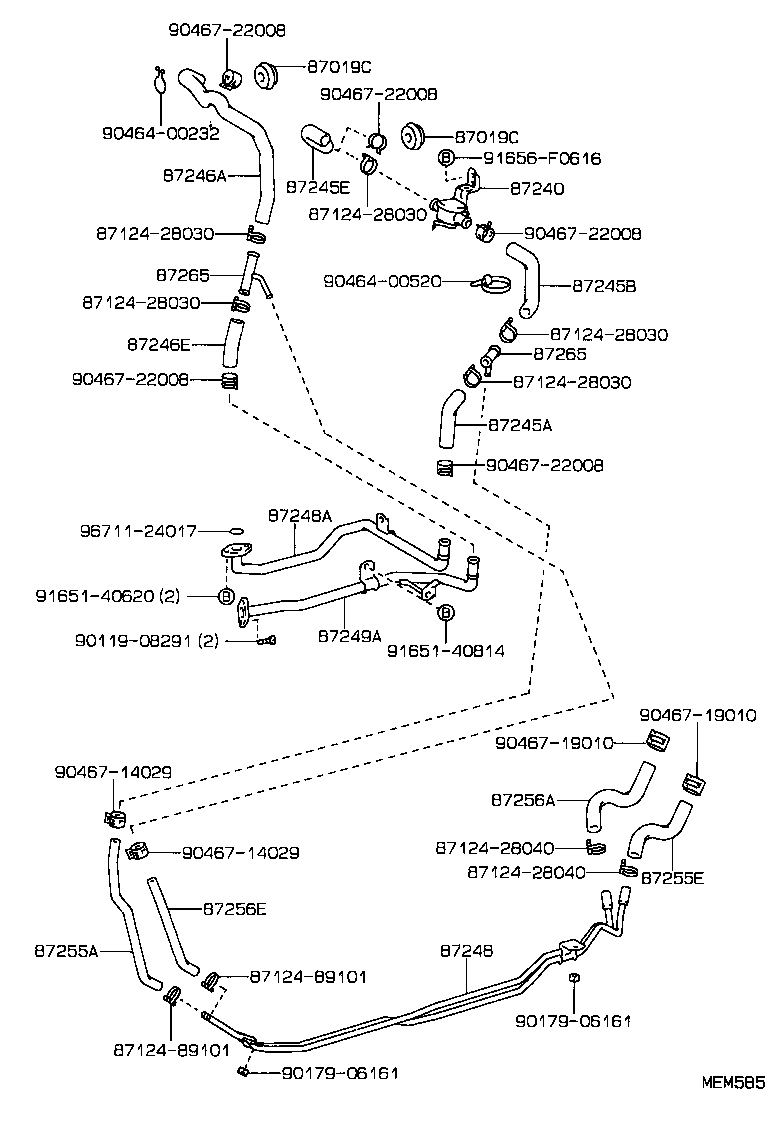

Click highlighted areas on diagram

W(REAR HEATER)

diagram 87019C 87019C 8712428030 8712428030 8712428030 8712428030 8712428030 8712428040 8712428040 8712489101 8712489101 87240 87245A 87245B 87245E 87246A 87246E 87248 87248A 87249A 87255A 87255E 87256A 87256E 87265 87265 9011908291 9017906161 9017906161 9046400232 9046400520 9046714029 9046714029 9046719010 9046719010 9046722008 9046722008 9046722008 9046722008 9046722008 9165140620 9165140814 91656F0616 9671124017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN10#,110,13#,VZN10#,110,13#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89229

VZN10#,110,130

 1
87245-89289

VZN10#,110,130

 1
87245-89218

RN10#,110,130

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN10#,110,13#,VZN10#,110,13#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89260

VZN10#,110,13#

 1
87245-89222

VZN10#,110,130

 1
87245-89219

RN10#,110,130

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89205

VZN10#,110,130

 1
87245-89264

RN13#

 1
87245-89273

VZN10#,110,13#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14280

RN10#,110,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-89121

RN10#,110,13#

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-89107

VZN10#,110,130

 1
87265-89117

VZN10#,110,130

 1
87265-89110

RN13#

INLET

 1
87265-89111

RN13#

W(RR HEATER),OUTLET

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-89107

VZN10#,110,130

 1
87265-89117

VZN10#,110,130

 1
87265-89110

RN13#

INLET

 1
87265-89111

RN13#

W(RR HEATER),OUTLET

 1
Common parts
87124-28030
87124-28040
87124-89101
90119-08291
90179-06161
90464-00232
90464-00520
90467-14029
90467-19010
90467-22008
91651-40620
91651-40814
91656-F0616
96711-24017
