RN121L-RKMSEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

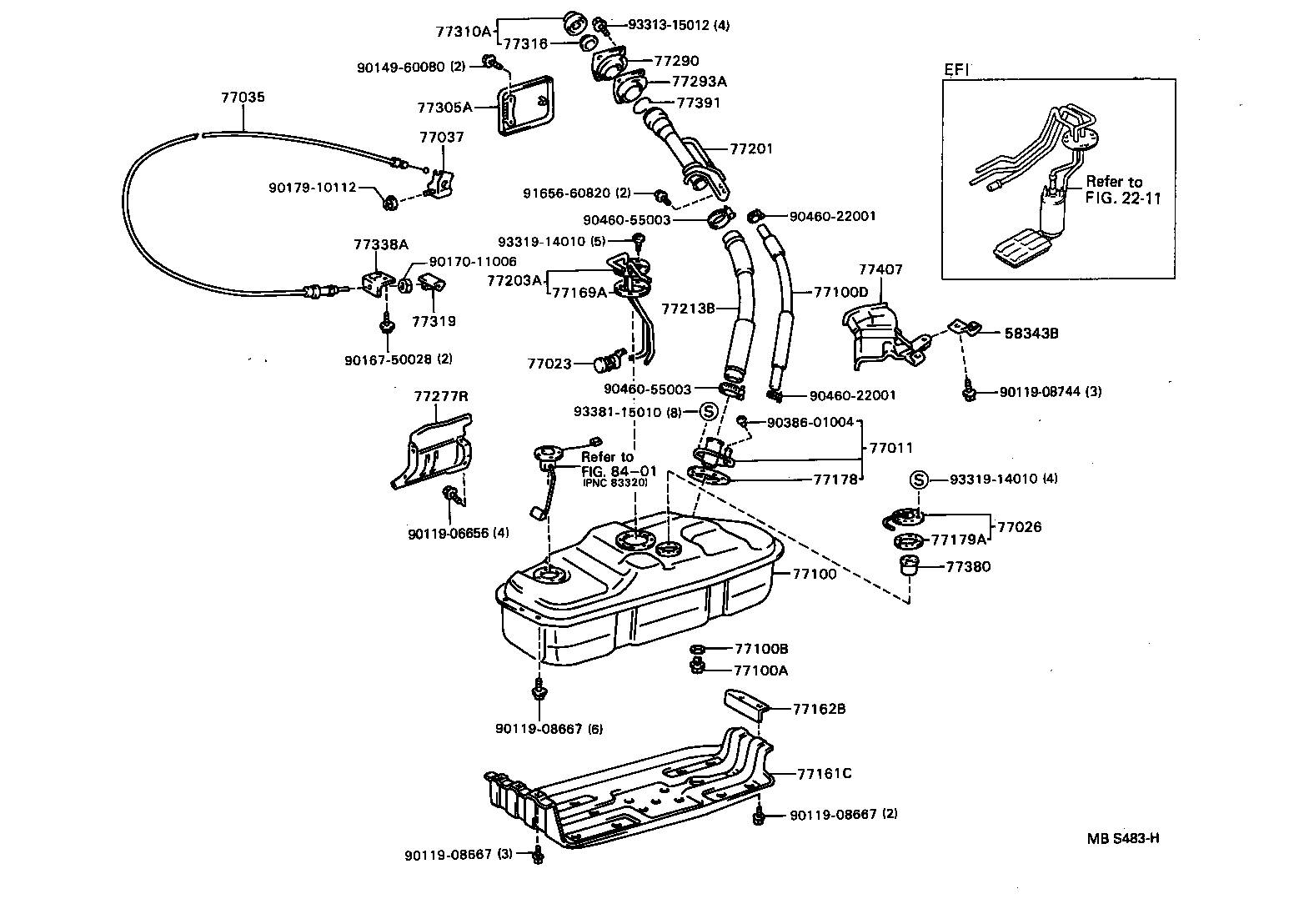

ILLUST NO. 1 OF 2(8904- )RN12#,VZN120..JPP

Click highlighted areas on diagram

diagram 2211 58343B 77011 77023 77026 77035 77037 77100 77100A 77100B 77100D 77161C 77162B 77169A 77178 77179A 77201 77203A 77213B 77277R 77290 77293A 77305A 77310A 77316 77319 77338A 77380 77391 77407 8401 9011906656 9011908667 9011908667 9011908667 9011908744 9014960080 9016750028 9017011006 9017910112 9038601004 9046022001 9046022001 9046055003 9046055003 9165660820 9331315012 9331914010 9331914010 9338115010
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-35140

RN12#,VZN120

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RN12#,8#,90,VZN120,85,9#

 1
77310A - CAP ASSY, FUEL TANK
77310-35080

RN12#,8#,90,VZN120,85,9#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

RN12#,8#,90,VZN120,85,9#

 1
77319 - KNOB, FUEL TANK CAP
77319-8910302

RN12#,VZN120

RED,TRIM3#

 1
77319-8910306

RN12#,VZN120

BROWN,TRIM4#

 1
77319-8910303

RN12#,VZN120

GRAY,TRIM1#

 1
77319-8910304

RN12#,VZN120

BLUE,TRIM8#

 1
Common parts
90119-06656
90119-08667
90119-08744
90149-60080
90167-50028
90170-11006
90179-10112
90386-01004
90460-22001
90460-55003
91656-60820
93313-15012
93319-14010
93381-15010
Linked diagrams
2211
8401

ILLUST NO. 2 OF 2(8904- )RN12#..JPP

Click highlighted areas on diagram

diagram 2384135040 4737235050 4737235050 77251B 77255D 77255F 77261D 77261E 77261F 77277A 77281 7728535140 77740 77740A 77751 77754 9011908744 9017906161 9017906161 9040414014 9046110669 9046110722 9046400148 9046400517 9046400554 9046711049 9048018492 9094901289 9161640616 9161640616 9165140814 91656F0820 91656G0618 9613241100 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-35220

RN12#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

RN12#,80..EFI;RN85,90..EFI..USA

*H,L=300

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35040

RN12#,8#,90..EFI

*H,L=600

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-35040

RN12#,8#,90,VZN120,85,9#..EFI

 1
Common parts
23841-35040
47372-35050
77285-35140
90119-08744
90179-06161
90404-14014
90461-10669
90461-10722
90464-00148
90464-00517
90464-00554
90467-11049
90480-18492
90949-01289
91616-40616
91651-40814
91656-F0820
91656-G0618
96132-41100
