RN120L-GKPSEA (1989)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 1 OF 2(8904- )RN12#,VZN120..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-89108 |
RN12#,VZN120 |
16 | ||
| 67867-89108 |
RN12#,VZN120 |
15 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-89106 |
RN12#,VZN120 |
16 | ||
| 67868-89106 |
RN12#,VZN120 |
15 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-89109 |
RN12# *TEM,T=4.0 |
1 | ||
| 68113-89110 |
RN12# *TT,T=4.0,BLUE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-89106 |
RN12# *TT,T=4.0,BLUE |
1 | ||
| 68114-89105 |
RN12# *TEM,T=4.0 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-89102 |
RN12# *TT,T=4.0,BLUE |
1 | ||
| 68123-89101 |
RN12# *TEM,T=4.0 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-89102 |
RN12# *TT,T=4.0,BLUE |
1 | ||
| 68124-89101 |
RN12# *TEM,T=4.0 |
1 | ||
| 68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68212-89101 |
RN12#,VZN120 |
3 | ||
| 68211C - CLIP(FOR REAR DOOR GLASS WEATHERSTRIP) | ||||
| 68211-89111 |
RN12#,VZN120 |
3 | ||
| 68211D - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 68211-89112 |
RN12#,VZN120 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-89103 |
RN12#,VZN120 PLANT NO.P11 |
2 | ||
| 68630-35010 |
RN12#,VZN120 PLANT NO.A51,52 |
2 | ||
| 68630-89103 |
RN12#,VZN120 |
2 | ||
| 75718 - COVER, FRONT DOOR BELT MOULDING END, REAR RH | ||||
| 75718-89102 |
RN12#,VZN120 |
2 | ||
| 75718 - COVER, FRONT DOOR BELT MOULDING END, REAR RH | ||||
| 75718-89102 |
RN12#,VZN120 |
2 | ||
| 75719 - COVER, FRONT DOOR BELT MOULDING END, REAR LH | ||||
| 75719-89102 |
RN12#,VZN120 |
2 | ||
| 75719 - COVER, FRONT DOOR BELT MOULDING END, REAR LH | ||||
| 75719-89102 |
RN12#,VZN120 |
2 | ||
| Common parts | ||||
| 90119-06430 | ||||
| 90151-40018 | ||||
| 90179-06069 | ||||
| 90541-09062 | ||||
| 90950-01620 | ||||
| 91656-40616 | ||||

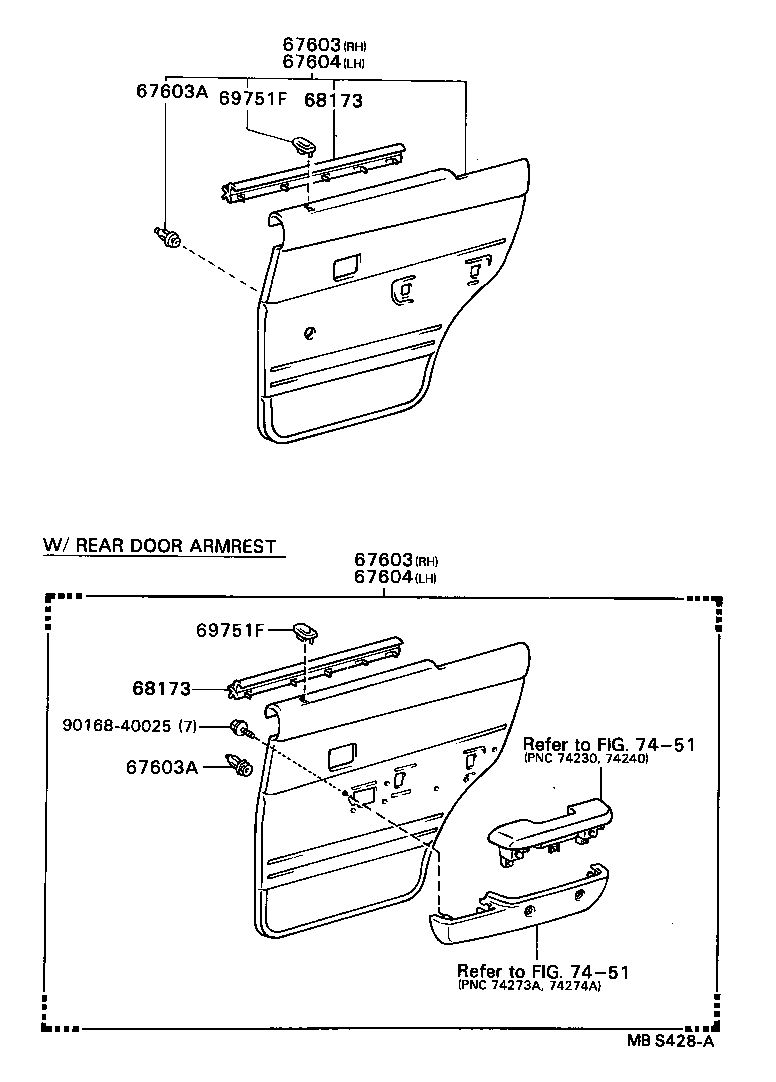

ILLUST NO. 2 OF 2(8904- )RN12#,VZN120..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-8912104 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67630-8912202 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67630-8912102 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67630-8912106 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67630-8912103 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67630-8912203 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67630-8912204 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67630-8912404 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912402 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67630-8912403 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67630-8912406 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912303 |
RN12#,VZN120 W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67630-8912702 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67630-8912604 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67630-8912206 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 67630-8912306 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912802 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67630-8912602 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67630-8912703 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67630-8912304 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912302 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67630-8912803 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67630-8912804 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912606 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67630-8912704 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67630-8912806 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912706 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 67630-8912906 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912904 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912603 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67630-8912902 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-8912104 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67630-8912202 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67630-8912102 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67630-8912106 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67630-8912103 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67630-8912203 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67630-8912204 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67630-8912404 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912402 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67630-8912403 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67630-8912406 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912303 |
RN12#,VZN120 W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67630-8912702 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67630-8912604 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67630-8912206 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 67630-8912306 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912802 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67630-8912602 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67630-8912703 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67630-8912304 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912302 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67630-8912803 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67630-8912804 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912606 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67630-8912704 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67630-8912806 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912706 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 67630-8912906 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67630-8912904 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67630-8912603 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67630-8912902 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-8912204 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67640-8912106 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67640-8912102 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67640-8912402 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8912303 |
RN12#,VZN120 W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67640-8912302 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8912203 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67640-8912202 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67640-8912103 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67640-8912406 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8912306 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8912404 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8912104 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67640-8912304 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8912903 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67640-8912802 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67640-8912803 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67640-8912804 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67640-8912403 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67640-8913203 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67640-8912206 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 67640-8913102 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8913204 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8913104 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8912902 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67640-8913202 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8912806 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67640-8912904 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67640-8913206 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8913106 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8912906 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-8912204 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67640-8912106 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67640-8912102 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67640-8912402 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8912303 |
RN12#,VZN120 W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67640-8912302 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8912203 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67640-8912202 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67640-8912103 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67640-8912406 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8912306 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8912404 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8912104 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67640-8912304 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8912903 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1# |
1 | ||
| 67640-8912802 |
RN12#,VZN120 RED,TRIM3# |
1 | ||
| 67640-8912803 |
RN12#,VZN120 GRAY,TRIM1# |
1 | ||
| 67640-8912804 |
RN12#,VZN120 BLUE,TRIM8# |
1 | ||
| 67640-8912403 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67640-8913203 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 67640-8912206 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 67640-8913102 |
RN12#,VZN120 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8913204 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8913104 |
RN12#,VZN120 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 67640-8912902 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3# |
1 | ||
| 67640-8913202 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),RED,TRIM3# |
1 | ||
| 67640-8912806 |
RN12#,VZN120 BROWN,TRIM4# |
1 | ||
| 67640-8912904 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8# |
1 | ||
| 67640-8913206 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK & SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8913106 |
RN12#,VZN120 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 67640-8912906 |
RN12#,VZN120 W(POWER WINDOW & MAGNET DOOR LOCK),BROWN,TRIM4# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-20060B0 |
RN12#,VZN120 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-20060E0 |
RN12#,VZN120 BROWN,TRIM4# |
2 | ||
| 69751-2006012 |
RN12#,VZN120 RED,TRIM3# |
2 | ||
| 69751-20060J0 |
RN12#,VZN120 MEDIUM BLUE,TRIM8# |
2 | ||
| 69751-1203012 |
RN12#,VZN120 RED,TRIM3# |
2 | ||
| 69751-1203013 |
RN12#,VZN120 GRAY,TRIM1# |
2 | ||
| 69751-1203006 |
RN12#,VZN120 BROWN,TRIM4# |
2 | ||
| 69751-1203024 |
RN12#,VZN120 BLUE,TRIM8# |
2 | ||
| 69751-12030E0 |
RN12#,VZN120 BROWN,TRIM4# |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-20060B0 |
RN12#,VZN120 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-20060E0 |
RN12#,VZN120 BROWN,TRIM4# |
2 | ||
| 69751-2006012 |
RN12#,VZN120 RED,TRIM3# |
2 | ||
| 69751-20060J0 |
RN12#,VZN120 MEDIUM BLUE,TRIM8# |
2 | ||
| 69751-1203012 |
RN12#,VZN120 RED,TRIM3# |
2 | ||
| 69751-1203013 |
RN12#,VZN120 GRAY,TRIM1# |
2 | ||
| 69751-1203006 |
RN12#,VZN120 BROWN,TRIM4# |
2 | ||
| 69751-1203024 |
RN12#,VZN120 BLUE,TRIM8# |
2 | ||
| 69751-12030E0 |
RN12#,VZN120 BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 7451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
