RN106L-TRPDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4FC

Click highlighted areas on diagram

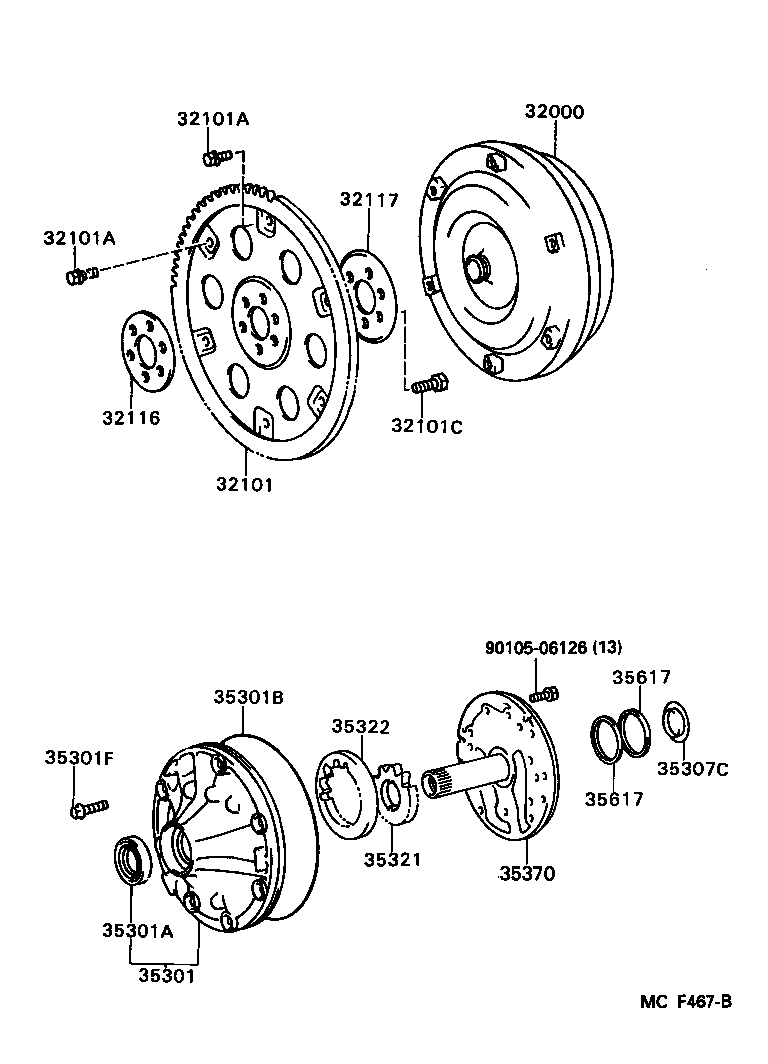

diagram 32000 32101 32101A 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307C 35321 35322 35370 35617 35617 9010506126
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-35050

RN10#,110,13#..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-20050

RN10#,110,13#..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

RN10#,110,13#..4FC

*8-1.25PX12-8.4

 1
90119-08498

RN10#,110,13#..4FC

*8-1.25PX12-8

 5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

RN10#,110,13#..4FC

*8-1.25PX12-8.4

 1
90119-08498

RN10#,110,13#..4FC

*8-1.25PX12-8

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90913-01011

RN10#,110,13#..4FC

*17-1.25PX26-18

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-20011

RN10#,110,13#..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-20021

RN10#,110,13#..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-35010

RN106,110,13#,VZN105,110,13#..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029

RN10#,110,13#,VZN105,110,13#..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

RN10#,110,13#,VZN105,110,13#..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

RN10#,110,13#,VZN105,110,13#..4FC

*8-1.25PX35-35

 7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30020

RN10#,110,13#,VZN105,110,13#..4FC

T=3.7

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12050

RN106,110,13#,VZN105,110,13#..4FC

T=10.721-10.730

 1
35321-12060

RN106,110,13#,VZN105,110,13#..4FC

T=10.731-10.740

 1
35321-12040

RN106,110,13#,VZN105,110,13#..4FC

T=10.710-10.720

 1
35321-12030

RN106,110,13#,VZN105,110,13#..4FC

T=10.700-10.709

 1
35321-12020

RN106,110,13#,VZN105,110,13#..4FC

T=10.690-10.699

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-35010

RN106,110,13#,VZN105,110,13#..4FC

T=10.690-10.740

 1
35370 - SHAFT ASSY, STATOR
35370-30031

RN10#,110,13#,VZN105,110,13#..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

RN10#,110,13#,VZN105,110,13#..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

RN10#,110,13#,VZN105,110,13#..4FC

 2
Common parts
90105-06126
