RN106L-TRPDEA (1988)
Toyota 4-Runner Truck (Jpp)
(8808- )R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33105-60010 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3507003 |
RN10#,110,13#,VZN105,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 33542-3507002 |
RN10#,110,13#,VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 33542-3507006 |
RN10#,110,13#,VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 33542-3507004 |
RN10#,110,13#,VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33501-35250 |
RN106,110,13#..4FC |
1 | ||
| 33530-35190 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60030 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33555-35070 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT) | ||||
| 33584-60010 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
(8808-8908)RN106,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
RN10#,110,13#..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-35160 |
RN10#,110,13#..4FC |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-35110 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33741-35200 |
RN106,110,13#..4FC |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
RN106,110,13#,VZN105,110,13#..4FC |
4 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
RN106,110,13#,VZN105,110,13#..4FC |
4 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
RN106,110,13#,VZN105,110,13#..4FC |
4 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-35090 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33769A - SPRING, CROSS SHAFT END | ||||
| 33769-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33770P - COLLER (FOR CROSS SHAFT) | ||||
| 90387-08058 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
RN106,110,13#,VZN105,110,13#..4FC |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
RN106,110,13#,VZN105,110,13#..4FC |
4 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-27020 |
RN106,110,13#,VZN105,110,13#..4FC UPR |
1 | ||
| 33775-35010 |
RN106,110,13#,VZN105,110,13#..4FC LWR |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-27020 |
RN106,110,13#,VZN105,110,13#..4FC UPR |
1 | ||
| 33775-35010 |
RN106,110,13#,VZN105,110,13#..4FC LWR |
1 | ||
| 33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33776-35100 |
RN106,110,13#..4FC |
1 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90468-14004 | ||||
| 90468-14021 | ||||
| 91611-40814 | ||||
| 91661-40830 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 96411-11800 | ||||

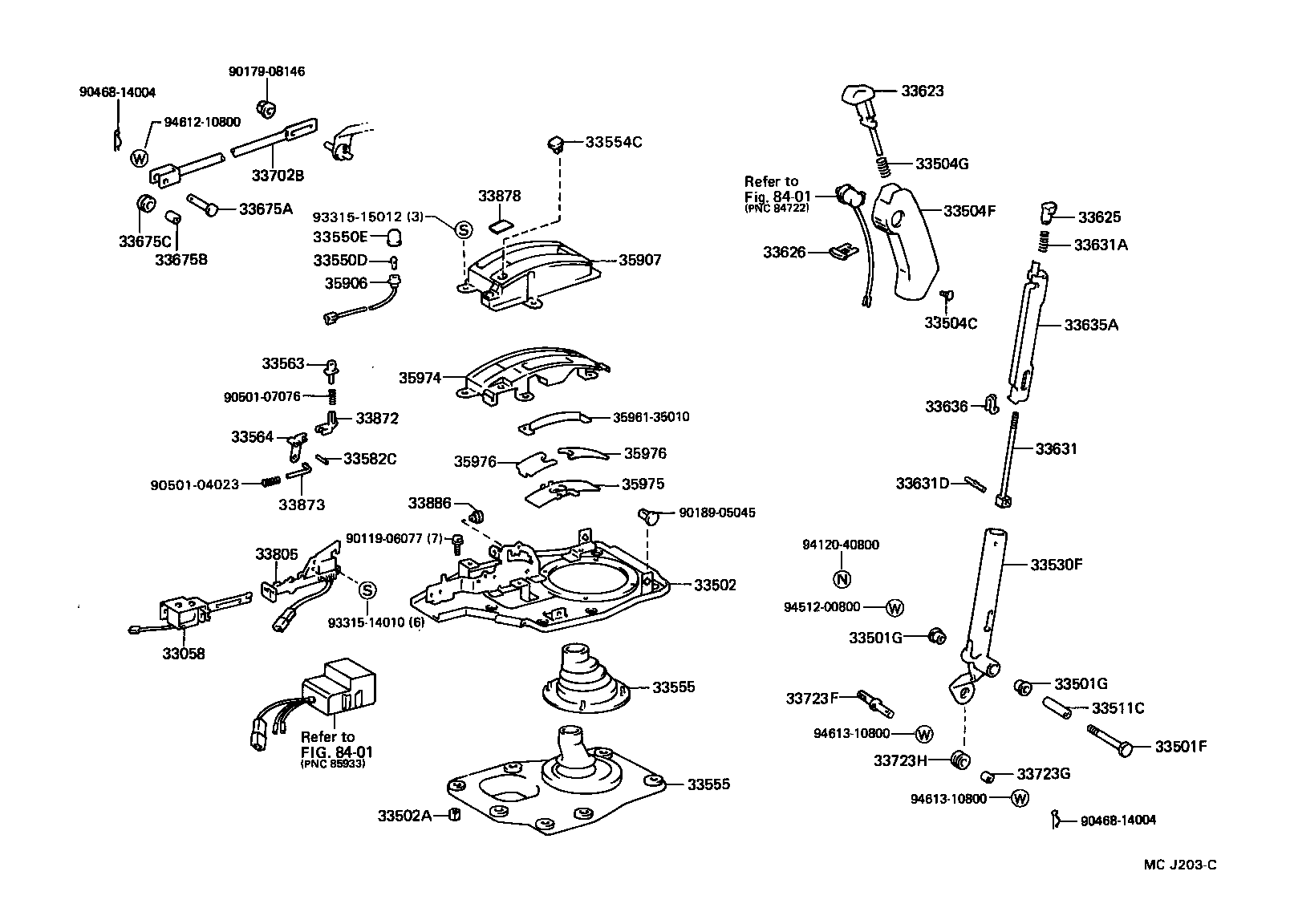

(8908- )RN10#,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-35030 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-35140 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
RN106,110,13#,VZN105,110,13#..4FC OD=8.8 |
6 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
RN106,110,13#,VZN105,110,13#..4FC |
4 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3507003 |
RN10#,110,13#,VZN105,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 33542-3507002 |
RN10#,110,13#,VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 33542-3507006 |
RN10#,110,13#,VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 33542-3507004 |
RN10#,110,13#,VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 33504G - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) | ||||
| 90501-07009 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33501-35250 |
RN106,110,13#..4FC |
1 | ||
| 33530-35190 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
RN10#,110,13#,VZN105,110,13#..4FC 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04014 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60030 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33555-35070 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60030 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33555-35070 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-35060 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33582C - PIN, STRAIGHT (FOR FLOOR SHIFT LOCK PLATE STOPPER) | ||||
| 90250-03065 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3502006 |
RN10#,110,13#,VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 33623-3502004 |
RN10#,110,13#,VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 33623-3502002 |
RN10#,110,13#,VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 33623-3502003 |
VZN110..4FC..DLX;RN10#,110,13#,VZN105,13#..4FC GRAY,TRIM1# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-35020 |
RN106,110,13#,VZN105,110,13#..4FC TRANSFER SIDE |
1 | ||
| 33625-35040 |
RN106,110,13#,VZN105,110,13#..4FC TRANSMISSION SIDE |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-3502002 |
RN10#,110,13#,VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 33626-3502006 |
RN10#,110,13#,VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 33626-3502003 |
RN10#,110,13#,VZN105,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 33626-3502004 |
RN10#,110,13#,VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-35030 |
RN106,110,13#,VZN105,110,13#..4FC TRANSFER SIDE |
1 | ||
| 33631-12080 |
RN106,110,13#,VZN105,110,13#..4FC TRANSMISSION SIDE |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-35040 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
RN10#,110,13#..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-35160 |
RN10#,110,13#..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 33805 - PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33805-35050 |
RN10#,110,13#..4FC |
1 | ||
| 33805-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33873 - LINK, SHIFT LOCK RELEASE, NO.3 | ||||
| 33873-35020 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-32010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35060 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-35070 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-35070 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-35050 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-35020 |
RN106,110,13#,VZN105,110,13#..4FC TRANSMISSION SIDE |
2 | ||
| 35976-35010 |
RN106,110,13#,VZN105,110,13#..4FC TRANSFER SIDE |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-35020 |
RN106,110,13#,VZN105,110,13#..4FC TRANSMISSION SIDE |
2 | ||
| 35976-35010 |
RN106,110,13#,VZN105,110,13#..4FC TRANSFER SIDE |
1 | ||
| Common parts | ||||
| 35961-35010 | ||||
| 90119-06077 | ||||
| 90179-08146 | ||||
| 90189-05045 | ||||
| 90468-14004 | ||||
| 90501-04023 | ||||
| 90501-07076 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
