RN106L-TRLDEK (1990)

Toyota 4-Runner Truck (Jpp)

Production Aug 1990 - Oct 1994
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9108- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-35030

RN10#,110

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2B080

RN10#,110

 1
88411-35030

RN10#,110

 1
88320 - COMPRESSOR ASSY, COOLER
88320-35270

RN10#,110

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

RN10#,110,13#,VZN130

 1
88403-16011

RN10#,110

 1
88403-16011

RN10#,110,13#

 1
88410 - CLUTCH ASSY, MAGNET
88410-35120

RN10#,110

 1
Common parts
90099-04349
90099-07114
90099-07125

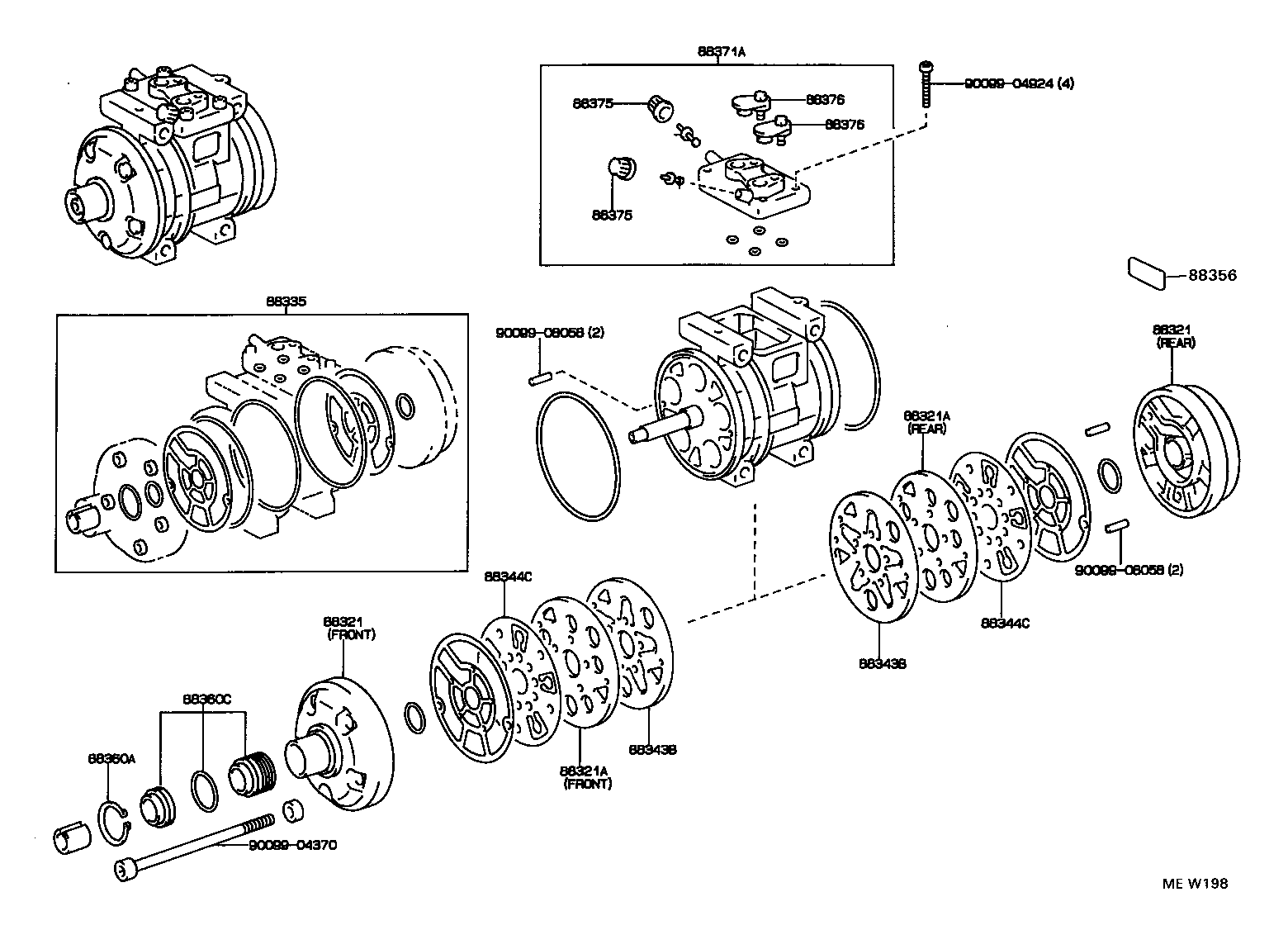

ILLUST NO. 3 OF 3(9108- )

Click highlighted areas on diagram

diagram 88321 88321 88321A 88321A 88335 88343B 88343B 88344C 88344C 88356 88360A 88360C 88371A 88375 88375 88376 88376 9009904370 9009904924 9009908058 9009908058
Part # Description Qty Price
88335 - GASKET KIT, OVERHAUL
88335-2B030

RN10#,110

 1
88335-2B010

RN10#,110,13#,VZN100,110,131

 1
88335-2B030

RN10#,110,VZN100,110..CND

 1
88360C - SEAL ASSY, SHAFT
88360-2B010

RN10#,110,13#,VZN100,110,13#

 1
88360-2B020

RN106

 1
Common parts
90099-04370
90099-04924
90099-08058
