RN101L-TRMSEA3 (1988)
Toyota 4-Runner Truck (Jpp)

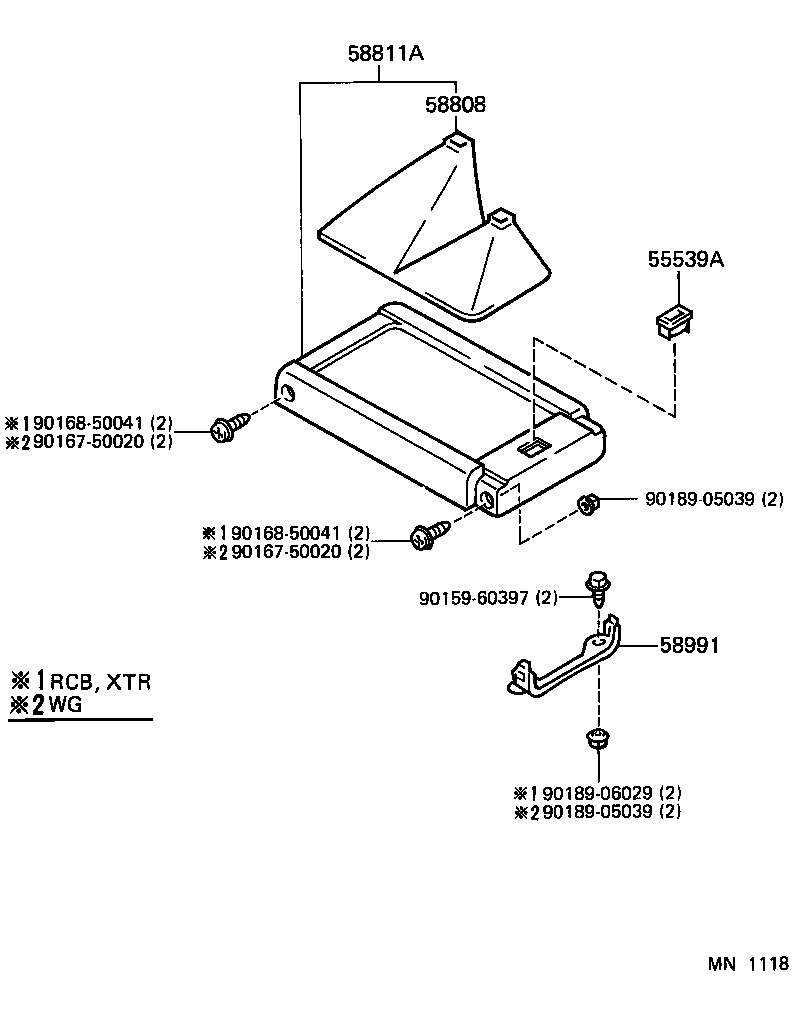

ILLUST NO. 1 OF 2(8808- )5F..SR5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020B0 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-2002012 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 RED,TRIM3# |
1 | ||
| 55539-2002024 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 BLUE,TRIM8# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-8911502 |
RN101,110,13#,VZN100,110,13#..5F..SR5 RED,TRIM3# |
1 | ||
| 58808-8911506 |
RN101,110,13#,VZN100,110,13#..5F..SR5 BROWN,TRIM4# |
1 | ||
| 58808-8911504 |
RN101,110,13#,VZN100,110,13#..5F..SR5 BLUE,TRIM8# |
1 | ||
| 58808-8911503 |
RN101,110,13#,VZN100,110,13#..5F..SR5 GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58802-8911506 |
RN101,110,13#,VZN100,110,13#..5F..SR5 BROWN,TRIM4# |
1 | ||
| 58802-8911503 |
RN101,110,13#,VZN100,110,13#..5F..SR5 GRAY,TRIM1# |
1 | ||
| 58802-8911502 |
RN101,110,13#,VZN100,110,13#..5F..SR5 RED,TRIM3# |
1 | ||
| 58802-8911504 |
RN101,110,13#,VZN100,110,13#..5F..SR5 BLUE,TRIM8# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-89103 |
RN101,110,13#,VZN100,110,13#..5F..SR5 |
1 | ||
| Common parts | ||||
| 90159-60397 | ||||
| 90167-50020 | ||||
| 90168-50041 | ||||
| 90189-05039 | ||||
| 90189-06029 | ||||
ILLUST NO. 2 OF 2(8808- )RN101,110,130..SR5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020B0 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-2002012 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 RED,TRIM3# |
1 | ||
| 55539-2002024 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 BLUE,TRIM8# |
1 | ||
| 58825B - POCKET, CONSOLE BOX | ||||
| 58825-8910903 |
RN101,110,VZN100,110..SR5 GRAY,TRIM1# |
1 | ||
| 58825-8910902 |
RN101,110,VZN100,110..SR5 RED,TRIM3# |
1 | ||
| 58825-8910906 |
RN101,110,VZN100,110..SR5 BROWN,TRIM4# |
1 | ||
| 58825-8910904 |
RN101,110,VZN100,110..SR5 BLUE,TRIM8# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
RN101,110,130,VZN130..SR5 |
2 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-8912502 |
RN101,110..SR5 RED,TRIM3# |
1 | ||
| 58901-8912503 |
RN101,110..SR5 GRAY,TRIM1# |
1 | ||
| 58901-8912506 |
RN101,110..SR5 BROWN,TRIM4# |
1 | ||
| 58901-8912504 |
RN101,110..SR5 BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-8910204 |
RN101,110,130..SR5 BLUE,TRIM8# |
1 | ||
| 58905-8910203 |
RN101,110,130..SR5 GRAY,TRIM1# |
1 | ||
| 58905-8910206 |
RN101,110,130..SR5 BROWN,TRIM4# |
1 | ||
| 58905-8910202 |
RN101,110,130..SR5 RED,TRIM3# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-89102 |
RN101,110,130,VZN100,110,130..SR5 |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-89101 |
RN101,110,130,VZN100,110,130..SR5 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-89101 |
RN101,110,13#,VZN131..SR5 |
2 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
RN101,110,130,VZN100,110,130..SR5 |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
RN101,110,13#,VZN131..SR5 |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90119-06428 | ||||
| 90176-04015 | ||||
| 90201-04317 | ||||
| 93567-14512 | ||||
| 93567-54512 | ||||
