RN101L-TRMDEK (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 2 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39625 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20140 |
RN10#,110,VZN10#,110..5F..DLX |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35100 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35300 |
VZN100,110..DLX;RN10#,110,13#,VZN105 |
1 | ||
| 84310-35320 |
VZN100,110..DLX;RN10#,110,13#,VZN105 W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89110 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84480A - SWITCH ASSY, CLUTCH START CANCEL | ||||
| 84480-35020 |
RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-35220 |
VZN100,110..DLX;RN10#,110,13#,VZN105 W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 84652-35200 |
VZN100,110..DLX;RN10#,110,13#,VZN105 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-89105 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89113 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
RN10#,110,13#,VZN10#,110,130 14V 0.065A |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 82711-35130 | ||||
| 82711-35240 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

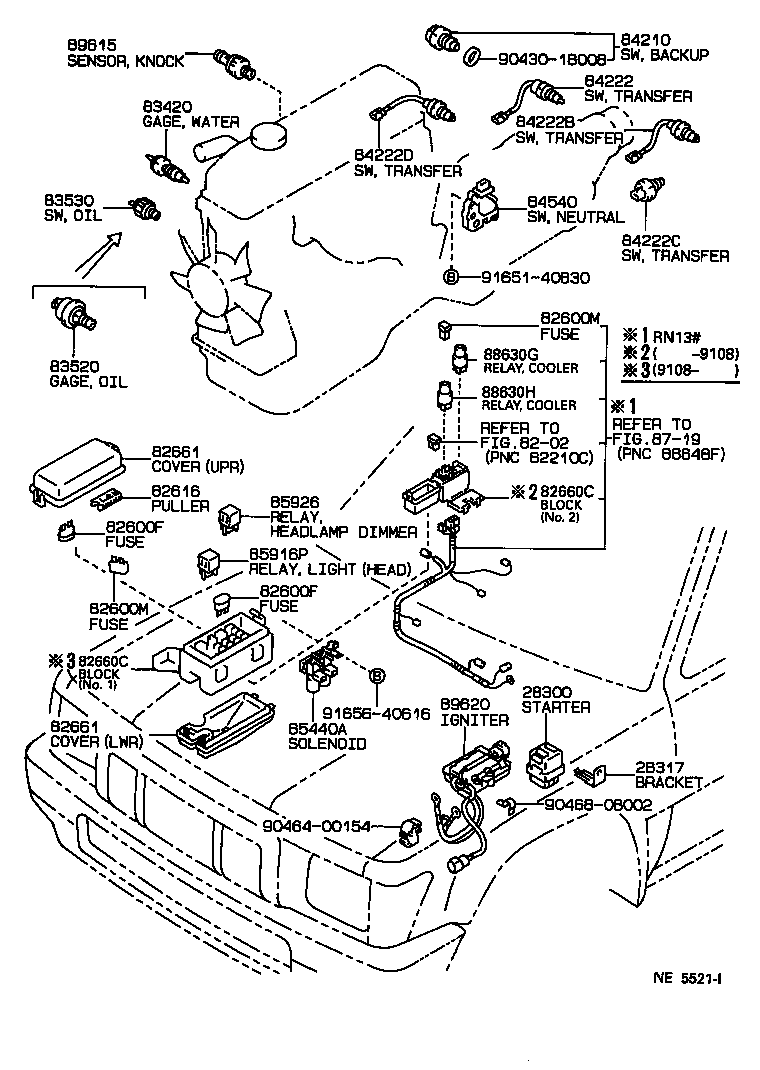

ILLUST NO. 1 OF 4(8808- )RN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
RN10#,110,13#,VZN10#,110,13# 20A,YELLOW |
1 | ||
| 90982-09002 |
RN10#,110,13#,VZN10#,110,13# 10A |
1 | ||
| 90982-09005 |
RN10#,110,13#,VZN10#,110,13# 7.5A |
1 | ||
| 90982-09003 |
RN10#,110,13#,VZN10#,110,13# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
RN10#,110,13#,VZN10#,110,13# 20A,YELLOW |
1 | ||
| 90982-09002 |
RN10#,110,13#,VZN10#,110,13# 10A |
1 | ||
| 90982-09005 |
RN10#,110,13#,VZN10#,110,13# 7.5A |
1 | ||
| 90982-09003 |
RN10#,110,13#,VZN10#,110,13# 15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
RN10#,110,13#,VZN10#,110,13# LWR |
1 | ||
| 82662-89101 |
RN13#..5F;RN10#,110,VZN10#,110,13# UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
RN10#,110,13#,VZN10#,110,13# LWR |
1 | ||
| 82662-89101 |
RN13#..5F;RN10#,110,VZN10#,110,13# UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-55011 |
RN10#,VZN10#..5F;RN110,VZN110..5F..DLX;RN110,13#,VZN110,13#..SR5 YAZAKI |
1 | ||
| 83520-14023 |
RN10#,VZN10#..5F;RN110,VZN110..5F..DLX;RN110,13#,VZN110,13#..SR5 NIPPONDENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35050 |
RN10#,110,13#..W |
1 | ||
| 84222-35060 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-35040 |
RN10#,110,13# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35210 |
RN10#,110,13# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 90464-00154 | ||||
| 90468-08002 | ||||
| 91651-40830 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8719 | ||||
ILLUST NO. 3 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
RN10#,110,13#,VZN10#,110,13# 20A,YELLOW |
1 | ||
| 90982-09002 |
RN10#,110,13#,VZN10#,110,13# 10A |
1 | ||
| 90982-09005 |
RN10#,110,13#,VZN10#,110,13# 7.5A |
1 | ||
| 90982-09003 |
RN10#,110,13#,VZN10#,110,13# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
RN10#,110,13#,VZN10#,110,13# 20A,YELLOW |
1 | ||
| 90982-09002 |
RN10#,110,13#,VZN10#,110,13# 10A |
1 | ||
| 90982-09005 |
RN10#,110,13#,VZN10#,110,13# 7.5A |
1 | ||
| 90982-09003 |
RN10#,110,13#,VZN10#,110,13# 15A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-89109 |
RN10#,110,VZN10#,110..CND;RN101,110,VZN100,110..SR5..USA |
1 | ||
| 82683-89101 |
RN10#,110,VZN10#,110 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-89101 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
RN10#,110,13#,VZN10#,110,13# 30A |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-89108 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-89102 |
RN10#,110,131,VZN10#,110,131..CND |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-89102 |
RN10#,110,131,VZN10#,110,131..CND |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 82715-89129 | ||||
| 90159-50098 | ||||
| 91656-40616 | ||||
| 93560-55014 | ||||
ILLUST NO. 4 OF 4(8808- )RN10#,110,VZN10#,110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80124 |
RN101,VZN100..DLX |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-35010 |
RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-35010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-35020 |
RN10#,110,VZN10#,110 NO.1 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-35020 |
RN10#,110,VZN10#,110 NO.1 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39265 |
RN10#,110,VZN10#,110 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39265 |
RN10#,110,VZN10#,110 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
RN10#,110,VZN10#,110 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
RN10#,110,VZN10#,110 |
1 | ||
| Common parts | ||||
| 82711-35110 | ||||
| 82711-89108 | ||||
| 90159-40155 | ||||
| 90179-08059 | ||||
| 90467-12046 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
