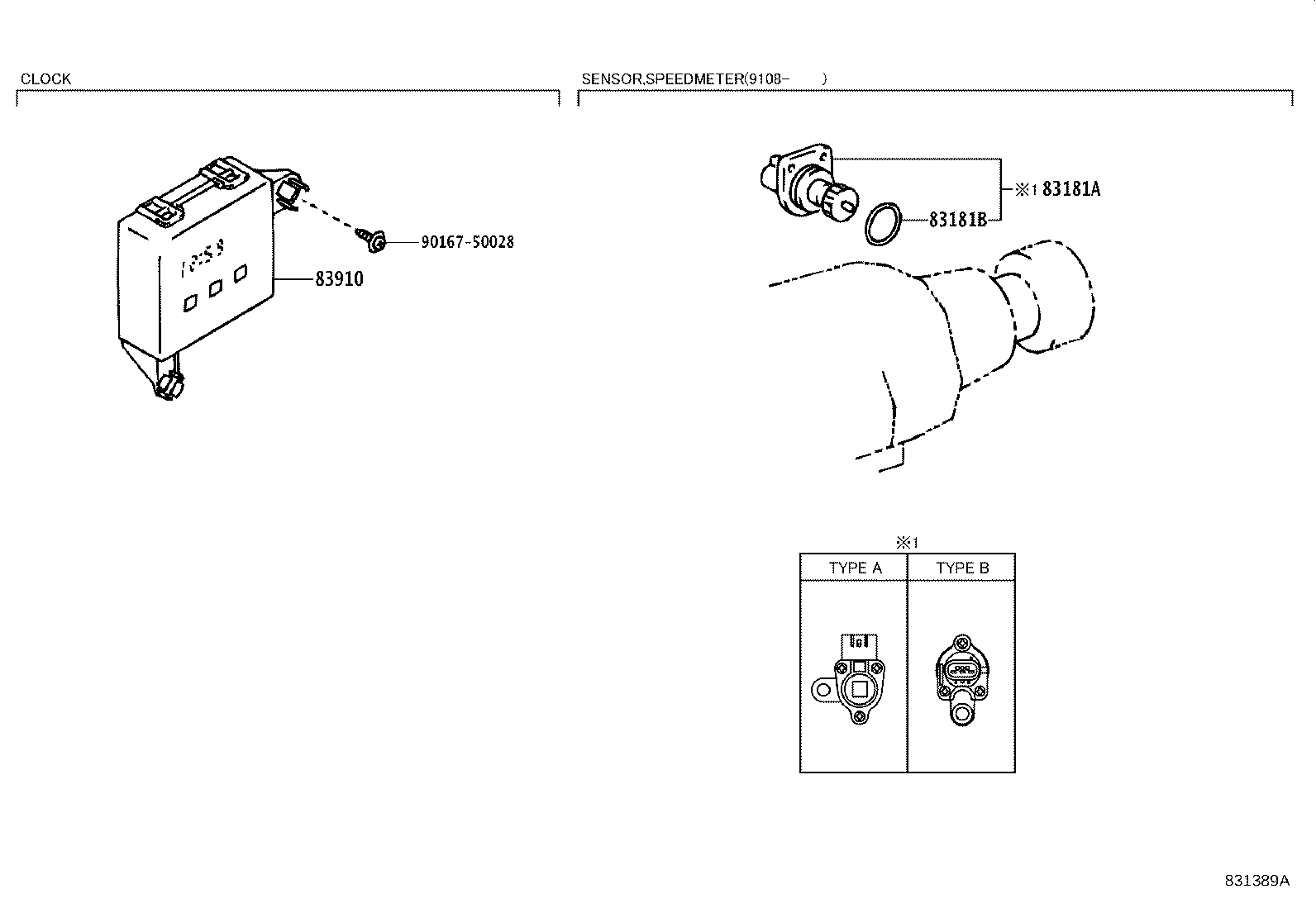

RN101L-TRMDEK (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-89107 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 90167-50028 | ||||

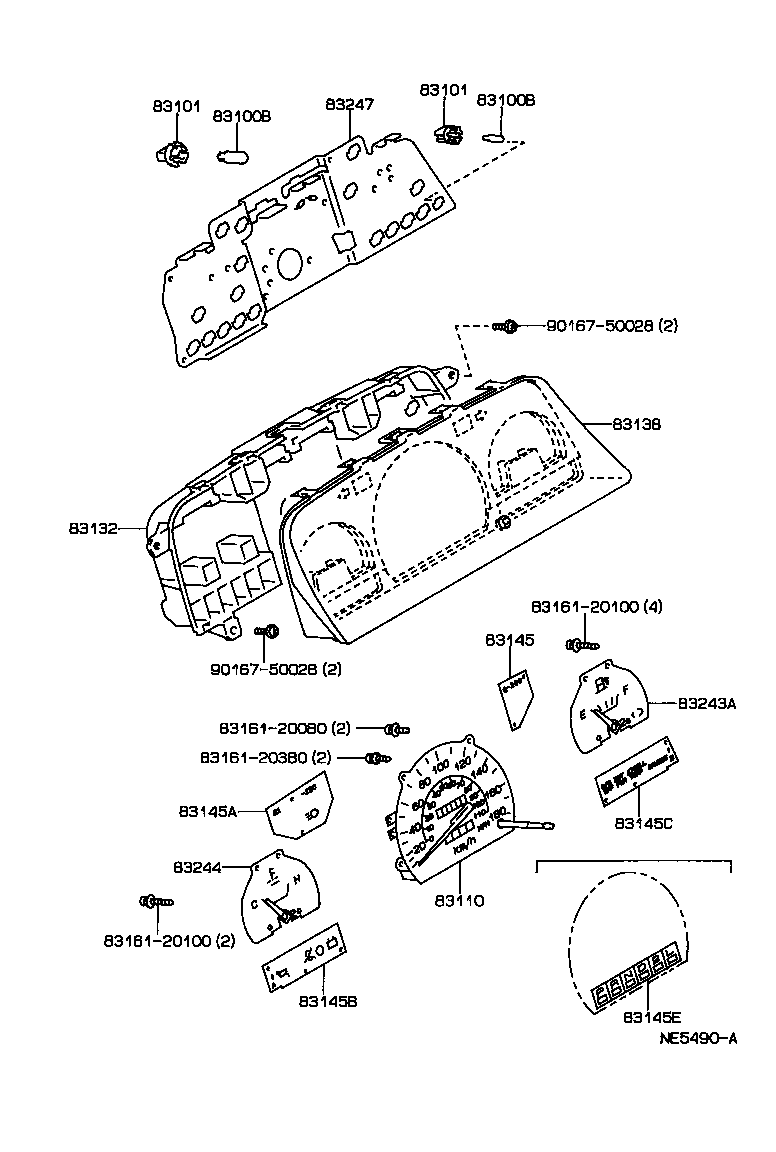

ILLUST NO. 1 OF 3(8808- )RN10#,110,VZN10#,110
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN10#,110..W..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN10#,110..W..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN10#,110..W..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX..CND 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN10#,110..W..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX..CND 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89301 |
RN10#,110..5F..CND |
1 | ||
| 83110-89319 |
RN10#,110..5F..CND W(TRIP METER & TACHOMETER) |
1 | ||
| 83110-89302 |
RN10#,110..5F..CND W(TRIP METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89504 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83132-89502 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89508 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83138-89524 |
RN10#,110,VZN10#,110..5F..DLX..CND W(TRIP METER) |
1 | ||
| 83138-89518 |
RN10#,110,VZN10#,110..5F..DLX..CND |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89504 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83145-89546 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89502 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89548 |
RN10#,110..G..DLX..USA;RN10#,110,VZN10#,110..(R,W)..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145-89506 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89550 |
RN10#,110..W..CND;RN101,110,13#..SR5;VZN110,13#..4FC..SR5 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89508 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83243-89504 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89508 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83244-89504 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89534 |
RN10#,110,VZN10#,110..5F..DLX |
1 | ||
| 83247-89512 |
RN10#,110..W..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 90167-50028 | ||||

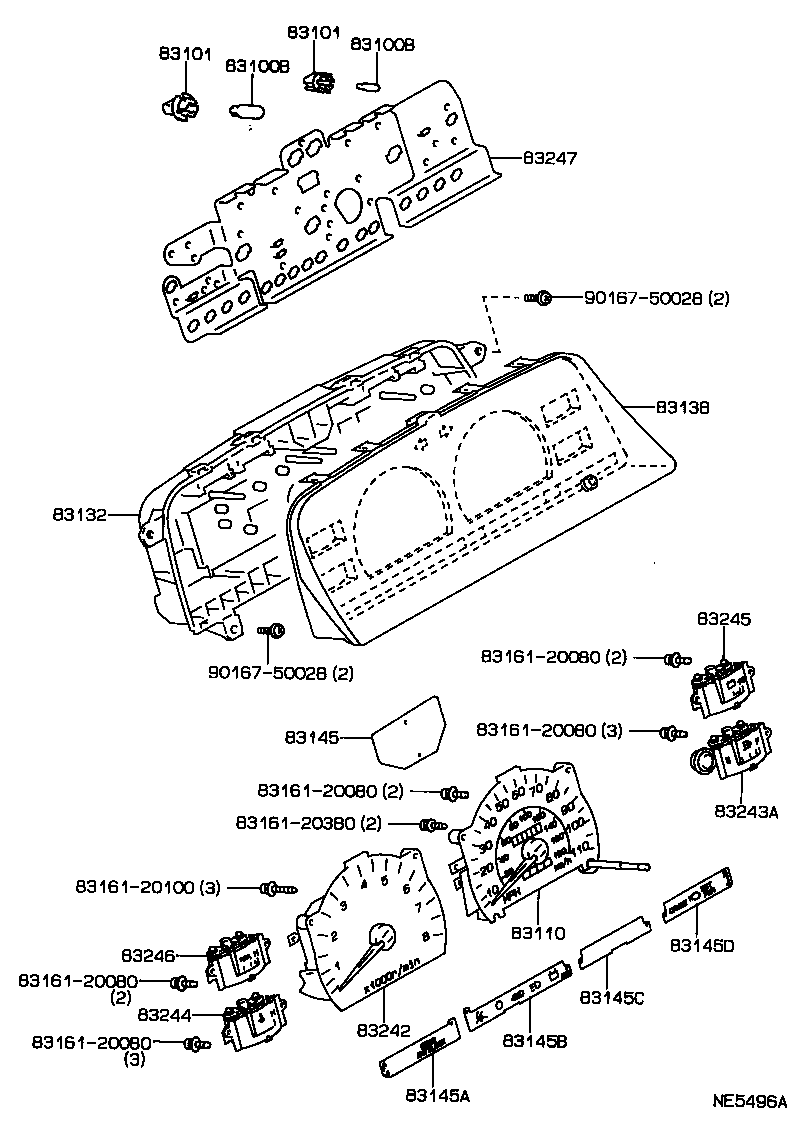

ILLUST NO. 1 OF 3(8808- )RN10#,VZN10#..5F ; (8808- )RN110,VZN110..5F..DLX ; (8808- )RN110,1
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN10#,110..W..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN10#,110..W..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W |
11 | ||
| 99132-12034 |
RN10#,110,VZN10#,110..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN10#,110..W..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX..CND 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN10#,110..W..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX..CND 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89301 |
RN10#,110..5F..CND |
1 | ||
| 83110-89319 |
RN10#,110..5F..CND W(TRIP METER & TACHOMETER) |
1 | ||
| 83110-89302 |
RN10#,110..5F..CND W(TRIP METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89504 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83132-89502 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89508 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83138-89524 |
RN10#,110,VZN10#,110..5F..DLX..CND W(TRIP METER) |
1 | ||
| 83138-89518 |
RN10#,110,VZN10#,110..5F..DLX..CND |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89504 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83145-89546 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89502 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89548 |
RN10#,110..G..DLX..USA;RN10#,110,VZN10#,110..(R,W)..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145-89506 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89550 |
RN10#,110..W..CND;RN101,110,13#..SR5;VZN110,13#..4FC..SR5 |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89552 |
RN10#,VZN10#..5F;RN110,VZN110..5F..DLX;RN110,13#,VZN110,13#..SR5 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-89504 |
RN106..W..CND;RN101,110,131..CND |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89508 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83243-89504 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89508 |
RN10#,110,VZN10#,110..DLX |
1 | ||
| 83244-89504 |
RN10#,110,VZN10#,110..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83245 - GAUGE SUB-ASSY, VOLT | ||||
| 83245-89502 |
RN10#,VZN10#..5F;RN110,VZN110..5F..DLX;RN110,13#,VZN110,13#..SR5 |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-89502 |
RN10#,VZN10#..5F;RN110,VZN110..5F..DLX;RN110,13#,VZN110,13#..SR5 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89534 |
RN10#,110,VZN10#,110..5F..DLX |
1 | ||
| 83247-89512 |
RN10#,110..W..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 90167-50028 | ||||
ILLUST NO. 2 OF 3(8808-9108) ; (9408- )
SPEEDOMETER DRIVE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89188 |
RN10#,110,13#..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89188 |
RN10#,110,13#..5F |
1 | ||
| Common parts | ||||
| 83791-89104 | ||||
| 83791-89107 | ||||
| 83791-89108 | ||||
| 90119-06110 | ||||
| 90179-06161 | ||||
