RN101L-TRMDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )R

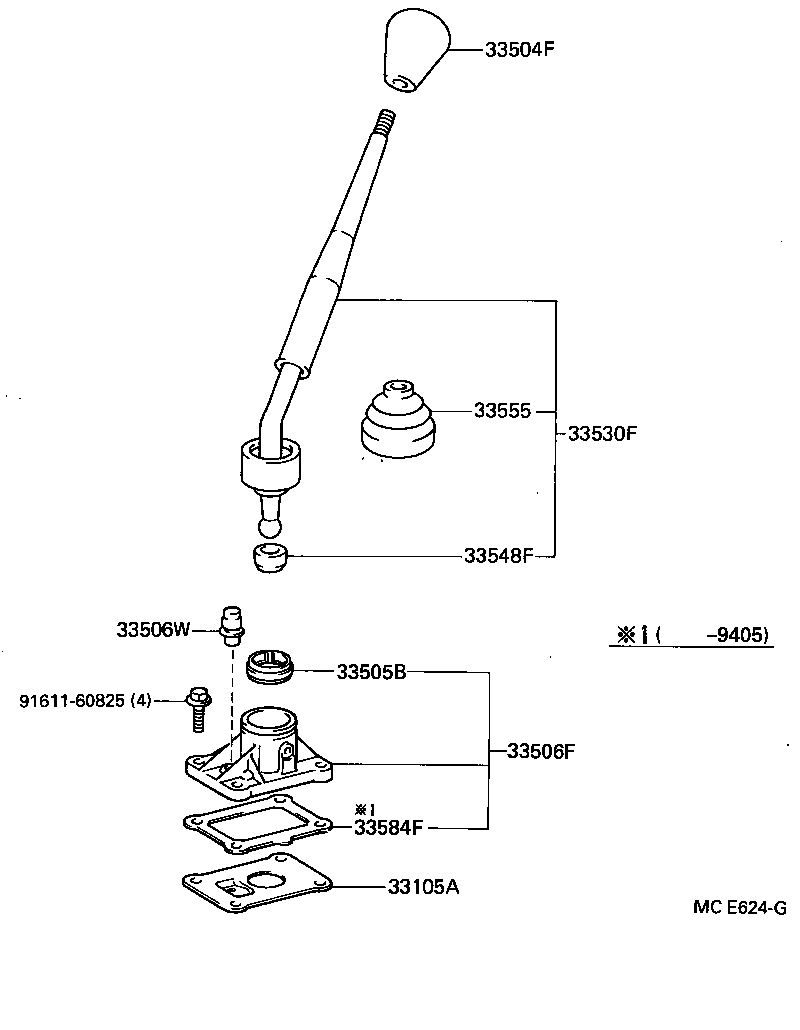

Click highlighted areas on diagram

diagram 33105A 33504F 33505B 33506F 33506W 33530F 33548F 33555 33584F 9161160825
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33105-60010

RN10#,110,13#,VZN10#,110,13#..G,R

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1405001

RN10#,110,VZN10#,110..5F..DLX

BLACK,TRIM1#,3#,4#,8#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-35040

RN10#,110,13#..W

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35150

RN10#,110,13#..W

 1
33530-35190

RN10#,110,13#,VZN10#,110,13#..G,R

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

RN10#,110,13#,VZN10#,110,13#..5F

 1
33555 - BOOT, SHIFT LEVER
33555-60030

RN10#,110,13#,VZN10#,110,13#..G,R

 1
33555-35040

RN10#,110,13#..W

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-60010

RN10#,110,13#,VZN10#,110,13#..G,R

 1
Common parts
91611-60825

(8808-9501)W

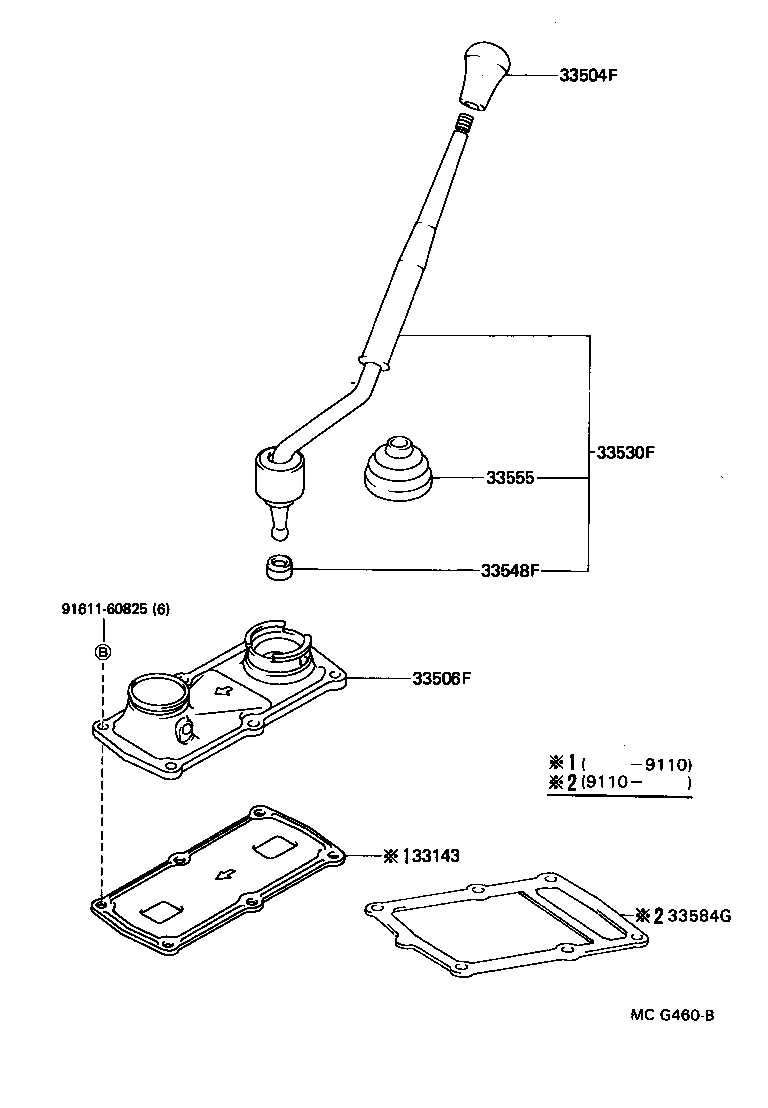

Click highlighted areas on diagram

diagram 33143 33504F 33506F 33530F 33548F 33555 33584G 9161160825
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-35040

RN10#,110,13#..W

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1405001

RN10#,110,VZN10#,110..5F..DLX

BLACK,TRIM1#,3#,4#,8#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-35040

RN10#,110,13#..W

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35150

RN10#,110,13#..W

 1
33530-35190

RN10#,110,13#,VZN10#,110,13#..G,R

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

RN10#,110,13#,VZN10#,110,13#..5F

 1
33555 - BOOT, SHIFT LEVER
33555-60030

RN10#,110,13#,VZN10#,110,13#..G,R

 1
33555-35040

RN10#,110,13#..W

 1
Common parts
91611-60825
