RN101L-TRLDEA (1990)
Toyota 4-Runner Truck (Jpp)
(8808-9511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

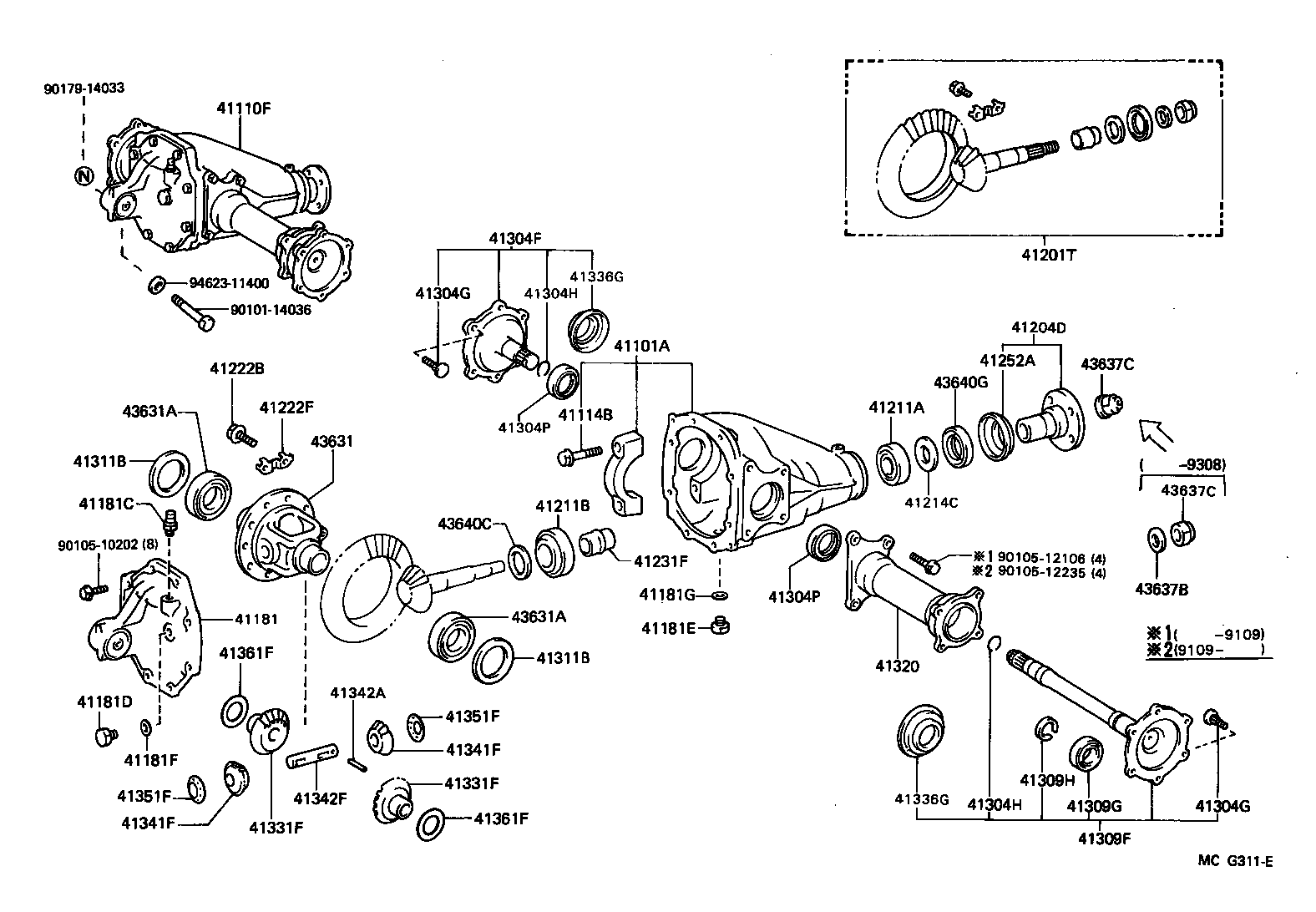

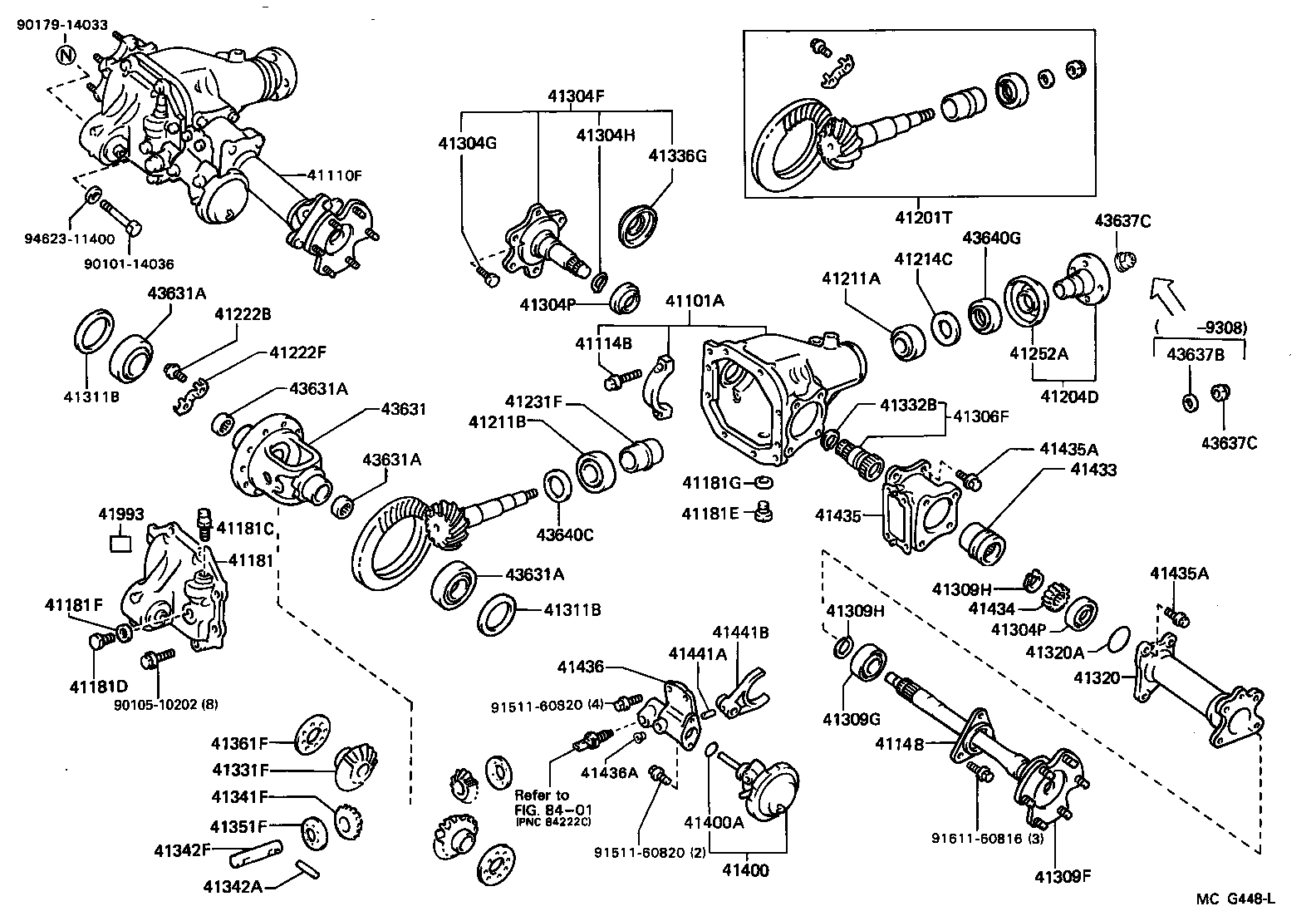

| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-35060 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-35440 |
RN101,110,13#..G;VZN100,110,13#..SR5 *FGR=41:10=4.100 |
1 | ||
| 41110-35350 |
VZN110..4FC..DLX;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA *FGR=41:10=4.100 |
1 | ||
| 41110-35440 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND *FGR=41:10=4.100 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
RN10#,110,13#,VZN10#,110,13# |
4 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41108-35020 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41181C - PLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181D - PLUG (FOR FRONT DIFFERENTIAL FILLER) | ||||
| 90341-18006 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-39716 |
VZN105,110,13#;RN10#,110,13#,VZN100..5F *FGR=41:10=4.100 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35050 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30022 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-35023 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-35020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RN10#,110,13#,VZN10#,110,13# |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
RN10#,110,13#,VZN10#,110,13# |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-30010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41304-35020 |
RN101,110..G;VZN100,110..SR5 |
1 | ||
| 41304G - BOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-12011 |
RN10#,110,13#,VZN10#,110,13# |
12 | ||
| 41304G - BOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-12011 |
RN10#,110,13#,VZN10#,110,13# |
12 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90521-29002 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90521-29002 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41309F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-35020 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41309-35020 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND |
1 | ||
| 41309G - BEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90369-36009 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41309H - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-33008 |
RN101,110,13#..G;VZN100,110,13#..SR5 OUTER |
1 | ||
| 96152-00280 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
1 | ||
| 96152-00280 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND INNER |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-50004 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.61 |
2 | ||
| 90201-50005 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.64 |
2 | ||
| 90201-50010 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.79 |
2 | ||
| 90201-50007 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.70 |
2 | ||
| 90201-50008 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.73 |
2 | ||
| 90201-50013 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.88 |
2 | ||
| 90201-50017 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.00 |
2 | ||
| 90201-50012 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.85 |
2 | ||
| 90201-50009 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.76 |
2 | ||
| 90201-50014 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.91 |
2 | ||
| 90201-50018 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.03 |
2 | ||
| 90201-50015 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.94 |
2 | ||
| 90201-50011 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.82 |
2 | ||
| 90201-50019 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.06 |
2 | ||
| 90201-50024 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.21 |
2 | ||
| 90201-50020 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.09 |
2 | ||
| 90201-50022 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.15 |
2 | ||
| 90201-50025 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.24 |
2 | ||
| 90201-50016 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.97 |
2 | ||
| 90201-50021 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.12 |
2 | ||
| 90201-50023 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.18 |
2 | ||
| 90201-50003 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.58 |
2 | ||
| 90201-50009 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.76 |
2 | ||
| 90201-50005 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.64 |
2 | ||
| 90201-50006 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.67 |
2 | ||
| 90201-50004 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.61 |
2 | ||
| 90201-50007 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.70 |
2 | ||
| 90201-50008 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.73 |
2 | ||
| 90201-50010 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.79 |
2 | ||
| 90201-50011 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.82 |
2 | ||
| 90201-50012 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.85 |
2 | ||
| 90201-50017 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.00 |
2 | ||
| 90201-50016 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.97 |
2 | ||
| 90201-50014 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.91 |
2 | ||
| 90201-50020 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.09 |
2 | ||
| 90201-50013 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.88 |
2 | ||
| 90201-50015 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.94 |
2 | ||
| 90201-50019 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.06 |
2 | ||
| 90201-50021 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.12 |
2 | ||
| 90201-50018 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.03 |
2 | ||
| 90201-50022 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.15 |
2 | ||
| 90201-65009 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.64 |
2 | ||
| 90201-50025 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.24 |
2 | ||
| 90201-50024 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.21 |
2 | ||
| 90201-65011 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.70 |
2 | ||
| 90201-50023 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.18 |
2 | ||
| 90201-65012 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.73 |
2 | ||
| 90201-65010 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.67 |
2 | ||
| 90201-65018 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.91 |
2 | ||
| 90201-65008 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.61 |
2 | ||
| 90201-65017 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.88 |
2 | ||
| 90201-65021 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.00 |
2 | ||
| 90201-65014 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.79 |
2 | ||
| 90201-65025 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.12 |
2 | ||
| 90201-65024 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.09 |
2 | ||
| 90201-65019 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.94 |
2 | ||
| 90201-65020 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.97 |
2 | ||
| 90201-65013 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.76 |
2 | ||
| 90201-65022 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.03 |
2 | ||
| 90201-65015 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.82 |
2 | ||
| 90201-65007 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.58 |
2 | ||
| 90201-65026 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.15 |
2 | ||
| 90201-65027 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.18 |
2 | ||
| 90201-65016 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.85 |
2 | ||
| 90201-65028 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.21 |
2 | ||
| 90201-65029 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.24 |
2 | ||
| 90201-65023 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.06 |
2 | ||
| 90201-50003 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.58 |
2 | ||
| 90201-50006 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.67 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-50004 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.61 |
2 | ||
| 90201-50005 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.64 |
2 | ||
| 90201-50010 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.79 |
2 | ||
| 90201-50007 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.70 |
2 | ||
| 90201-50008 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.73 |
2 | ||
| 90201-50013 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.88 |
2 | ||
| 90201-50017 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.00 |
2 | ||
| 90201-50012 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.85 |
2 | ||
| 90201-50009 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.76 |
2 | ||
| 90201-50014 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.91 |
2 | ||
| 90201-50018 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.03 |
2 | ||
| 90201-50015 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.94 |
2 | ||
| 90201-50011 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.82 |
2 | ||
| 90201-50019 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.06 |
2 | ||
| 90201-50024 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.21 |
2 | ||
| 90201-50020 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.09 |
2 | ||
| 90201-50022 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.15 |
2 | ||
| 90201-50025 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.24 |
2 | ||
| 90201-50016 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.97 |
2 | ||
| 90201-50021 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.12 |
2 | ||
| 90201-50023 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.18 |
2 | ||
| 90201-50003 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.58 |
2 | ||
| 90201-50009 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.76 |
2 | ||
| 90201-50005 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.64 |
2 | ||
| 90201-50006 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.67 |
2 | ||
| 90201-50004 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.61 |
2 | ||
| 90201-50007 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.70 |
2 | ||
| 90201-50008 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.73 |
2 | ||
| 90201-50010 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.79 |
2 | ||
| 90201-50011 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.82 |
2 | ||
| 90201-50012 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.85 |
2 | ||
| 90201-50017 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.00 |
2 | ||
| 90201-50016 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.97 |
2 | ||
| 90201-50014 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.91 |
2 | ||
| 90201-50020 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.09 |
2 | ||
| 90201-50013 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.88 |
2 | ||
| 90201-50015 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.94 |
2 | ||
| 90201-50019 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.06 |
2 | ||
| 90201-50021 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.12 |
2 | ||
| 90201-50018 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.03 |
2 | ||
| 90201-50022 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.15 |
2 | ||
| 90201-65009 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.64 |
2 | ||
| 90201-50025 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.24 |
2 | ||
| 90201-50024 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.21 |
2 | ||
| 90201-65011 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.70 |
2 | ||
| 90201-50023 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.18 |
2 | ||
| 90201-65012 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.73 |
2 | ||
| 90201-65010 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.67 |
2 | ||
| 90201-65018 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.91 |
2 | ||
| 90201-65008 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.61 |
2 | ||
| 90201-65017 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.88 |
2 | ||
| 90201-65021 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.00 |
2 | ||
| 90201-65014 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.79 |
2 | ||
| 90201-65025 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.12 |
2 | ||
| 90201-65024 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.09 |
2 | ||
| 90201-65019 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.94 |
2 | ||
| 90201-65020 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.97 |
2 | ||
| 90201-65013 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.76 |
2 | ||
| 90201-65022 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.03 |
2 | ||
| 90201-65015 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.82 |
2 | ||
| 90201-65007 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.58 |
2 | ||
| 90201-65026 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.15 |
2 | ||
| 90201-65027 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.18 |
2 | ||
| 90201-65016 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.85 |
2 | ||
| 90201-65028 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.21 |
2 | ||
| 90201-65029 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.24 |
2 | ||
| 90201-65023 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.06 |
2 | ||
| 90201-50003 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.58 |
2 | ||
| 90201-50006 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.67 |
2 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-35020 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41320-35010 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-14040 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-14040 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5 LH |
1 | ||
| 41336-22010 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5 LH |
1 | ||
| 41336-22010 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-22020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30040 |
RN10#,110,13#,VZN10#,110,13# T=1.0 |
2 | ||
| 41361-30070 |
RN10#,110,13#,VZN10#,110,13# T=1.3 |
2 | ||
| 41361-30060 |
RN10#,110,13#,VZN10#,110,13# T=1.2 |
2 | ||
| 41361-30080 |
RN10#,110,13#,VZN10#,110,13# T=1.4 |
2 | ||
| 41361-30100 |
RN10#,110,13#,VZN10#,110,13# T=1.6 |
2 | ||
| 41361-30090 |
RN10#,110,13#,VZN10#,110,13# T=1.5 |
2 | ||
| 41361-30050 |
RN10#,110,13#,VZN10#,110,13# T=1.1 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30040 |
RN10#,110,13#,VZN10#,110,13# T=1.0 |
2 | ||
| 41361-30070 |
RN10#,110,13#,VZN10#,110,13# T=1.3 |
2 | ||
| 41361-30060 |
RN10#,110,13#,VZN10#,110,13# T=1.2 |
2 | ||
| 41361-30080 |
RN10#,110,13#,VZN10#,110,13# T=1.4 |
2 | ||
| 41361-30100 |
RN10#,110,13#,VZN10#,110,13# T=1.6 |
2 | ||
| 41361-30090 |
RN10#,110,13#,VZN10#,110,13# T=1.5 |
2 | ||
| 41361-30050 |
RN10#,110,13#,VZN10#,110,13# T=1.1 |
2 | ||
| 43631 - CASE, FRONT AXLE DIFFERENTIAL | ||||
| 41311-35060 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90364-33009 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
2 | ||
| 90368-50006 |
RN10#,110,13#,VZN10#,110,13# OUTER |
2 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90364-33009 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
2 | ||
| 90368-50006 |
RN10#,110,13#,VZN10#,110,13# OUTER |
2 | ||
| 43637B - WASHER, PLATE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90201-18485 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90179-18001 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90179-18001 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 43640C - SPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST | ||||
| 90201-35396 |
RN10#,110,13#,VZN10#,110,13# T=2.36,MARK 05 |
1 | ||
| 90201-35435 |
RN10#,110,13#,VZN10#,110,13# T=2.27,MARK 02 |
1 | ||
| 90201-35398 |
RN10#,110,13#,VZN10#,110,13# T=2.42,MARK 07 |
1 | ||
| 90201-35434 |
RN10#,110,13#,VZN10#,110,13# T=2.24,MARK 01 |
1 | ||
| 90201-35436 |
RN10#,110,13#,VZN10#,110,13# T=2.30,MARK 03 |
1 | ||
| 90201-35400 |
RN10#,110,13#,VZN10#,110,13# T=2.48,MARK 09 |
1 | ||
| 90201-35397 |
RN10#,110,13#,VZN10#,110,13# T=2.39,MARK 06 |
1 | ||
| 90201-35401 |
RN10#,110,13#,VZN10#,110,13# T=2.51,MARK 10 |
1 | ||
| 90201-35437 |
RN10#,110,13#,VZN10#,110,13# T=2.33,MARK 04 |
1 | ||
| 90201-35441 |
RN10#,110,13#,VZN10#,110,13# T=2.72,MARK 17 |
1 | ||
| 90201-35438 |
RN10#,110,13#,VZN10#,110,13# T=2.63,MARK 14 |
1 | ||
| 90201-35440 |
RN10#,110,13#,VZN10#,110,13# T=2.69,MARK 16 |
1 | ||
| 90201-35403 |
RN10#,110,13#,VZN10#,110,13# T=2.57,MARK 12 |
1 | ||
| 90201-35399 |
RN10#,110,13#,VZN10#,110,13# T=2.43,MARK 08 |
1 | ||
| 90201-35402 |
RN10#,110,13#,VZN10#,110,13# T=2.54,MARK 11 |
1 | ||
| 90201-35404 |
RN10#,110,13#,VZN10#,110,13# T=2.60,MARK 13 |
1 | ||
| 90201-35439 |
RN10#,110,13#,VZN10#,110,13# T=2.66,MARK 15 |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 90101-14036 | ||||
| 90105-10202 | ||||
| 90105-12106 | ||||
| 90105-12235 | ||||
| 90179-14033 | ||||
| 94623-11400 | ||||
ILLUST NO. 1 OF 2(8808-9511)
AUTOMATIC DISCONNECTING DIFF.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-35060 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-35440 |
RN101,110,13#..G;VZN100,110,13#..SR5 *FGR=41:10=4.100 |
1 | ||
| 41110-35350 |
VZN110..4FC..DLX;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA *FGR=41:10=4.100 |
1 | ||
| 41110-35440 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND *FGR=41:10=4.100 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
RN10#,110,13#,VZN10#,110,13# |
4 | ||
| 41148 - RETAINER, DIFFERENTIAL BEARING | ||||
| 41148-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41108-35020 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41181C - PLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181D - PLUG (FOR FRONT DIFFERENTIAL FILLER) | ||||
| 90341-18006 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-39716 |
VZN105,110,13#;RN10#,110,13#,VZN100..5F *FGR=41:10=4.100 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35050 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30022 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-35023 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-35020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RN10#,110,13#,VZN10#,110,13# |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
RN10#,110,13#,VZN10#,110,13# |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-30010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41304-35020 |
RN101,110..G;VZN100,110..SR5 |
1 | ||
| 41304G - BOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-12011 |
RN10#,110,13#,VZN10#,110,13# |
12 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90521-29002 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER | ||||
| 41306-35020 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
1 | ||
| 41306-35020 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41309F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-35020 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41309-35020 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND |
1 | ||
| 41309G - BEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90369-36009 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41309H - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-33008 |
RN101,110,13#..G;VZN100,110,13#..SR5 OUTER |
1 | ||
| 96152-00280 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
1 | ||
| 96152-00280 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND INNER |
1 | ||
| 41309H - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-33008 |
RN101,110,13#..G;VZN100,110,13#..SR5 OUTER |
1 | ||
| 96152-00280 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
1 | ||
| 96152-00280 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND INNER |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-50004 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.61 |
2 | ||
| 90201-50005 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.64 |
2 | ||
| 90201-50010 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.79 |
2 | ||
| 90201-50007 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.70 |
2 | ||
| 90201-50008 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.73 |
2 | ||
| 90201-50013 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.88 |
2 | ||
| 90201-50017 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.00 |
2 | ||
| 90201-50012 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.85 |
2 | ||
| 90201-50009 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.76 |
2 | ||
| 90201-50014 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.91 |
2 | ||
| 90201-50018 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.03 |
2 | ||
| 90201-50015 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.94 |
2 | ||
| 90201-50011 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.82 |
2 | ||
| 90201-50019 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.06 |
2 | ||
| 90201-50024 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.21 |
2 | ||
| 90201-50020 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.09 |
2 | ||
| 90201-50022 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.15 |
2 | ||
| 90201-50025 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.24 |
2 | ||
| 90201-50016 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.97 |
2 | ||
| 90201-50021 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.12 |
2 | ||
| 90201-50023 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.18 |
2 | ||
| 90201-50003 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.58 |
2 | ||
| 90201-50009 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.76 |
2 | ||
| 90201-50005 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.64 |
2 | ||
| 90201-50006 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.67 |
2 | ||
| 90201-50004 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.61 |
2 | ||
| 90201-50007 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.70 |
2 | ||
| 90201-50008 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.73 |
2 | ||
| 90201-50010 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.79 |
2 | ||
| 90201-50011 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.82 |
2 | ||
| 90201-50012 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.85 |
2 | ||
| 90201-50017 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.00 |
2 | ||
| 90201-50016 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.97 |
2 | ||
| 90201-50014 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.91 |
2 | ||
| 90201-50020 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.09 |
2 | ||
| 90201-50013 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.88 |
2 | ||
| 90201-50015 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.94 |
2 | ||
| 90201-50019 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.06 |
2 | ||
| 90201-50021 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.12 |
2 | ||
| 90201-50018 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.03 |
2 | ||
| 90201-50022 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.15 |
2 | ||
| 90201-65009 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.64 |
2 | ||
| 90201-50025 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.24 |
2 | ||
| 90201-50024 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.21 |
2 | ||
| 90201-65011 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.70 |
2 | ||
| 90201-50023 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.18 |
2 | ||
| 90201-65012 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.73 |
2 | ||
| 90201-65010 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.67 |
2 | ||
| 90201-65018 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.91 |
2 | ||
| 90201-65008 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.61 |
2 | ||
| 90201-65017 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.88 |
2 | ||
| 90201-65021 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.00 |
2 | ||
| 90201-65014 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.79 |
2 | ||
| 90201-65025 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.12 |
2 | ||
| 90201-65024 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.09 |
2 | ||
| 90201-65019 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.94 |
2 | ||
| 90201-65020 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.97 |
2 | ||
| 90201-65013 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.76 |
2 | ||
| 90201-65022 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.03 |
2 | ||
| 90201-65015 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.82 |
2 | ||
| 90201-65007 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.58 |
2 | ||
| 90201-65026 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.15 |
2 | ||
| 90201-65027 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.18 |
2 | ||
| 90201-65016 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.85 |
2 | ||
| 90201-65028 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.21 |
2 | ||
| 90201-65029 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.24 |
2 | ||
| 90201-65023 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.06 |
2 | ||
| 90201-50003 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.58 |
2 | ||
| 90201-50006 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.67 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-50004 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.61 |
2 | ||
| 90201-50005 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.64 |
2 | ||
| 90201-50010 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.79 |
2 | ||
| 90201-50007 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.70 |
2 | ||
| 90201-50008 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.73 |
2 | ||
| 90201-50013 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.88 |
2 | ||
| 90201-50017 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.00 |
2 | ||
| 90201-50012 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.85 |
2 | ||
| 90201-50009 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.76 |
2 | ||
| 90201-50014 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.91 |
2 | ||
| 90201-50018 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.03 |
2 | ||
| 90201-50015 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.94 |
2 | ||
| 90201-50011 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.82 |
2 | ||
| 90201-50019 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.06 |
2 | ||
| 90201-50024 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.21 |
2 | ||
| 90201-50020 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.09 |
2 | ||
| 90201-50022 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.15 |
2 | ||
| 90201-50025 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.24 |
2 | ||
| 90201-50016 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.97 |
2 | ||
| 90201-50021 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.12 |
2 | ||
| 90201-50023 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=3.18 |
2 | ||
| 90201-50003 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.58 |
2 | ||
| 90201-50009 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.76 |
2 | ||
| 90201-50005 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.64 |
2 | ||
| 90201-50006 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.67 |
2 | ||
| 90201-50004 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.61 |
2 | ||
| 90201-50007 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.70 |
2 | ||
| 90201-50008 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.73 |
2 | ||
| 90201-50010 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.79 |
2 | ||
| 90201-50011 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.82 |
2 | ||
| 90201-50012 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.85 |
2 | ||
| 90201-50017 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.00 |
2 | ||
| 90201-50016 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.97 |
2 | ||
| 90201-50014 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.91 |
2 | ||
| 90201-50020 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.09 |
2 | ||
| 90201-50013 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.88 |
2 | ||
| 90201-50015 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=2.94 |
2 | ||
| 90201-50019 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.06 |
2 | ||
| 90201-50021 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.12 |
2 | ||
| 90201-50018 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.03 |
2 | ||
| 90201-50022 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.15 |
2 | ||
| 90201-65009 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.64 |
2 | ||
| 90201-50025 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.24 |
2 | ||
| 90201-50024 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.21 |
2 | ||
| 90201-65011 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.70 |
2 | ||
| 90201-50023 |
VZN110,13#..SR5;RN10#,110,130..G;VZN110..R..DLX..CND;RN131,VZN100..5F..CND T=3.18 |
2 | ||
| 90201-65012 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.73 |
2 | ||
| 90201-65010 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.67 |
2 | ||
| 90201-65018 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.91 |
2 | ||
| 90201-65008 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.61 |
2 | ||
| 90201-65017 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.88 |
2 | ||
| 90201-65021 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.00 |
2 | ||
| 90201-65014 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.79 |
2 | ||
| 90201-65025 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.12 |
2 | ||
| 90201-65024 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.09 |
2 | ||
| 90201-65019 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.94 |
2 | ||
| 90201-65020 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.97 |
2 | ||
| 90201-65013 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.76 |
2 | ||
| 90201-65022 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.03 |
2 | ||
| 90201-65015 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.82 |
2 | ||
| 90201-65007 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.58 |
2 | ||
| 90201-65026 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.15 |
2 | ||
| 90201-65027 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.18 |
2 | ||
| 90201-65016 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=2.85 |
2 | ||
| 90201-65028 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.21 |
2 | ||
| 90201-65029 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.24 |
2 | ||
| 90201-65023 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA T=3.06 |
2 | ||
| 90201-50003 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.58 |
2 | ||
| 90201-50006 |
RN101,110,13#..G;VZN100,110,13#..SR5 T=2.67 |
2 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-35020 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 41320-35010 |
VZN110..4FC..DLX;RN101,110,13#..4FC;VZN110..R..DLX..USA;RN10#,110,130,VZN10#..(R,W)..USA |
1 | ||
| 41320A - RING, O (FOR FRONT DIFFERENTIAL TUBE) | ||||
| 90301-68003 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-14040 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41332B - RING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT | ||||
| 90521-29002 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5 LH |
1 | ||
| 41336-22010 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-22020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30040 |
RN10#,110,13#,VZN10#,110,13# T=1.0 |
2 | ||
| 41361-30070 |
RN10#,110,13#,VZN10#,110,13# T=1.3 |
2 | ||
| 41361-30060 |
RN10#,110,13#,VZN10#,110,13# T=1.2 |
2 | ||
| 41361-30080 |
RN10#,110,13#,VZN10#,110,13# T=1.4 |
2 | ||
| 41361-30100 |
RN10#,110,13#,VZN10#,110,13# T=1.6 |
2 | ||
| 41361-30090 |
RN10#,110,13#,VZN10#,110,13# T=1.5 |
2 | ||
| 41361-30050 |
RN10#,110,13#,VZN10#,110,13# T=1.1 |
2 | ||
| 41400 - ACTUATOR ASSY, DIFFERENTIAL VACUUM | ||||
| 41400-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41400A - RING, O (FOR DIFFERENTIAL VACUUM ACTUATOR) | ||||
| 90301-29008 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41433 - SLEEVE, DIFFERENTIAL CLUTCH | ||||
| 41433-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41434 - HUB, DIFFERENTIAL CLUTCH | ||||
| 41434-35010 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
1 | ||
| 41434-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41435 - CASE, DIFFERENTIAL CLUTCH | ||||
| 41435-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90109-12028 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *12-1.25PX85-30,*12-1.25PX85-30 |
2 | ||
| 90109-12029 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *12-1.25PX20-14.5,*12-1.25PX20-14.5 |
4 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90109-12028 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *12-1.25PX85-30,*12-1.25PX85-30 |
2 | ||
| 90109-12029 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *12-1.25PX20-14.5,*12-1.25PX20-14.5 |
4 | ||
| 41436 - COVER, FRONT DIFFERENTIAL CLUTCH CASE | ||||
| 41436-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41436A - PLUG (FOR FRONT DIFFERENTIAL CLUTCH CASE) | ||||
| 90341-10065 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41441A - PIN, SLOTTED SPRING (FOR DIFFERENTIAL SHIFT FORK) | ||||
| 90254-05016 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41441B - FORK, DIFFERENTIAL SHIFT | ||||
| 41441-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 43631 - CASE, FRONT AXLE DIFFERENTIAL | ||||
| 41311-35060 |
RN101,110,13#..G;VZN100,110,13#..SR5 |
1 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90364-33009 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
2 | ||
| 90368-50006 |
RN10#,110,13#,VZN10#,110,13# OUTER |
2 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90364-33009 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
2 | ||
| 90368-50006 |
RN10#,110,13#,VZN10#,110,13# OUTER |
2 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90364-33009 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
2 | ||
| 90368-50006 |
RN10#,110,13#,VZN10#,110,13# OUTER |
2 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90364-33009 |
RN101,110,13#..G;VZN100,110,13#..SR5 INNER |
2 | ||
| 90368-50006 |
RN10#,110,13#,VZN10#,110,13# OUTER |
2 | ||
| 43637B - WASHER, PLATE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90201-18485 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90179-18001 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90179-18001 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 43640C - SPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST | ||||
| 90201-35396 |
RN10#,110,13#,VZN10#,110,13# T=2.36,MARK 05 |
1 | ||
| 90201-35435 |
RN10#,110,13#,VZN10#,110,13# T=2.27,MARK 02 |
1 | ||
| 90201-35398 |
RN10#,110,13#,VZN10#,110,13# T=2.42,MARK 07 |
1 | ||
| 90201-35434 |
RN10#,110,13#,VZN10#,110,13# T=2.24,MARK 01 |
1 | ||
| 90201-35436 |
RN10#,110,13#,VZN10#,110,13# T=2.30,MARK 03 |
1 | ||
| 90201-35400 |
RN10#,110,13#,VZN10#,110,13# T=2.48,MARK 09 |
1 | ||
| 90201-35397 |
RN10#,110,13#,VZN10#,110,13# T=2.39,MARK 06 |
1 | ||
| 90201-35401 |
RN10#,110,13#,VZN10#,110,13# T=2.51,MARK 10 |
1 | ||
| 90201-35437 |
RN10#,110,13#,VZN10#,110,13# T=2.33,MARK 04 |
1 | ||
| 90201-35441 |
RN10#,110,13#,VZN10#,110,13# T=2.72,MARK 17 |
1 | ||
| 90201-35438 |
RN10#,110,13#,VZN10#,110,13# T=2.63,MARK 14 |
1 | ||
| 90201-35440 |
RN10#,110,13#,VZN10#,110,13# T=2.69,MARK 16 |
1 | ||
| 90201-35403 |
RN10#,110,13#,VZN10#,110,13# T=2.57,MARK 12 |
1 | ||
| 90201-35399 |
RN10#,110,13#,VZN10#,110,13# T=2.43,MARK 08 |
1 | ||
| 90201-35402 |
RN10#,110,13#,VZN10#,110,13# T=2.54,MARK 11 |
1 | ||
| 90201-35404 |
RN10#,110,13#,VZN10#,110,13# T=2.60,MARK 13 |
1 | ||
| 90201-35439 |
RN10#,110,13#,VZN10#,110,13# T=2.66,MARK 15 |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 90101-14036 | ||||
| 90105-10202 | ||||
| 90179-14033 | ||||
| 91511-60820 | ||||
| 91611-60816 | ||||
| 94623-11400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8808-9308)RN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41531C - TUBE, FRONT DIFFERENTIAL VACUUM | ||||
| 41531-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41531-35010 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
1 | ||
| 41531D - WAY, NO.1(FOR FRONT DIFFERENTIAL VACUUM HOSE) | ||||
| 90413-04016 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
1 | ||
| 90413-04016 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41531E - VALVE, CHECK(FOR FRONT DIFFERENTIAL VACUUM) | ||||
| 90917-10065 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 90917-10065 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
1 | ||
| 41531F - HOSE, FRONT DIFFERENTIAL VACUUM, NO.1 | ||||
| 90999-92002 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *H,L=300 |
1 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
2 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
1 | ||
| 90999-92002 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *H,L=300 |
2 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
1 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
2 | ||
| 41531F - HOSE, FRONT DIFFERENTIAL VACUUM, NO.1 | ||||
| 90999-92002 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *H,L=300 |
1 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
2 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
1 | ||
| 90999-92002 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *H,L=300 |
2 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
1 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
2 | ||
| 41531G - HOSE, FRONT DIFFERENTIAL VACUUM, NO.2 | ||||
| 90447-08030 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *H,L=130 |
1 | ||
| 90447-08029 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 L=90 |
1 | ||
| 90447-08030 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=130 |
1 | ||
| 90447-08029 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# L=90 |
1 | ||
| 41531G - HOSE, FRONT DIFFERENTIAL VACUUM, NO.2 | ||||
| 90447-08030 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *H,L=130 |
1 | ||
| 90447-08029 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 L=90 |
1 | ||
| 90447-08030 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=130 |
1 | ||
| 90447-08029 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# L=90 |
1 | ||
| 41531H - HOSE, FRONT DIFFERENTIAL VACUUM, NO.3 | ||||
| 90999-92002 |
RN101,110..G;RN101,110..4FC;RN106,13#,VZN100,110,13# *H,L=300 |
1 | ||
| 90999-92002 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# *H,L=300 |
1 | ||
| 90999-92002 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 *H,L=300 |
1 | ||
| 41531J - HOSE, FRONT DIFFERENTIAL VACUUM, NO.4 | ||||
| 90447-08031 |
RN131..G;RN10#,110,130..G..USA L=650 |
1 | ||
| 90447-08032 |
RN130..4FC;RN10#,110,13#..G L=800 |
1 | ||
| 90447-08032 |
RN10#,110,13#..G L=800 |
1 | ||
| 41541 - TANK, DIFFERENTIAL VACUUM | ||||
| 41541-35010 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
1 | ||
| 41541-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 41541A - HOSE (FOR DIFFRENTIAL VACUUM TANK) | ||||
| 90447-08022 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
2 | ||
| 90447-08022 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
2 | ||
| 41541A - HOSE (FOR DIFFRENTIAL VACUUM TANK) | ||||
| 90447-08022 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
2 | ||
| 90447-08022 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
2 | ||
| 41551A - GROMMET, FRONT DIFFERENTIAL VACUUM | ||||
| 41551-35010 |
RN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13# |
1 | ||
| 41551-35010 |
RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5 |
1 | ||
| 42599 - HOSE, VACUUM DISCONNECTING DIFFERENTIAL | ||||
| 42599-35020 |
RN101,110,13#..G;RN110,13#..4FC..SR5 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-22010 | ||||
| 90119-08413 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00085 | ||||
| 90467-11054 | ||||
| 90949-01464 | ||||
| 90949-01506 | ||||
| 90949-01520 | ||||
| 90949-01731 | ||||
| 91661-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
